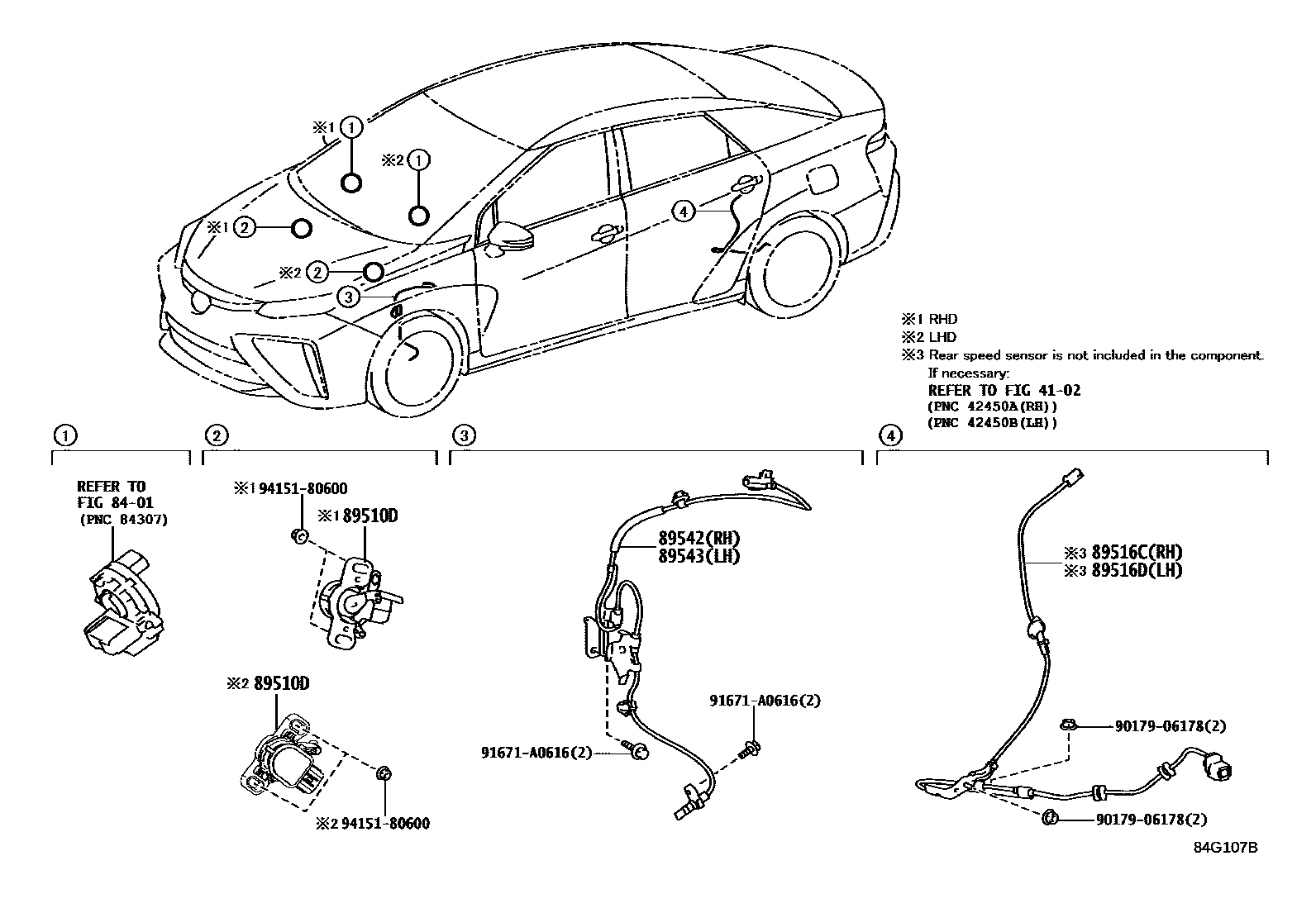

ABS & VSC

4102

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-20041iJPD10..RHD201506-202005

main89510-47050iJPD10..LHD201506-202005

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-12070iJPD10201506-202005

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-12080iJPD10201506-202005

89542SENSOR, SPEED, FRONT RH

main89542-12080iJPD10201506-202005

89543SENSOR, SPEED, FRONT LH

main89543-12080iJPD10201506-202005

9017906178

main90179-06178

91671A0616

main91671-A0616

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
