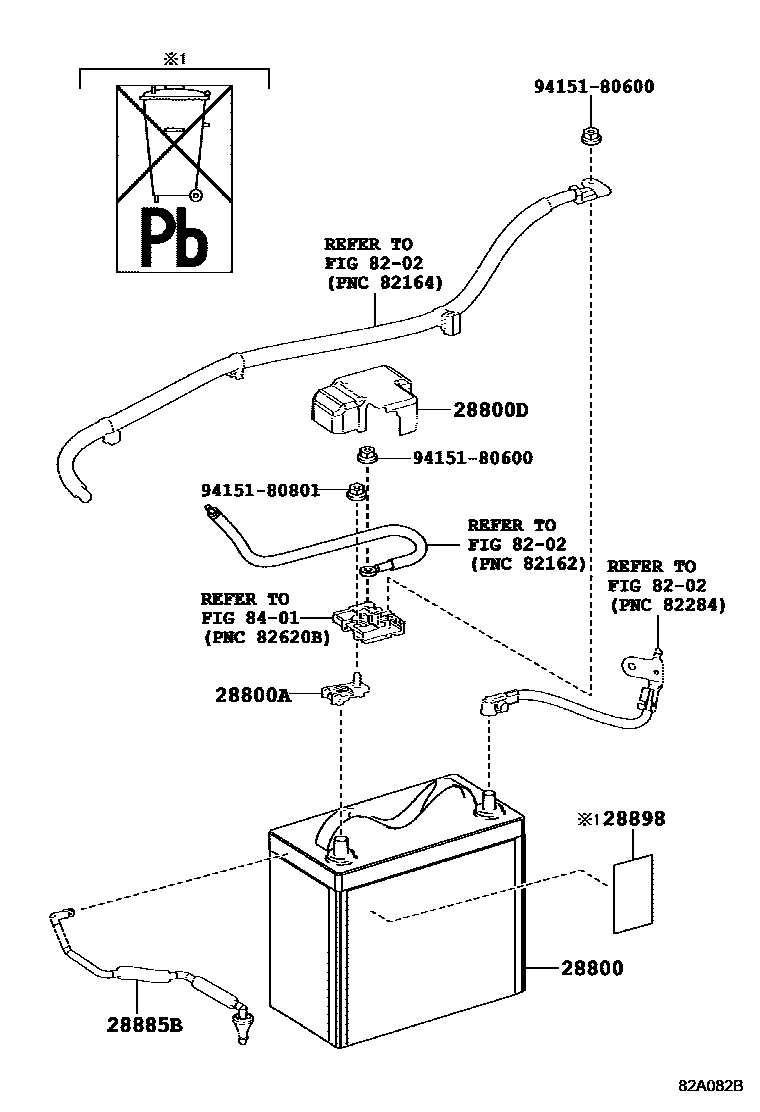

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY(1/3) 0003 1HV BATTERY(2/3) 0004 1HV BATTERY(3/3)

28800BATTERY

main28800-21171i4JM..JPD10201506-202005

S46B24R

sub28800-21172

28800ATERMINAL, BATTERY POSITIVE

main90982-05055i4JM..JPD10201506-202005

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-62020i4JM..JPD10201506-202005

28885BHOSE, BATTERY

main28885-77020i4JM..JPD10201506-202005

28898PLATE, BATTERY

main28898-16020i4JM..JPD10201506-202005

8202

8401

9415180600

main94151-80600

9415180801

main94151-80801

9 parts on this diagram · 4 diagrams in section
