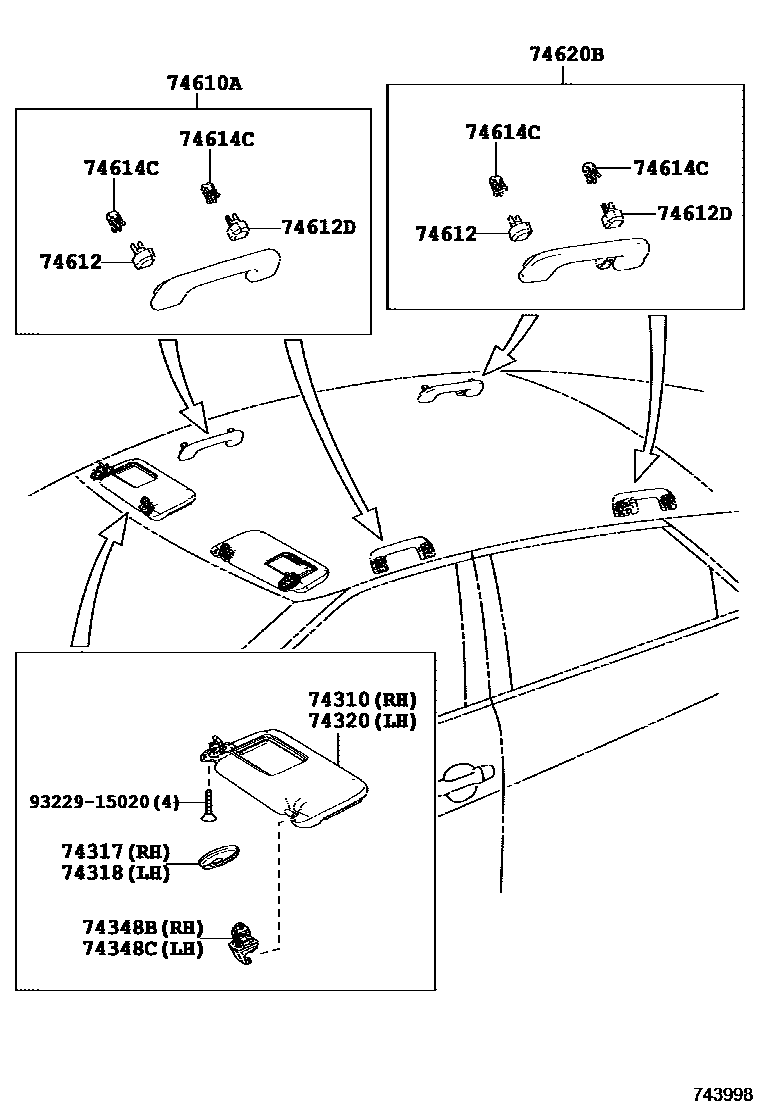

ARMREST & VISOR

74310VISOR ASSY, RH

main74310-62020-A0iJPD10..LHD201506-202005

WARM WHITE,TRIM0#,8#

main74310-62030-A0iJPD10..RHD201506-202005

WARM WHITE,TRIM0#,8#

74317COVER, VISOR BRACKET, RH

main74317-60020-A8iJPD10201506-202005

WARM WHITE,TRIM0#,8#

74318COVER, VISOR BRACKET, LH

main74317-60020-A8iJPD10201506-202005

WARM WHITE,TRIM0#,8#

74320VISOR ASSY, LH

main74320-62020-A0iJPD10..LHD201506-202005

WARM WHITE,TRIM0#,8#

main74320-62030-A0iJPD10..RHD201506-202005

WARM WHITE,TRIM0#,8#

74348BHOLDER, VISOR, RH

main74348-33040-A9iJPD10201506-202005

WARM WHITE,TRIM0#,8#

74348CHOLDER, VISOR, LH

main74348-33040-A9iJPD10201506-202005

WARM WHITE,TRIM0#,8#

74610AGRIP SUB-ASSY, ASSIST

main74610-12130-A1×2iJPD10201506-202005

WARM WHITE,TRIM0#,8#

74612COVER, ASSIST GRIP

main74611-12040-A1×4iJPD10201506-202005

WARM WHITE,TRIM0#,8#

74612DCOVER, ASSIST GRIP

main74612-12040-A1×4iJPD10201506-202005

WARM WHITE,TRIM0#,8#

74614CPLATE, ASSIST GRIP LOCK

main74614-12010×8iJPD10201506-202005

74620BGRIP ASSY, ASSIST, REAR

main74610-42060-A1×2iJPD10201506-202005

WARM WHITE,TRIM0#,8#

9322915020

main93229-15020

12 parts on this diagram · 1 diagram in section
