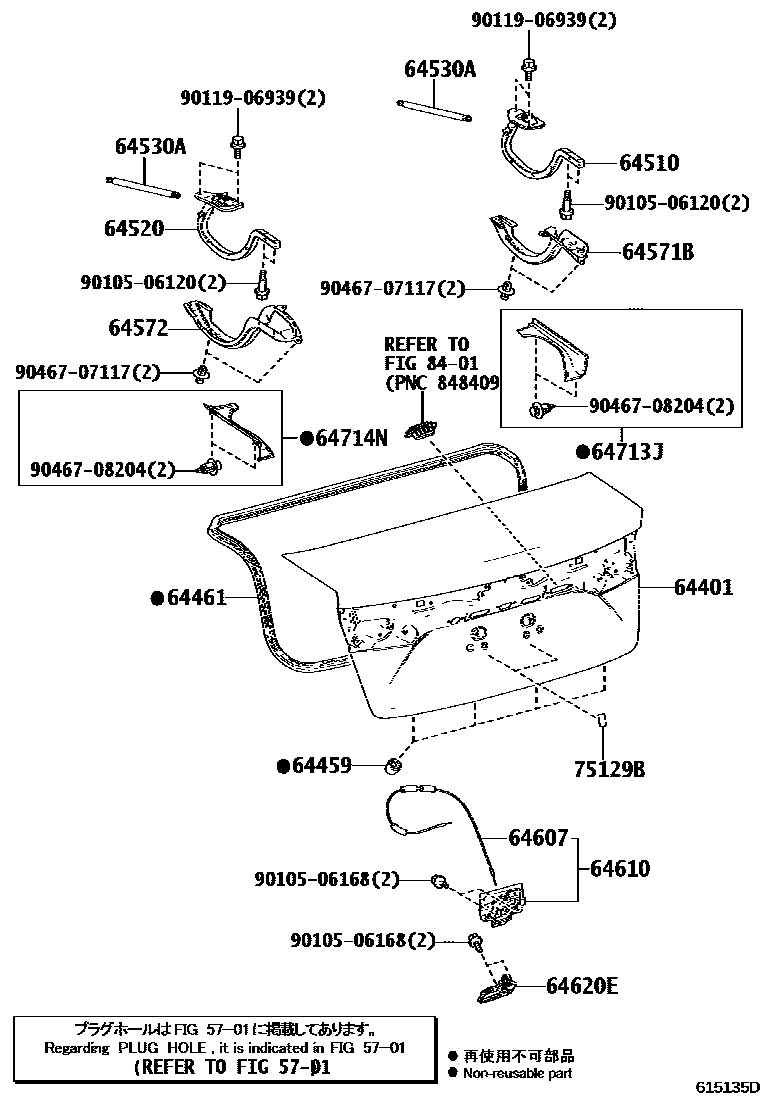

LUGGAGE COMPARTMENT DOOR & LOCK

5701

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-62010iJPD10¥45,600201506-202005

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09085iJPD10¥200201506-201507

main90541-09117iJPD10¥100201507-202005

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-62010iJPD10¥5,200201506-202005

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-62010iJPD10¥3,110201506-202005

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-62010iJPD10¥3,110201506-202005

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-0W170iJPD10¥8,200201506-202005

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-62010iJPD10¥2,610201506-202005

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-62010iJPD10¥2,630201506-202005

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-62010iJPD10¥1,310201506-202005

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-62010iJPD10¥10,700201506-202005

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30140iJPD10¥2,120201506-202005

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64713-62010iJPD10¥2,140201506-202005

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64714-62010iJPD10¥2,140201506-202005

75129BCUSHION, REAR LICENCE PLATE

main75129-30010iJPD10¥190201506-202005

8401

9010506120

main90105-06120¥90

9010506168

main90105-06168¥120

9011906939

main90119-06939¥60

9046707117

main90467-07117¥90

9046708204

main90467-08204¥80

21 parts on this diagram · 1 diagram in section
