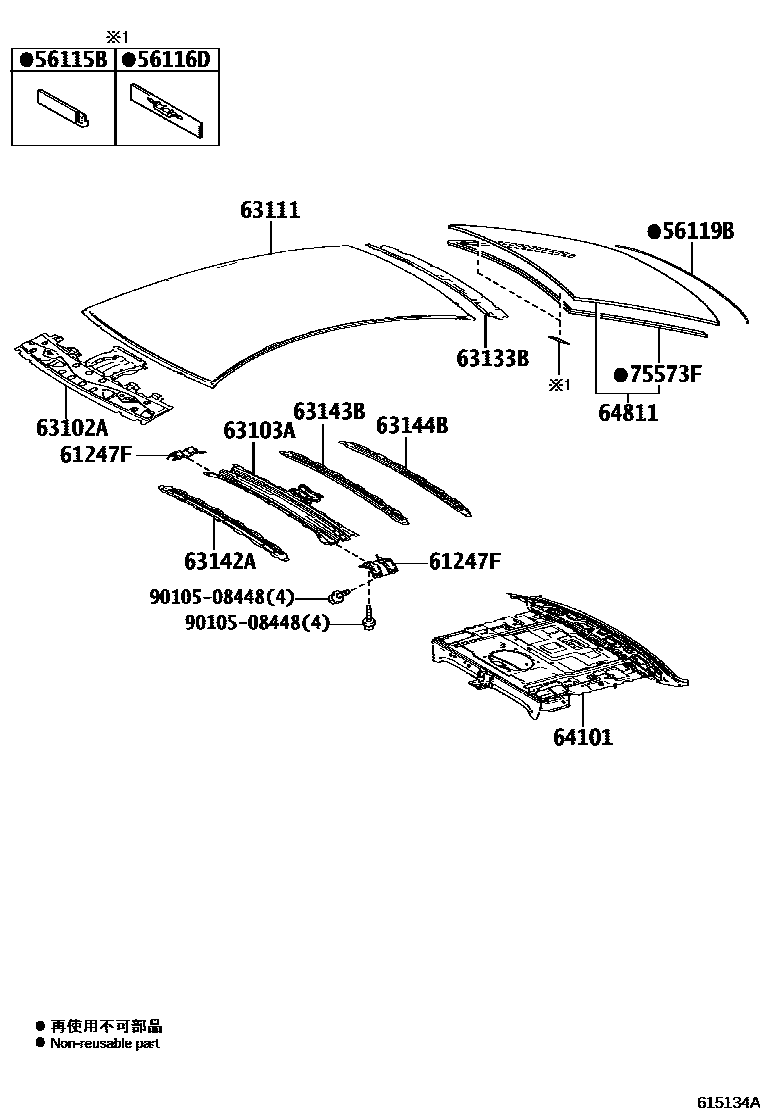

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
56119BDAM, BACK WINDOW GLASS ADHESIVE
61247FREINFORCEMENT, ROOF SIDE RAIL, INNER
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63111PANEL, ROOF
63133BFRAME, BACK WINDOW
63142AREINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144BREINFORCEMENT, ROOF PANEL, NO.4
64101PANEL SUB-ASSY, UPPER BACK
64811GLASS, BACK WINDOW
75573FMOULDING, BACK WINDOW, OUTSIDE
9010508448
main90105-08448
15 parts on this diagram · 1 diagram in section
