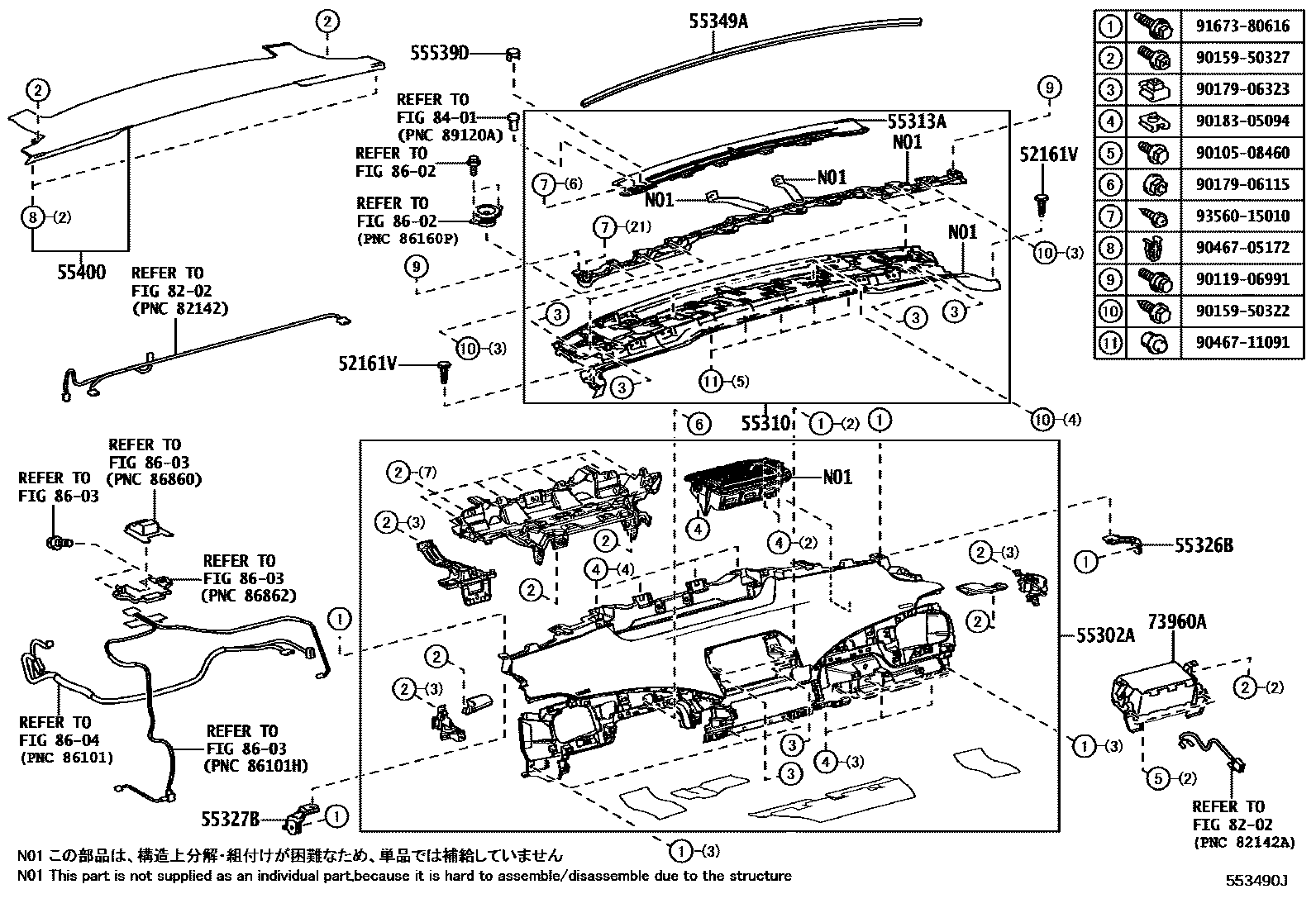

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1 0007 1 0008 1DRIVER SIDE 0009 1CENTER 0010 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iJPD10201506-202005

sub52161-0K040

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-62080-C0iJPD10..RHD201506-201712

BLACK,TRIM0#,8#

sub55302-62081

main55302-62081-C0iJPD10..RHD201801-202005

BLACK,TRIM0#,8#

main55302-62090-C0iJPD10..LHD201506-201712

BLACK,TRIM0#,8#

sub55302-62091

main55302-62091-C0iJPD10..LHD201801-202005

BLACK,TRIM0#,8#

55310PANEL ASSY, INSTRUMENT, LOWER

main55310-62030-C0iJPD10201506-202005

BLACK,TRIM0#,8#

55313APANEL, INSTRUMENT MAIN

main55313-62010-C0iJPD10201506-202005

BLACK,TRIM0#,8#

55326BSTAY, INSTRUMENT PANEL, RH

main55326-62010iJPD10201506-202005

55327BSTAY, INSTRUMENT PANEL, LH

main55326-62020iJPD10201506-202005

55349ACUSHION, INSTRUMENT PANEL

main55349-62010iJPD10201506-202005

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-62010-C0iJPD10201506-202005

BLACK,TRIM0#,8#

55539COVER, SPARE SWITCH HOLE

main55539-58060-C0iJPD10201506-202005

BLACK

55539DCOVER, SPARE SWITCH HOLE

main55539-30350-C0iJPD10201506-202005

BLACK

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-62010iJPD10201506-202005

8202

8401

8602

8603

8604

9010508460

main90105-08460

9011906991

main90119-06991

9015950322

main90159-50322

9015950327

main90159-50327

9017906115

main90179-06115

9017906323

main90179-06323

9018305094

main90183-05094

9046705172

main90467-05172

9046711091

main90467-11091

9167380616

main91673-80616

9356015010

main93560-15010

27 parts on this diagram · 10 diagrams in section
