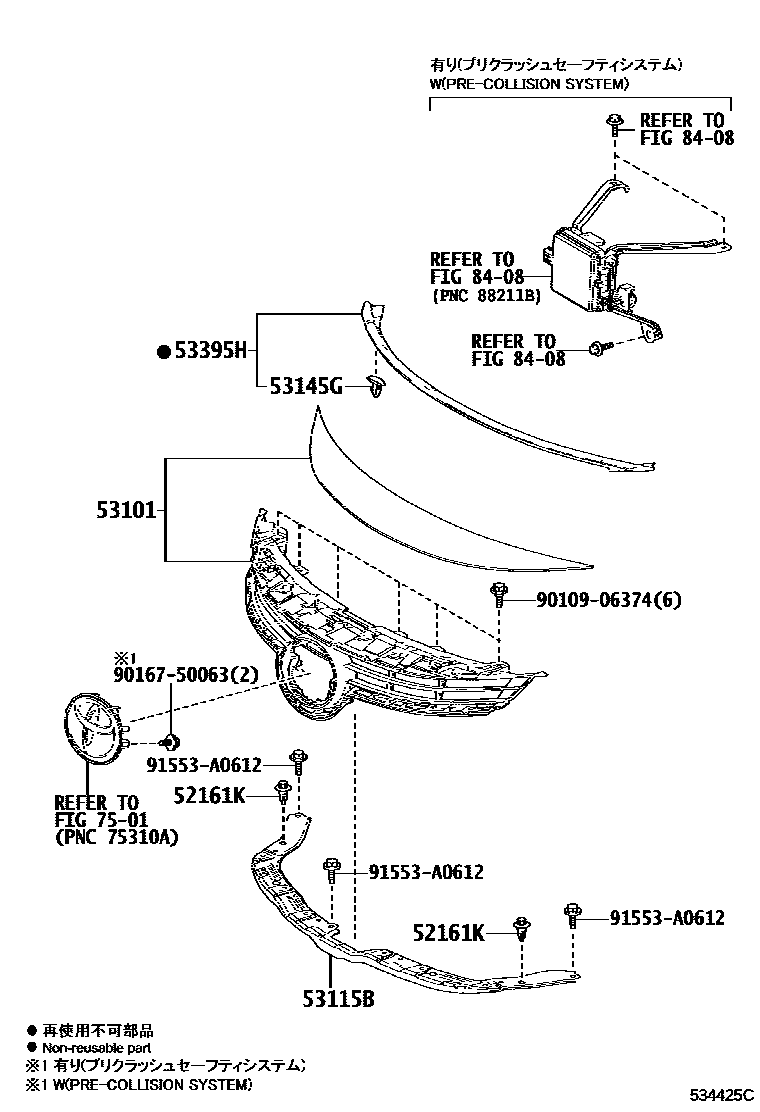

RADIATOR GRILLE

0001 1 0002 1

52161KPIECE, FRONT BUMPER

main52161-16010×2iJPD10201506-202005

sub52161-0K040

53101GRILLE SUB-ASSY, RADIATOR

main53101-62900-A1iJPD10201506-201811

WHITE PEARL CS.,062 ,2NL

main53101-62900-B0iJPD10201506-201811

PRECIOUS SILVER,1J6 ,2MR

main53101-62900-C0iJPD10201506-201811

PRECIOUS BLACK,219 ,2MS

main53101-62900-D0iJPD10201801-201811

DK.RED M.M.,2NM

main53101-62900-J0iJPD10201506-201811

BK.BLUE MC.,2MT ,8S6

main53101-62900-J2iJPD10201506-201811

PURE BLUE ME.,2NV

main53101-62901-A1iJPD10201811-202005

WHITE PEARL CS.,2NL

main53101-62901-B0iJPD10201811-202005

PRECIOUS SILVER,2MR

main53101-62901-C0iJPD10201811-202005

PRECIOUS BLACK,2MS

main53101-62901-D0iJPD10201811-202005

DK.RED M.M.,2NM

main53101-62901-J0iJPD10201811-202005

BK.BLUE MC.,2MT

main53101-62901-J2iJPD10201811-202005

PURE BLUE ME.,2NV

53115BBRACKET, RADIATOR GRILLE

main53117-62020iJPD10201506-202005

53145GCLIP, RADIATOR GRILLE

main53145-60030×9iJPD10201506-202005

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-62010iJPD10201506-202005

7501

8408

9010906374

main90109-06374

9016750063

main90167-50063

91553A0612

main91553-A0612

10 parts on this diagram · 2 diagrams in section
