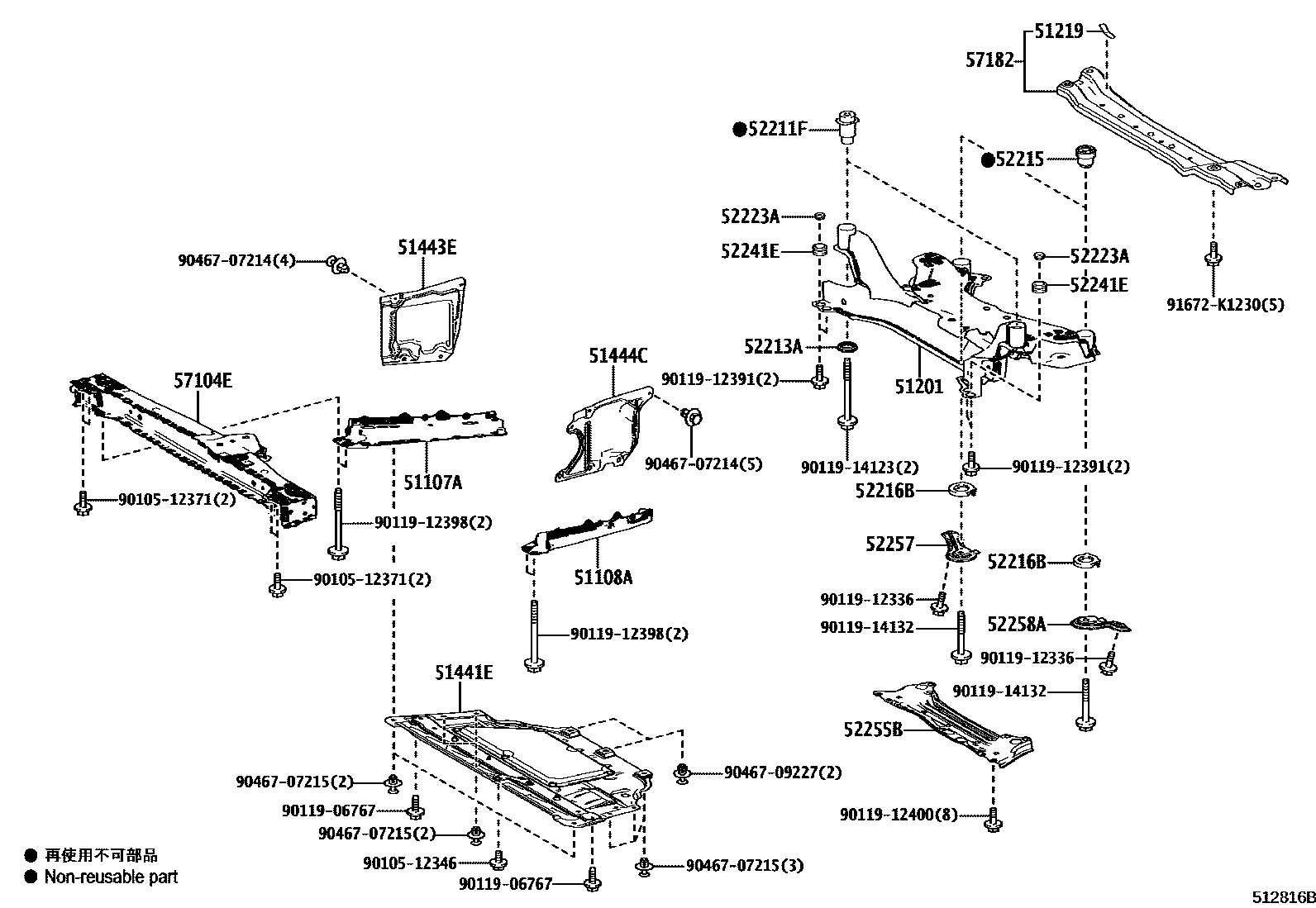

SUSPENSION CROSSMEMBER & UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-62010iJPD10201506-202005

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-62010iJPD10201506-202005

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-62010iJPD10201506-202005

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-62010iJPD10201506-202005

51441ECOVER, MOTOR UNDER, NO.1

main51410-62010iJPD10201506-202005

51443ECOVER, MOTOR UNDER, REAR RH

main51443-62010iJPD10201506-202005

51444CCOVER, MOTOR UNDER, REAR LH

main51444-62010iJPD10201506-202005

52211FCUSHION, BODY MOUNTING, FRONT UPPER

main52211-75020iJPD10201506-202005

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28040iJPD10201506-202005

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-75010iJPD10201506-202005

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28030iJPD10201506-202005

52223ASPACER, CAB REAR MOUNTING, LOWER

main52223-28010iJPD10201506-202005

52241ECUSHION, CAB REAR MOUNTING

main52241-28010iJPD10201506-202005

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iJPD10201506-202005

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-62010iJPD10201506-202005

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-62010iJPD10201506-202005

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-12270iJPD10201506-202005

57182BRACE SUB-ASSY, SUSPENSION MEMBER TO FRONT CROSSMEMBER

main52256-62010iJPD10201506-202005

9010512346

main90105-12346

9010512371

main90105-12371

9011906767

main90119-06767

9011912336

main90119-12336

9011912391

main90119-12391

9011912398

main90119-12398

9011912400

main90119-12400

9011914123

main90119-14123

9011914132

main90119-14132

9046707214

main90467-07214

9046707215

main90467-07215

9046709227

main90467-09227

91672K1230

main91672-K1230

31 parts on this diagram · 1 diagram in section
