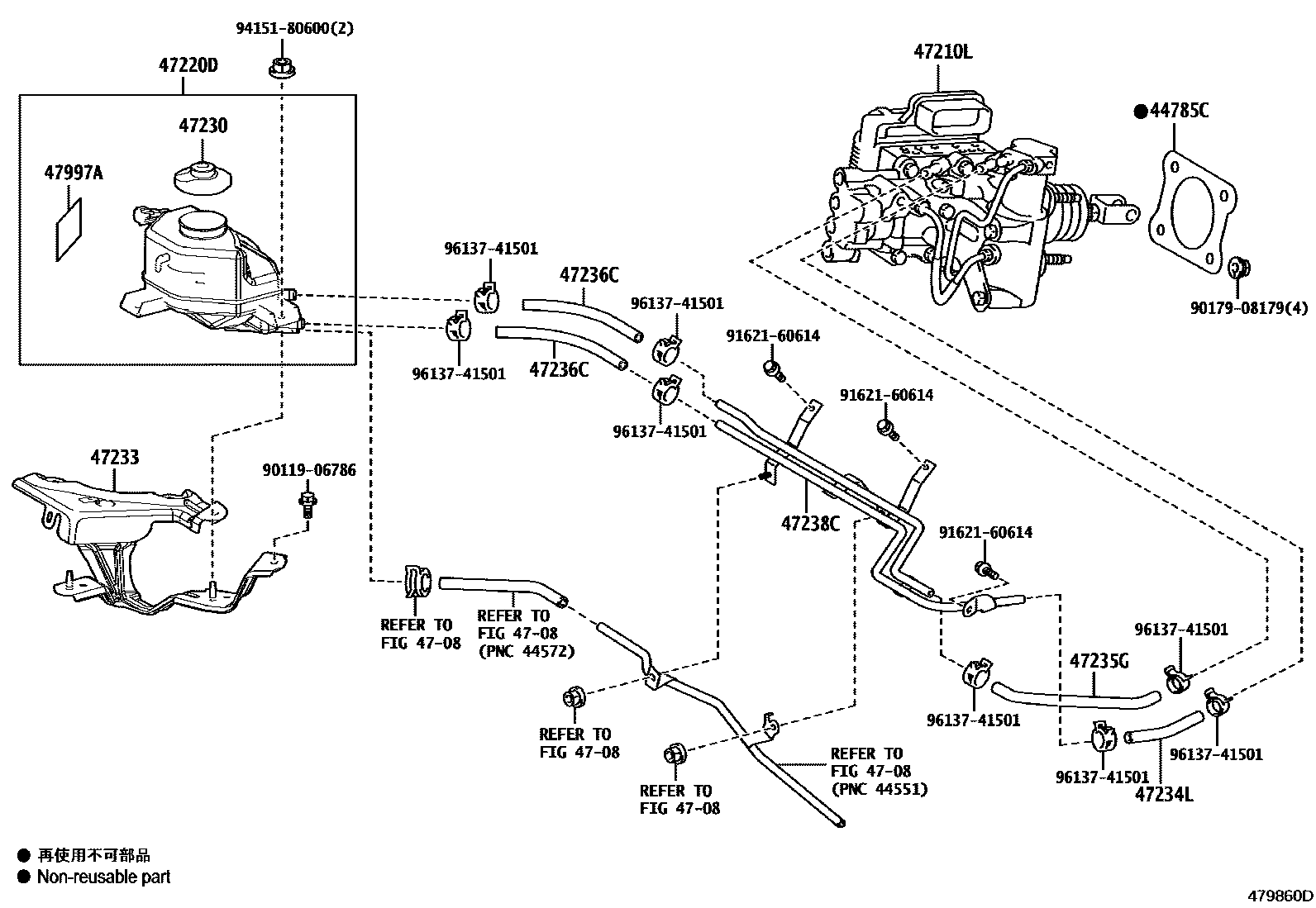

BRAKE MASTER CYLINDER

0001 1 0002 1

44785CGASKET, BRAKE BOOSTER

main44785-12040iJPD10201506-202005

4708

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-62010iJPD10..RHD201506-201811

main47050-62020iJPD10..LHD201506-201811

main47050-62030iJPD10..RHD201811-202005

main47050-62040iJPD10..LHD201811-202005

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47070iJPD10201506-202005

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iJPD10201506-202005

47233BRACKET, RESERVOIR

main47233-75010iJPD10201506-202005

47234LHOSE, RESERVOIR, NO.1

main47234-62010iJPD10..LHD201506-202005

47235GHOSE, RESERVOIR, NO.2

main47235-62010iJPD10..LHD201506-202005

47236CHOSE, RESERVOIR TUBE

main90445-14183iJPD10..LHD201506-202005

47238CTUBE, RESERVOIR

main47238-62010iJPD10..LHD201506-202005

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010iJPD10201506-202005

9011906786

main90119-06786

9017908179

main90179-08179

9162160614

main91621-60614

9415180600

main94151-80600

9613741501

main96137-41501

16 parts on this diagram · 2 diagrams in section
