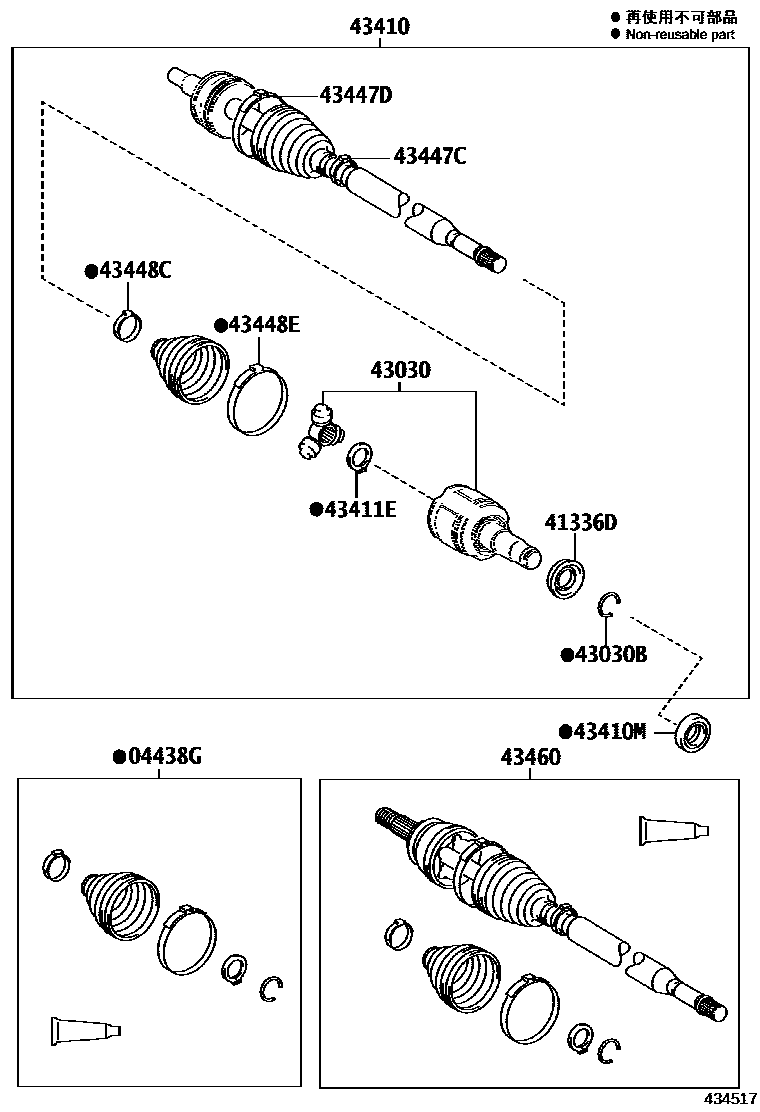

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-62010iJPD10201506-202005

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iJPD10201506-202005

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-62010iJPD10201506-202005

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-33002iJPD10201506-202005

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-62010iJPD10201506-202005

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40039iJPD10201506-202005

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-48010iJPD10201506-202005

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48070iJPD10201506-202005

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-48080iJPD10201506-202005

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-50070iJPD10201506-202005

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42346-50010iJPD10201506-202005

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-69245iJPD10201506-202005

12 parts on this diagram · 2 diagrams in section
