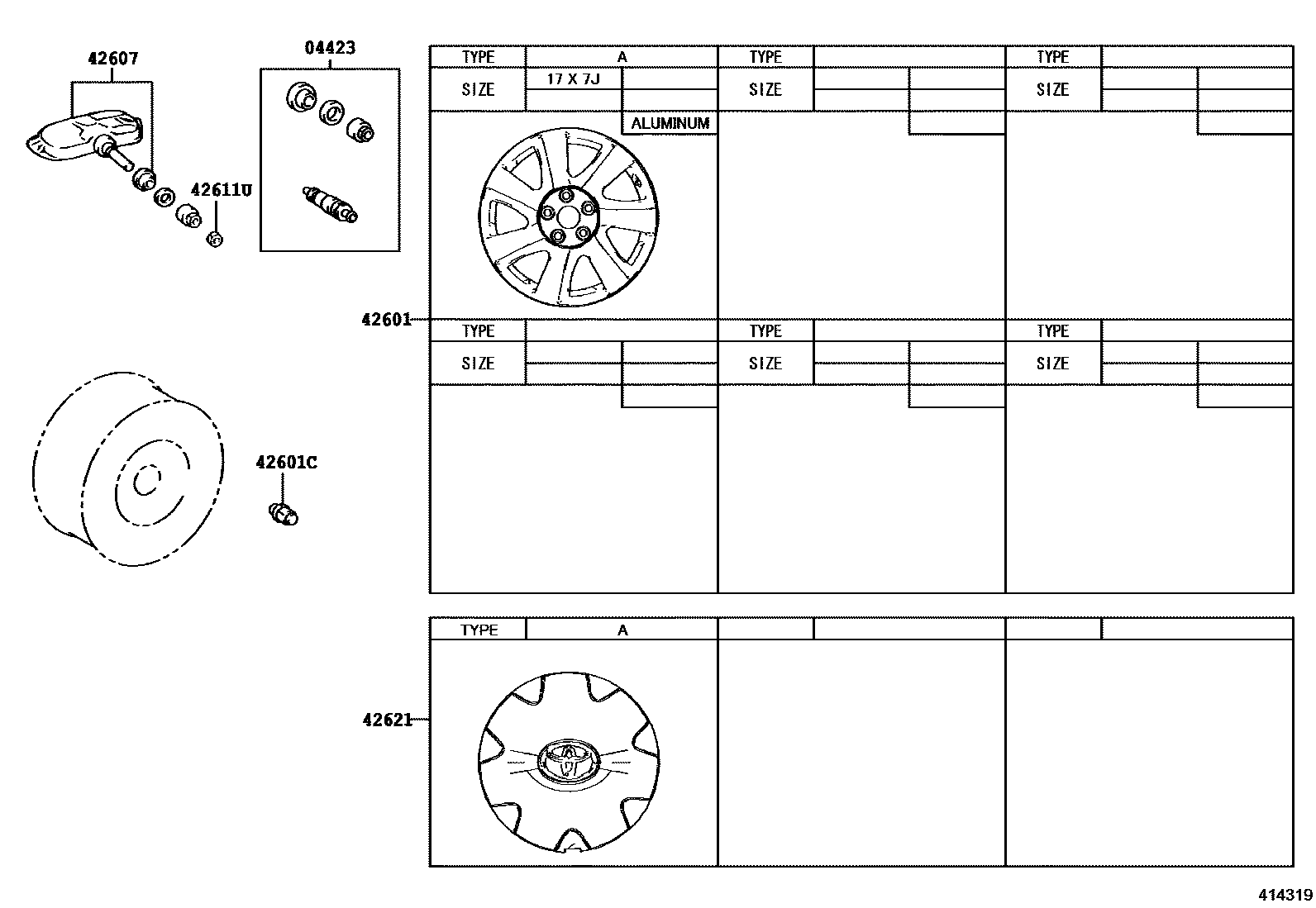

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iJPD10201506-202005

42601WHEEL, DISC

main42611-62040iJPD10201506-202005

17X7J,#,TYPE A:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iJPD10201506-202005

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-42021iJPD10201506-202005

42611UCAP, TIRE VALVE

main90942-05039iJPD10201506-202005

42621CAP, WHEEL

main4260B-62010iJPD10201506-202005

TYPE A:REFER ILLUST.

6 parts on this diagram · 1 diagram in section
