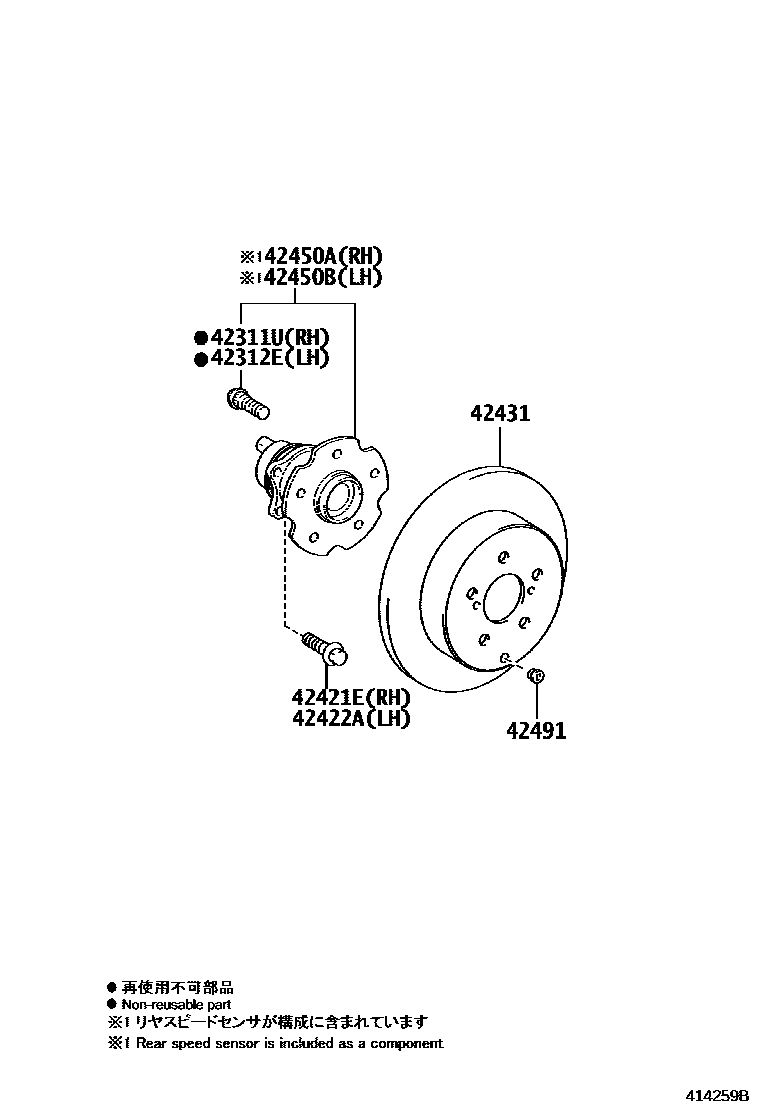

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iJPD10201506-202005

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iJPD10201506-202005

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iJPD10201506-202005

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iJPD10201506-202005

42431DISC, REAR

main42431-47080iJPD10201506-202005

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-47050iJPD10201506-202005

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-47050iJPD10201506-202005

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iJPD10201506-202005

8 parts on this diagram · 1 diagram in section
