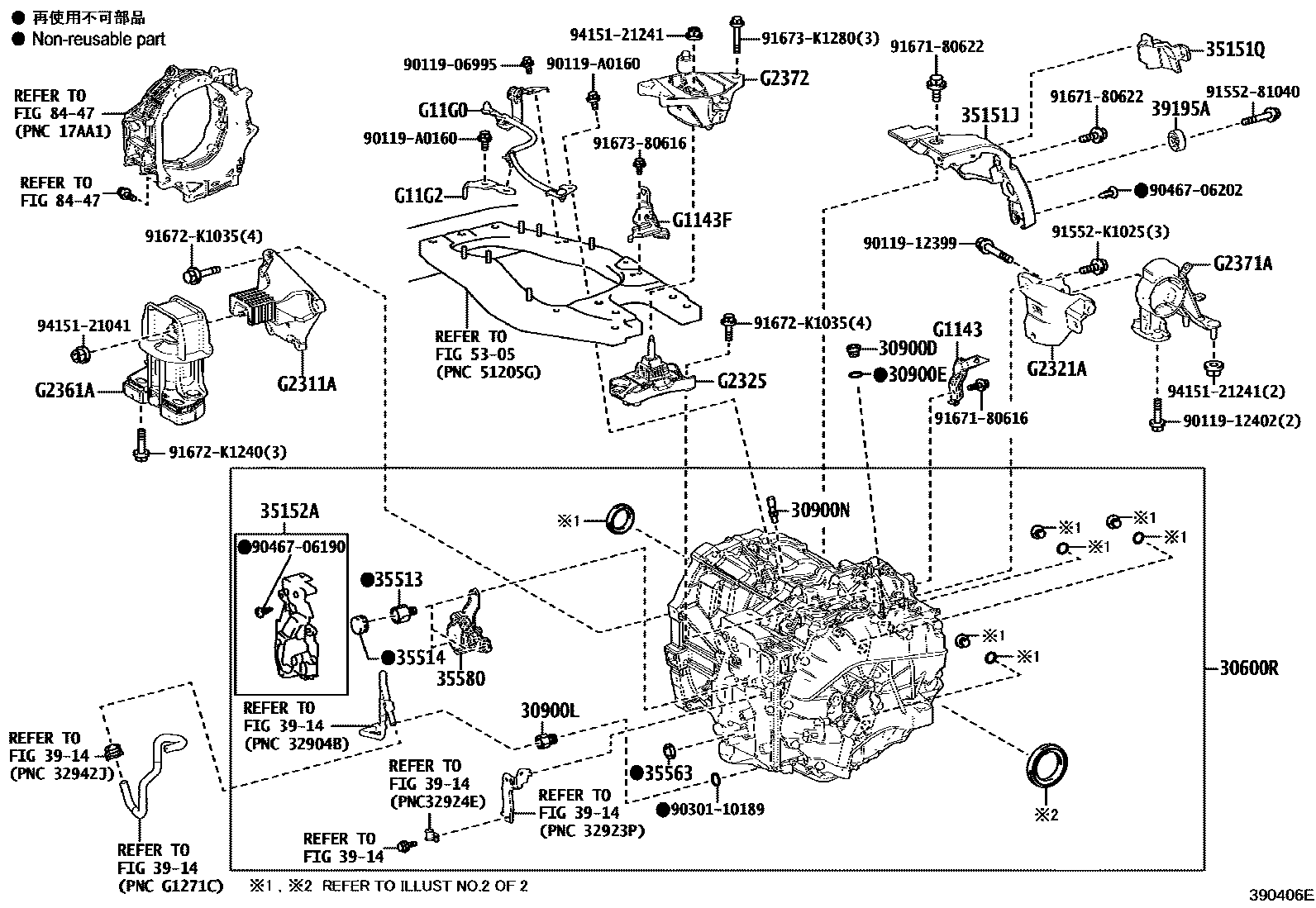

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30600RTRANSAXLE ASSY, FCV W/MOTOR
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900LUNION(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
35151JCOVER, AUTOMATIC TRANSMISSION CASE
35151QCOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35152ACOVER, AUTOMATIC TRANSMISSION CASE, NO.2
35513BOLT, SHIFT CONTROL ACTUATOR
35514CAP, SHIFT CONTROL ACTUATOR BOLT
35563SEAL, SHIFT CONTROL ACTUATOR
35580ACTUATOR ASSY, SHIFT CONTROL
3914
39195ADAMPER, FCV TRANSAXLE MASS
5305
8447
G1143BRACKET, MOTOR CABLE
G1143FBRACKET, MOTOR CABLE, NO.2
G11G0CABLE ASSY, FCV TRACTION MOTOR BOND
G11G2BRACKET, FCV MOTOR WIRE CLAMP, NO.2
G2311ABRACKET, MOTOR MOUNTING, FRONT
G2321ABRACKET, MOTOR MOUNTING, REAR
G2325BRACKET, MOTOR MOUNTING, LH
G2361AINSULATOR, MOTOR MOUNTING, FRONT
G2371AINSULATOR, MOTOR MOUNTING, REAR
G2372INSULATOR, MOTOR MOUNTING, LH
9011906995
9011912399
9011912402
90119A0160
main90119-A0160
9030110189
9046706190
9046706202
9155281040
91552K1025
9167180616
9167180622
91672K1035
91672K1240
9167380616
91673K1280
9415121041
9415121241
43 parts on this diagram · 2 diagrams in section
