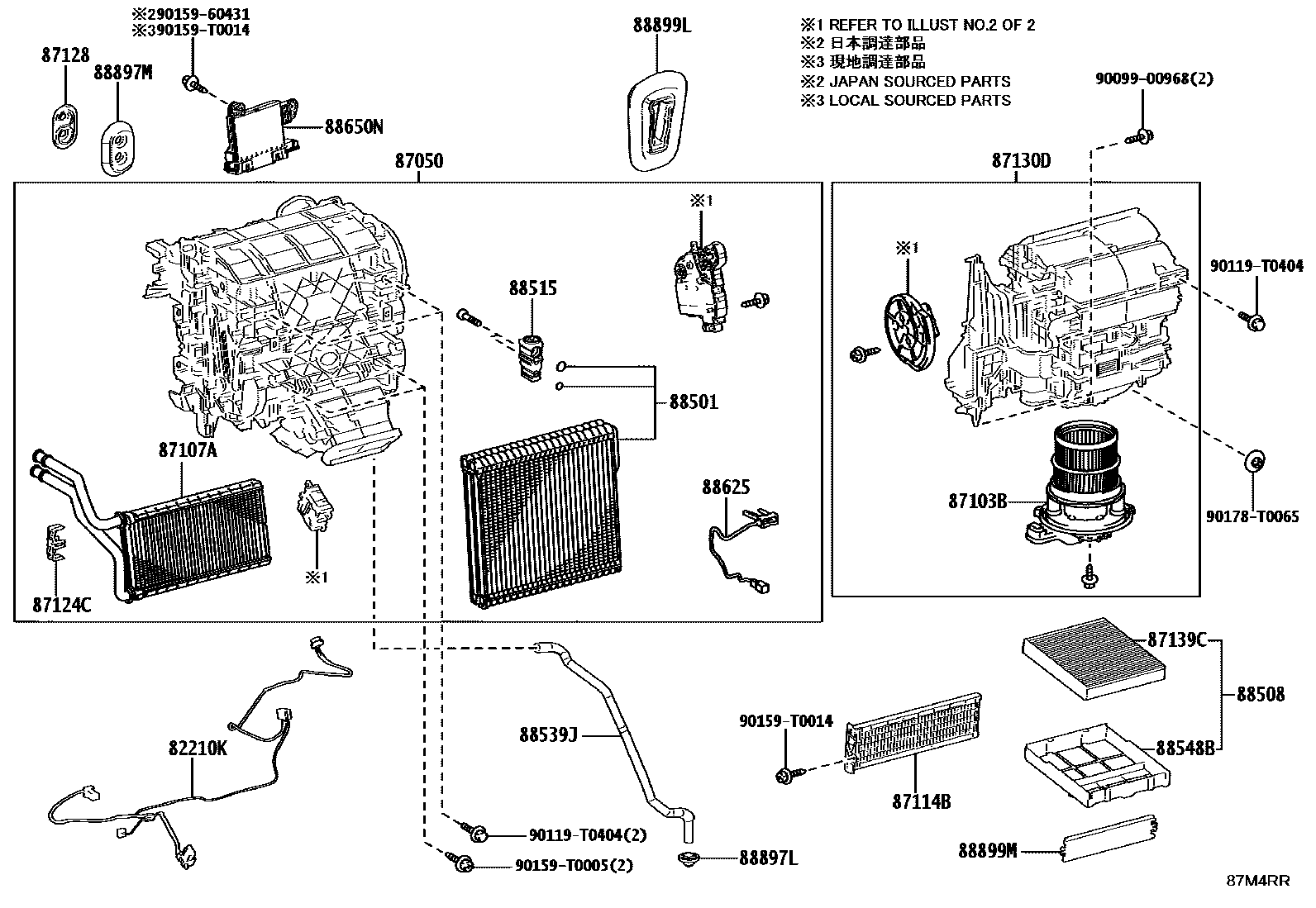

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1DAMPER SERVO 0003 1 0004 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06270iAXVA80;AXVH80..G,Q202410

main82212-33110iAXVH80,MXVA80..LHD202410

main82212-33210iAXVH80..RHD..V202410

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06A10iAXVH80..G,Q202410

main87050-06B30iAXVA80202410

main87050-33G90iAXVH80..RHD..V202410

main87050-33J10iMXVA80202410

main87050-V2200iAXVH80..LHD202410

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0A070iAXVA80;AXVH80..G,Q202410

main87103-52290iAXVH80..RHD..V202410

main87103-78040iAXVH80,MXVA80..LHD202410

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-06130iAXVA80;AXVH80..G,Q202410

main87107-33130iAXVH80,MXVA80..LHD202410

main87107-33140iAXVH80..RHD..V202410

87114BCOVER, HEATER

main87114-06110iAXVA80,AXVH80,MXVA80202410

87124CCLAMP, HEATER

main87124-06140iAXVA80;AXVH80..G,Q202410

main87124-33070iMXVA80;AXVH80..V202410

87128GROMMET, HEATER

main87128-28010iAXVA80,AXVH80,MXVA80202410

87130DBLOWER ASSY

main87130-42491iAXVH80,MXVA80..LHD202410

main87130-F4061iAXVA80;AXVH80..G,Q202410

main87130-V1010iAXVH80..RHD..V202410

87139CFILTER, CLEAN AIR

main87139-06130iAXVH80..IND202412

MICRO DUST FILTER,DEODORANT FILTER

main87139-06190iAXVA80,AXVH80,MXVA80..THAI202410

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06520iAXVA80202410

main88501-06530iAXVH80..G,Q202410

main88501-33340iMXVA80202410

main88501-33350iAXVH80..V202410

88508FILTER SUB-ASSY, CLEAN AIR

main88899-06240iAXVH80,MXVA80..LHD202410

88515VALVE, COOLER EXPANSION

main88515-52120iMXVA80;AXVH80..V202410

main88515-F4030iAXVA80;AXVH80..G,Q202410

88539JHOSE, DRAIN COOLER

main88539-06190iAXVH80,MXVA80..LHD202410

main88539-06200iAXVA80,AXVH80..RHD202410

88548BCASE, AIR FILTER

main88899-06250iAXVH80,MXVA80..LHD202410

88625THERMISTOR, COOLER, NO.1

main88620-0K010iAXVA80;AXVH80..G,Q202410

main88620-28050iMXVA80;AXVH80..V202410

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-06060iAXVA80,AXVH80..G,Q202410

main886H0-06070iAXVA80,AXVH80..V202410

main886H0-06080iMXVA80202410

88897LGROMMET (FOR DRAIN HOSE)

main88888-02020iAXVA80,AXVH80,MXVA80..THAI202410

main90480-26030iAXVH80..IND202412

(J)

88897MGROMMET (FOR HEATER PIPE)

main87128-06030iAXVA80;AXVH80..G,Q202410

main87128-33020iMXVA80;AXVH80..V202410

88899LPARTS, COOLING UNIT

main88899-06320iAXVA80;AXVH80..G,Q202410

main88899-33080iMXVA80;AXVH80..V202410

88899MPLATE, COVER(FOR AIR FILTER)

main88899-06330iAXVA80,AXVH80,MXVA80202410

9009900968

main90099-00968

90119T0404

main90119-T0404

9015960431

main90159-60431

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0065

main90178-T0065

26 parts on this diagram · 4 diagrams in section
