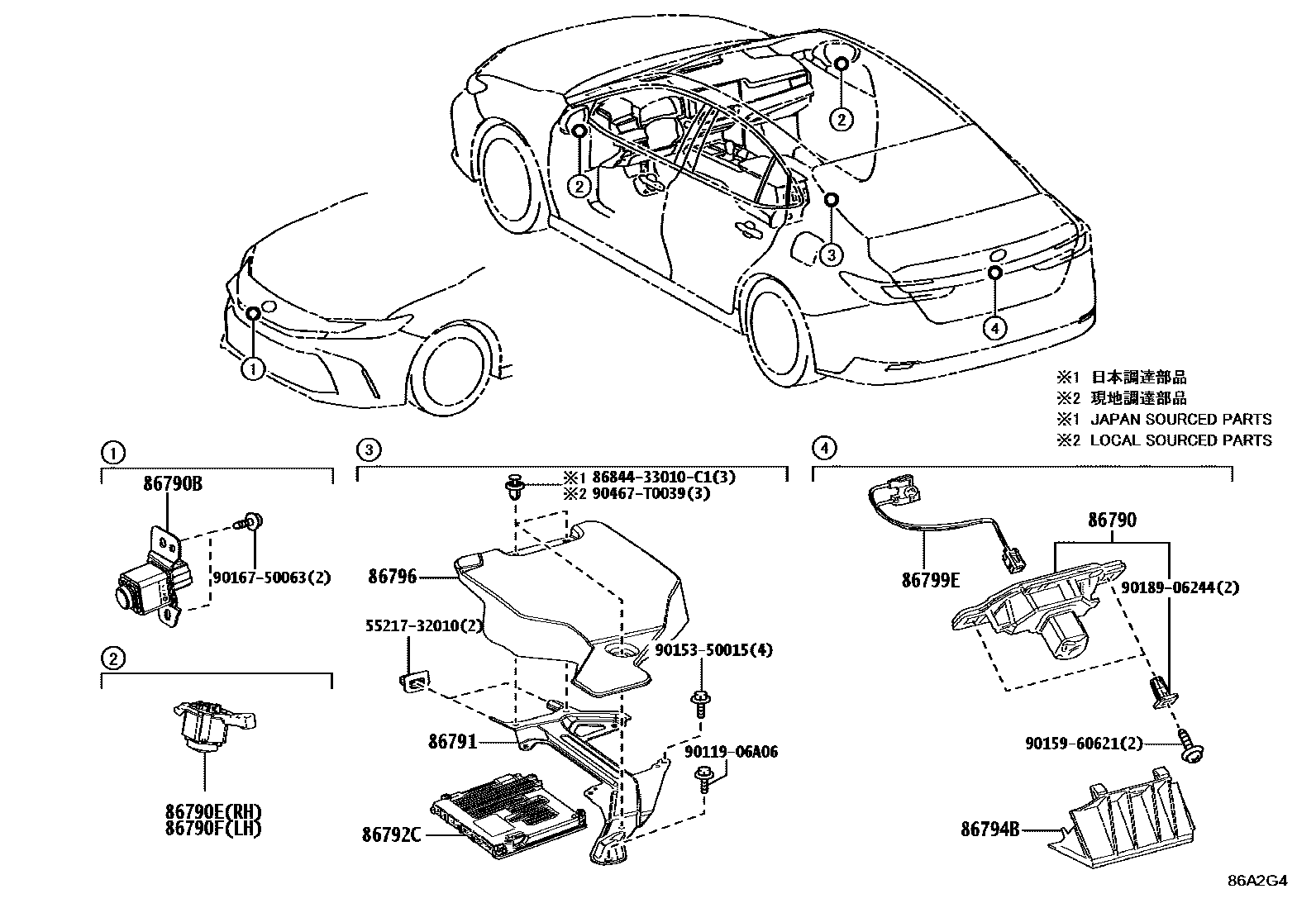

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86790CAMERA ASSY, TELEVISION

main86790-33420iAXVA80,AXVH80..(Q,V)..THAI202410

main86790-33470iAXVA80..G202410

main86790-33530iAXVH80..IND202412

main867B0-33390iAXVH80..LHD202410

86790BCAMERA ASSY, TELEVISION, FR

main86790-33440iAXVA80,AXVH80..(Q,V)..THAI202410

main86790-33490iAXVH80..IND202412

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-33460iAXVA80,AXVH80..(Q,V)..THAI202410

main86790-33510iAXVH80..IND202412

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-33450iAXVA80,AXVH80..(Q,V)..THAI202410

main86790-33500iAXVH80..IND202412

86791BRACKET, TELEVISION CAMERA

main86791-33100iAXVA80,AXVH80..Q,V202410

86792CCOMPUTER, PARKING ASSIST

main86792-33820iAXVH80..LHD202410

main86792-33830iAXVA80,AXVH80..RHD..(Q,V)202410

86794BCOVER, TELEVISION CAMERA

main86794-33010iAXVA80,AXVH80,MXVA80202410

86796COVER, COMPUTER PARKING ASSIST

main86796-33010-C0iAXVA80,AXVH80..Q,V202410

BLACK

86799EWIRE, TELEVISION CAMERA, REAR

main86799-33220iMXVA80;AXVH80..G202410

main86799-33230iAXVA80,AXVH80..Q,V202410

main86799-33260iAXVA80..G202410

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010¥120

8684433010C1RETAINER, NAVIGATION COMPUTER COVER

main86844-33010C1

9011906A06

main90119-06A06¥60

9015350015

main90153-50015¥60

9015960621

main90159-60621¥60

9016750063

main90167-50063¥60

9018906244

main90189-06244¥100

90467T0039

main90467-T0039

17 parts on this diagram · 2 diagrams in section
