CLEARANCE & BACK SONAR

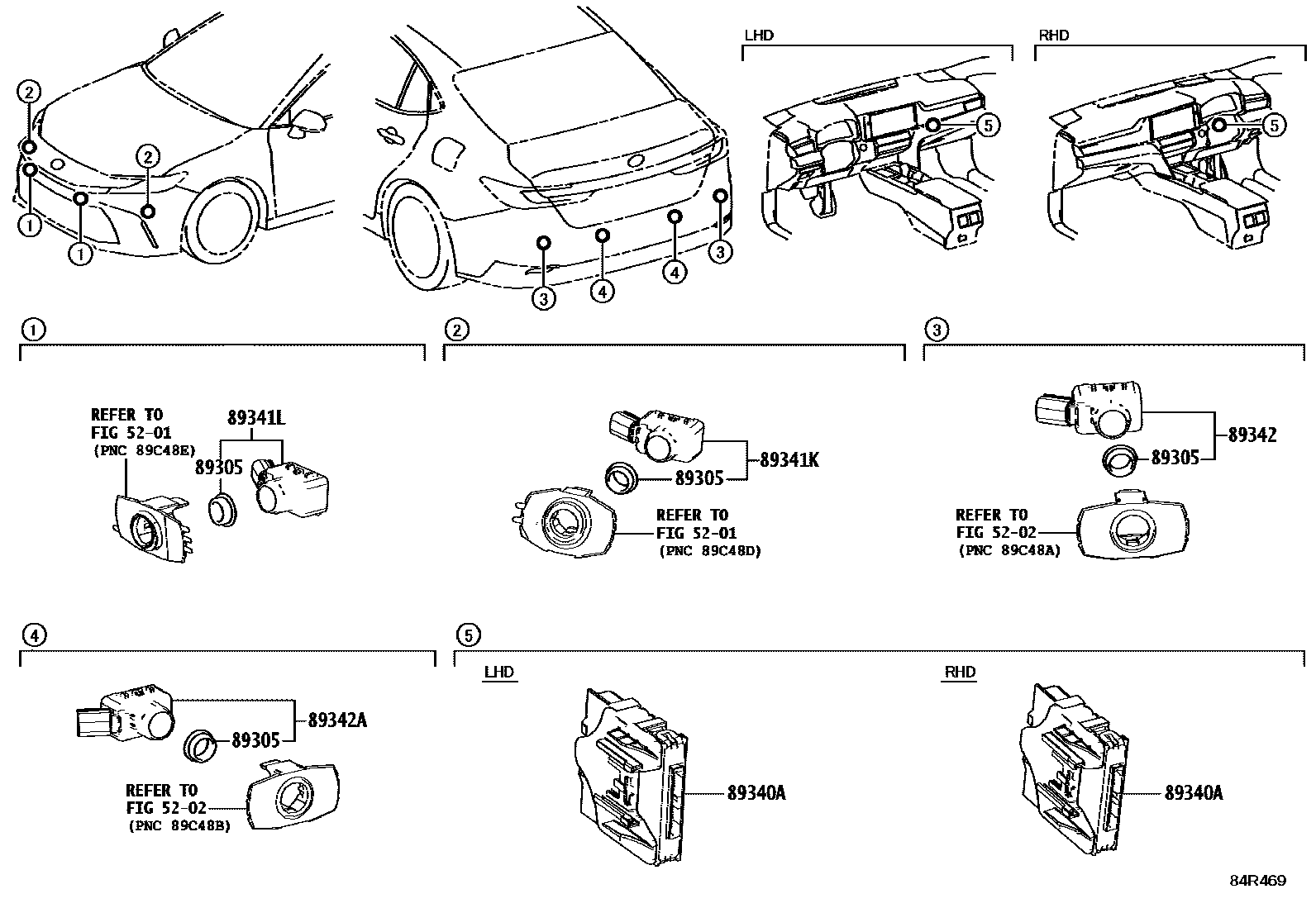

Parts diagram

5201

5202

89305CUSHION SET, ULTRASONIC SENSOR

main89305-52010i202410

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-33490i202410

main89340-33510i202410

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-K0060-A4×2i202410

PLATINUM WHITE PEARL MC.,089

main89341-K0060-C5×2i202410

ATTITUDE BLACK MC.,218

main89341-K0060-D4×2i202410

EMOTIONAL RED 2,3U5

main89341-K0060-J3×2i202410

DK. BLUE MC.,8X8

main89341-K0060-P8×2i202410

PRECIOUS METAL,1L5

main89341-K0060-S5×2i202410

CEMENT GRAY ME.,1H5

89341LSENSOR, ULTRASONIC, FRONT CENTER

main89341-K0060-A4×2i202410

PLATINUM WHITE PEARL MC.,089

main89341-K0060-C5×2i202410

ATTITUDE BLACK MC.,218

main89341-K0060-D4×2i202410

EMOTIONAL RED 2,3U5

main89341-K0060-J3×2i202410

DK. BLUE MC.,8X8

main89341-K0060-P8×2i202410

PRECIOUS METAL,1L5

main89341-K0060-S5×2i202410

CEMENT GRAY ME.,1H5

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-K0060-A4×2i202410

PLATINUM WHITE PEARL MC.,089

main89341-K0060-C5×2i202410

ATTITUDE BLACK MC.,218

main89341-K0060-D4×2i202410

EMOTIONAL RED 2,3U5

main89341-K0060-J3×2i202410

DK. BLUE MC.,8X8

main89341-K0060-P8×2i202410

PRECIOUS METAL,1L5

main89341-K0060-S5×2i202410

CEMENT GRAY ME.,1H5

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-K0060-A4×2i202410

PLATINUM WHITE PEARL MC.,089

main89341-K0060-C5×2i202410

ATTITUDE BLACK MC.,218

main89341-K0060-D4×2i202410

EMOTIONAL RED 2,3U5

main89341-K0060-J3×2i202410

DK. BLUE MC.,8X8

main89341-K0060-P8×2i202410

PRECIOUS METAL,1L5

main89341-K0060-S5×2i202410

CEMENT GRAY ME.,1H5

8 parts on this diagram · 1 diagram in section
