82111WIRE, ENGINE ROOM MAIN

main82115-06Z30iMXVA80202410

main82116-06430iAXVH80..IND202412

main82116-06N40iAXVA80..G202410

main82116-06N50iAXVA80..V202410

main82116-06S00iAXVH80..RHD..V..THAI202410

FRONT FOG LAMP-WITHOUT

main82116-06T20iAXVH80..G202410

main82116-06S10supersedes 82116-06300iAXVH80..RHD..V..THAI202410

BRUNEI SPEC&FRONT FOG LAMP-WITHOUT

main82116-06S20supersedes 82116-06300iAXVH80..RHD..V..THAI202410

MOON ROOF-WITHOUT&FRONT FOG LAMP-WITHOUT

main82116-06S30supersedes 82116-06300iAXVH80..RHD..V..THAI202410

MALAYSIA SPEC&MOON ROOF-WITHOUT&FRONT FOG LAMP-WITHOUT

main82116-06T00supersedes 82116-06300iAXVH80..RHD..V..THAI202410

MOON ROOF-WITHOUT

main82116-06T10supersedes 82116-06300iAXVH80..RHD..V..THAI202410

BRUNEI SPEC&MOON ROOF-WITHOUT

main82116-06T70supersedes 82115-06Z40iAXVH80..LHD202410

82114WIRE, ENGINE ROOM, NO.4

main82114-06370iAXVH80..LHD202410

main82114-06520iAXVH80..RHD..V..THAI202410

FRONT FOG LAMP-WITHOUT

main82114-06530iAXVA80,AXVH80..V202410

main82114-06540iAXVH80..G202410

82284WIRE, EARTH

main82284-33140iAXVA80,MXVA80202410

82286AWIRE, EARTH, NO.2

main82286-33020iAXVA80,AXVH80,MXVA80202410

8401

9011906A06

main90119-06A06

9011908665

main90119-08665

90119T0287

main90119-T0287

90119T0361

main90119-T0361

9167380616

main91673-80616

9167380820

main91673-80820

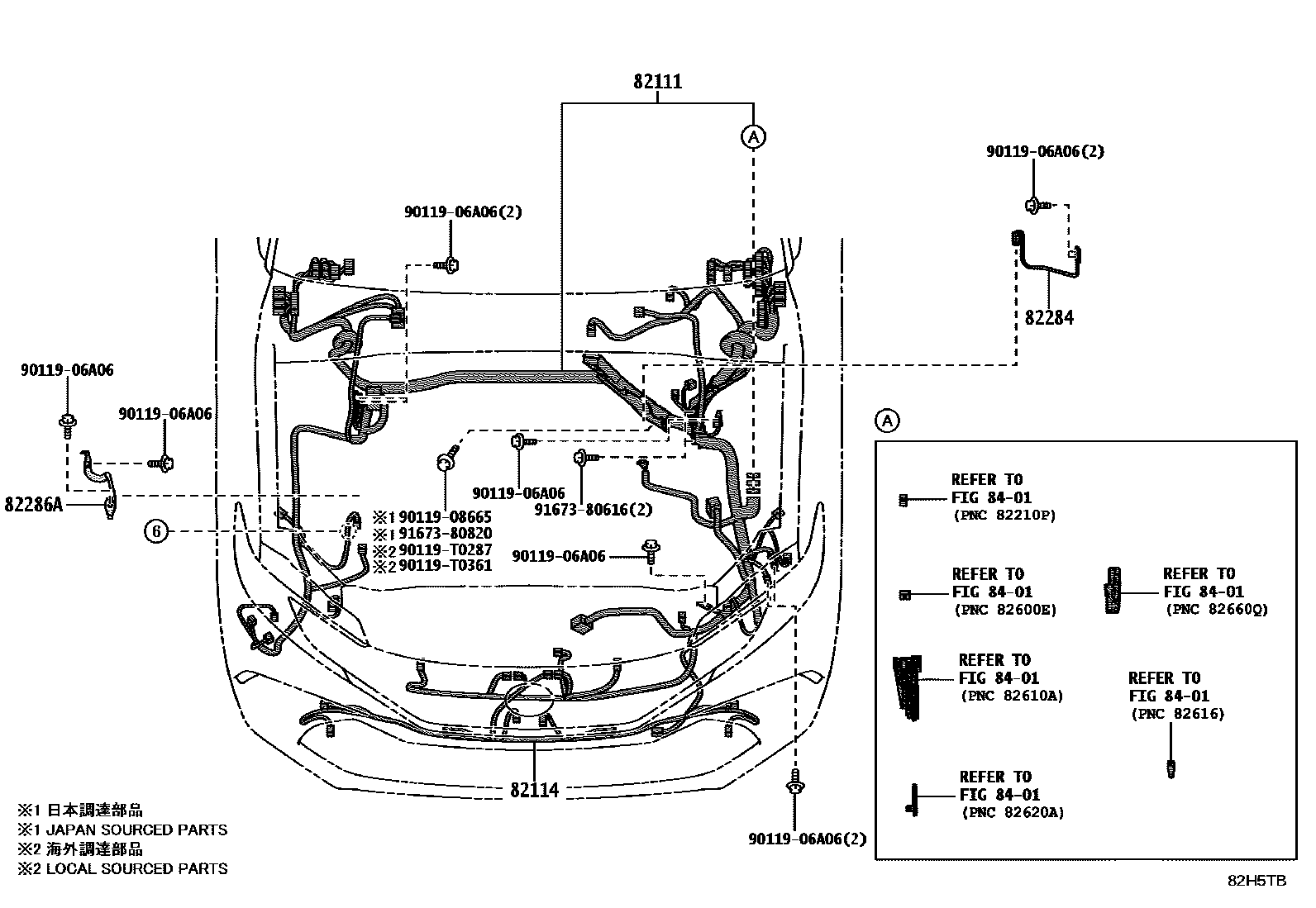

11 parts on this diagram · 33 diagrams in section
