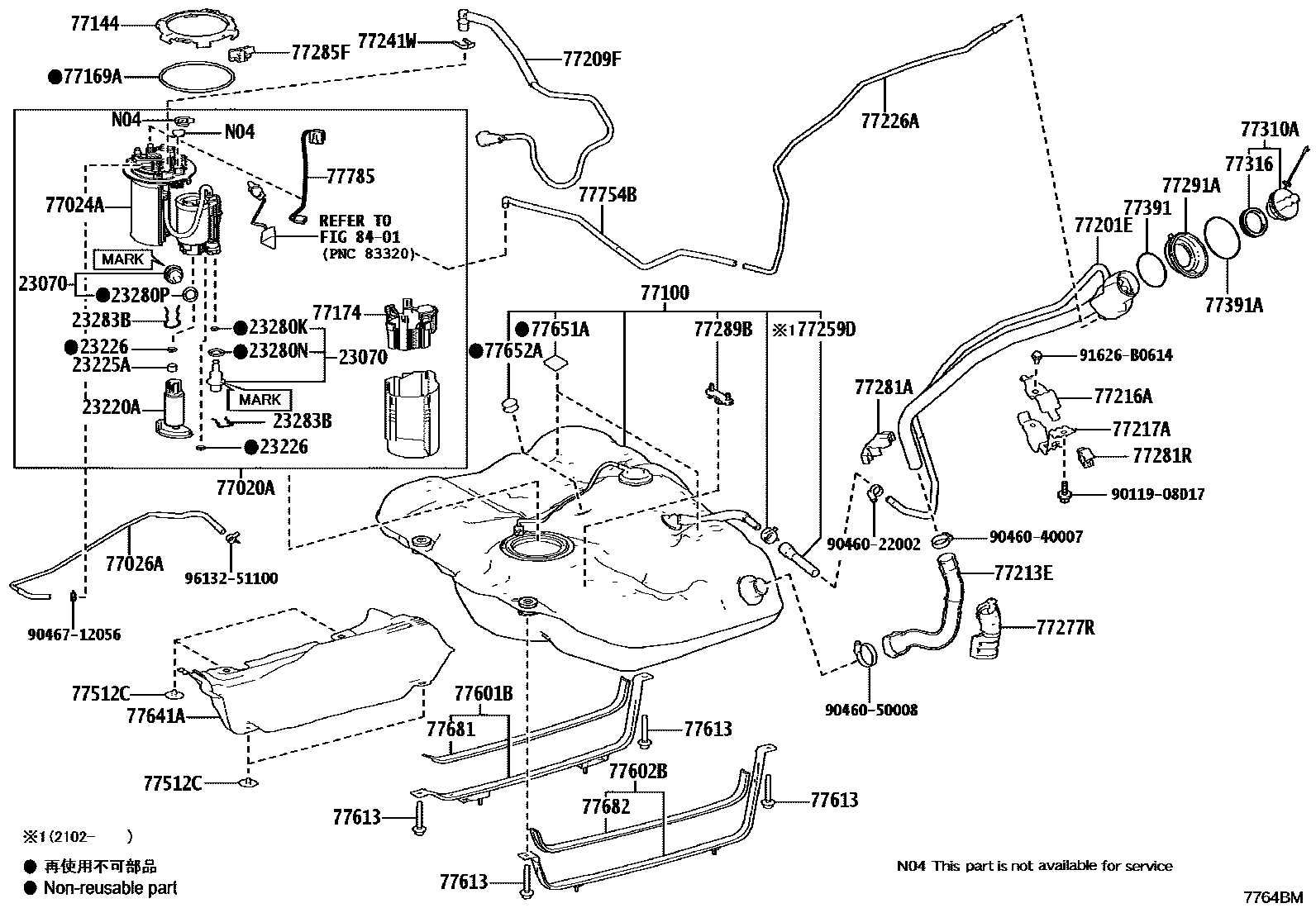

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
MARK 23070-25020
MARK 23070-31030
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2
23280PRING, O(FOR FUEL PRESSURE REGULATOR), NO.3
23283BHOLDER, FUEL PRESSURE REGULATOR
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77259DHOSE, FUEL, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77285FCLAMP, FUEL TUBE, NO.1
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
(L)
(L)
(J)
(J)
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
(L)
(L)
(J)
(J)
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77754BHOSE, CHARCOAL CANISTER OUTLET
8401
9011908D17
9046022002
9046040007
9046050008
9046712056
91626B0614
9613251100
54 parts on this diagram · 7 diagrams in section
