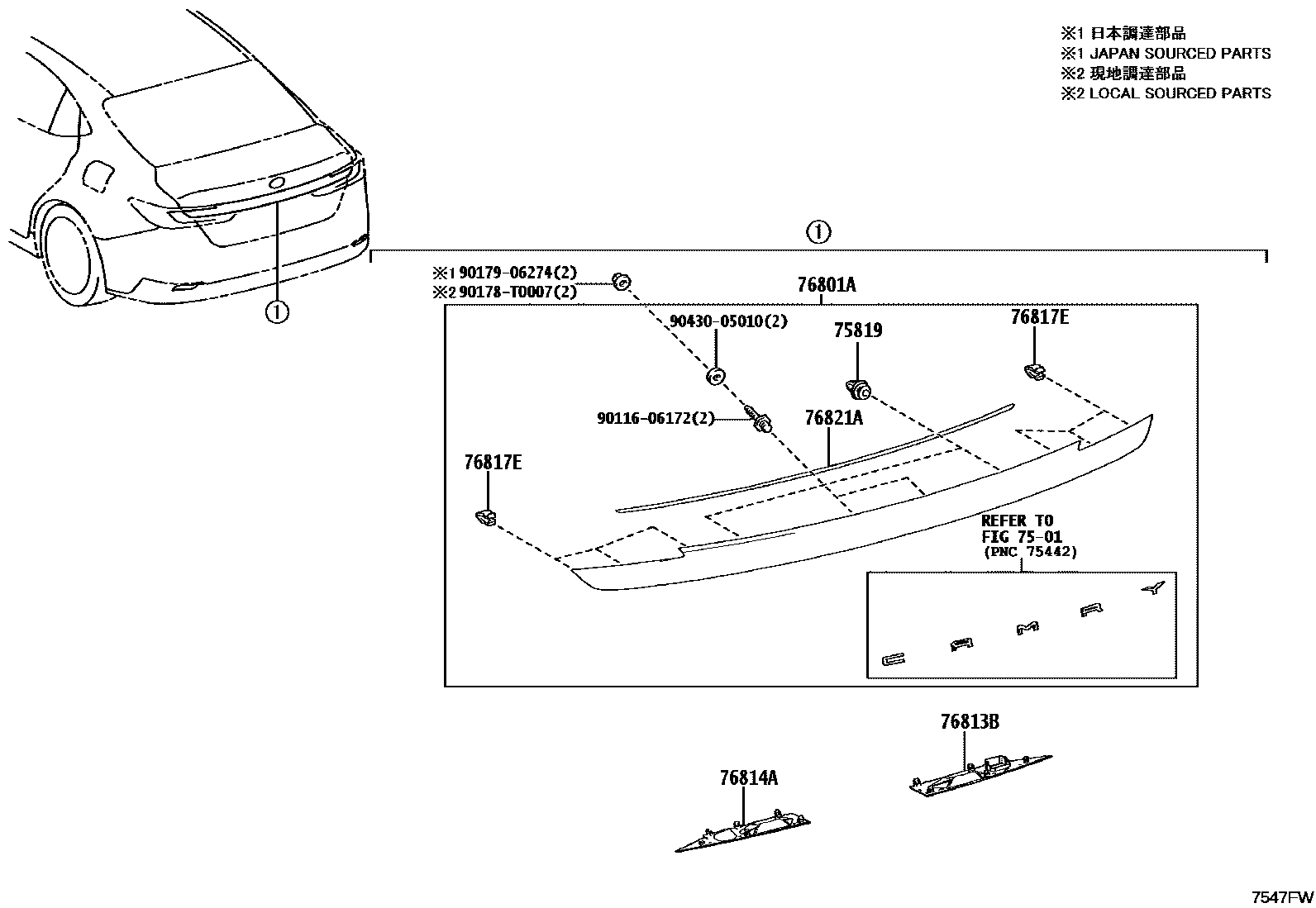

REAR MOULDING

7501

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main90467-09206iAXVA80,AXVH80,MXVA80202410

(J)

main90467-T0019iAXVA80,AXVH80,MXVA80202410

(L)

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-06925iAXVA80,AXVH80,MXVA80202410-202501

PAINT REQ.

main76801-06926iAXVA80,AXVH80,MXVA80202501

PAINT REQ.

76813BGARNISH, LUGGAGE COMPARTMENT DOOR OUTSIDE, UPPER RH

main76813-06200iAXVA80,AXVH80,MXVA80202410

76814AGARNISH, LUGGAGE COMPARTMENT DOOR OUTSIDE, UPPER LH

main76814-06040iAXVA80,AXVH80,MXVA80202410

76817ECLIP, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main90467-05172iAXVA80,AXVH80,MXVA80202410

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-06180iAXVA80,AXVH80,MXVA80202410

9011606172

main90116-06172

90178T0007

main90178-T0007

9017906274

main90179-06274

9043005010

main90430-05010

11 parts on this diagram · 1 diagram in section
