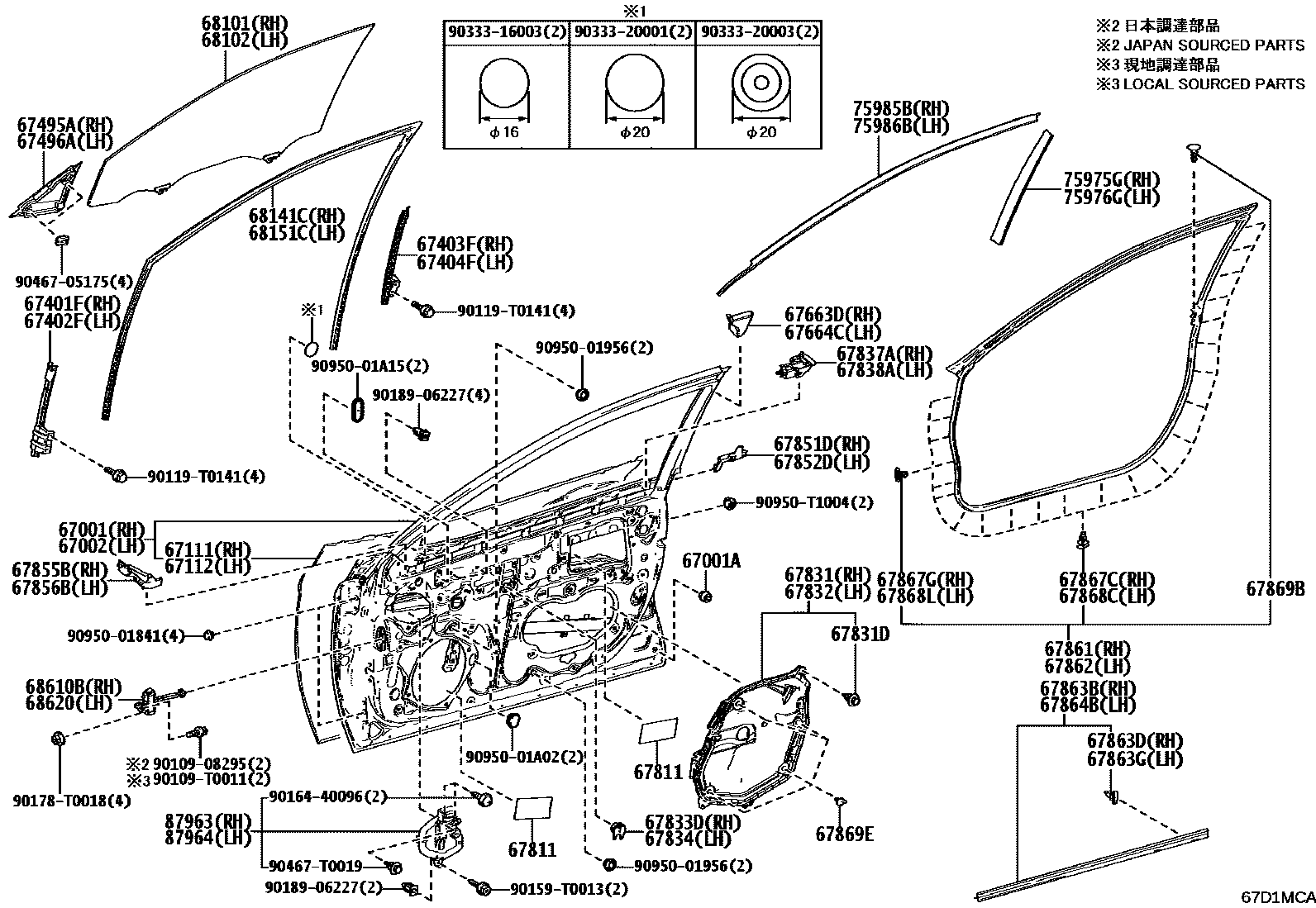

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-06341iAXVA80,AXVH80,MXVA80202410

67001ACUSHION, FRONT DOOR PANEL

main90541-09143×2iAXVA80,AXVH80,MXVA80202410

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-06311iAXVA80,AXVH80,MXVA80202410

67111PANEL, FRONT DOOR, OUTER RH

main67111-06240iAXVA80,AXVH80,MXVA80202410

67112PANEL, FRONT DOOR, OUTER LH

main67112-06240iAXVA80,AXVH80,MXVA80202410

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-06190iAXVA80,AXVH80,MXVA80202410

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-06190iAXVA80,AXVH80,MXVA80202410

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-06170iAXVA80,AXVH80,MXVA80202410

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-06170iAXVA80,AXVH80,MXVA80202410

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-06090iAXVA80,AXVH80,MXVA80202410

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-06090iAXVA80,AXVH80,MXVA80202410

67663DGARNISH, DOOR FRAME, RH

main67663-06160iAXVA80,AXVH80,MXVA80202410

67664CGARNISH, DOOR FRAME, LH

main67664-06160iAXVA80,AXVH80,MXVA80202410

67811PAD, FRONT DOOR SILENCER

main67811-0D010×4iAXVA80,AXVH80,MXVA80202410

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-06230iAXVA80,AXVH80,MXVA80202410

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-T0019×6iAXVA80,AXVH80,MXVA80202410

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-06230iAXVA80,AXVH80,MXVA80202410

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-47010iAXVA80,AXVH80,MXVA80202410

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-47010iAXVA80,AXVH80,MXVA80202410

67837ASEAL, FRONT DOOR VENT, RH

main67837-06060iAXVA80,AXVH80,MXVA80202410

67838ASEAL, FRONT DOOR VENT, LH

main67838-06050iAXVA80,AXVH80,MXVA80202410

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-06040iAXVA80,AXVH80,MXVA80202410

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-06040iAXVA80,AXVH80,MXVA80202410

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-06040iAXVA80,AXVH80,MXVA80202410

67856BPROTECTOR, FRONT DOOR PANEL, LH

main67856-06040iAXVA80,AXVH80,MXVA80202410

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-06211iAXVA80,AXVH80,MXVA80202410

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-06211iAXVA80,AXVH80,MXVA80202410

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-06140iAXVA80,AXVH80,MXVA80202410

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0D060×8iAXVA80,AXVH80,MXVA80202410

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-0D060×8iAXVA80,AXVH80,MXVA80202410

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-06140iAXVA80,AXVH80,MXVA80202410

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×22iAXVA80,AXVH80,MXVA80202410

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-0D040iAXVA80,AXVH80,MXVA80202410

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×22iAXVA80,AXVH80,MXVA80202410

67868LRETAINER, DOOR WEATHERSTRIP, LH

main67867-0D040iAXVA80,AXVH80,MXVA80202410

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67868-30030×2iAXVA80,AXVH80,MXVA80202410

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×8iAXVA80,AXVH80,MXVA80202410

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-06440iAXVA80,AXVH80,MXVA80..THAI202410

main68101-06450iAXVH80..IND202412

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-06440iAXVA80,AXVH80,MXVA80..THAI202410

main68102-06450iAXVH80..IND202412

68141CRUN, FRONT DOOR GLASS, RH

main68141-06230iAXVA80,AXVH80,MXVA80202410

68151CRUN, FRONT DOOR GLASS, LH

main68151-06220iAXVA80,AXVH80,MXVA80202410

68610BCHECK ASSY, FRONT DOOR, RH

main68610-06180iAXVA80,AXVH80,MXVA80202410

68620CHECK ASSY, FRONT DOOR, LH

main68610-06180iAXVA80,AXVH80,MXVA80202410

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-06140iAXVA80,AXVH80,MXVA80202410

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-06140iAXVA80,AXVH80,MXVA80202410

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-06140iAXVA80,AXVH80,MXVA80202410

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-06140iAXVA80,AXVH80,MXVA80202410

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-06030iAXVA80,AXVH80,MXVA80202410

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-06030iAXVA80,AXVH80,MXVA80202410

9010908295

main90109-08295

90109T0011

main90109-T0011

90119T0141

main90119-T0141

90159T0013

main90159-T0013

9016440096

main90164-40096

90178T0018

main90178-T0018

9018906227

main90189-06227

9033316003

main90333-16003

9033320001

main90333-20001

9033320003

main90333-20003

9046705175

main90467-05175

90467T0019

main90467-T0019

9095001841

main90950-01841

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A15

main90950-01A15

90950T1004

main90950-T1004

66 parts on this diagram · 2 diagrams in section
