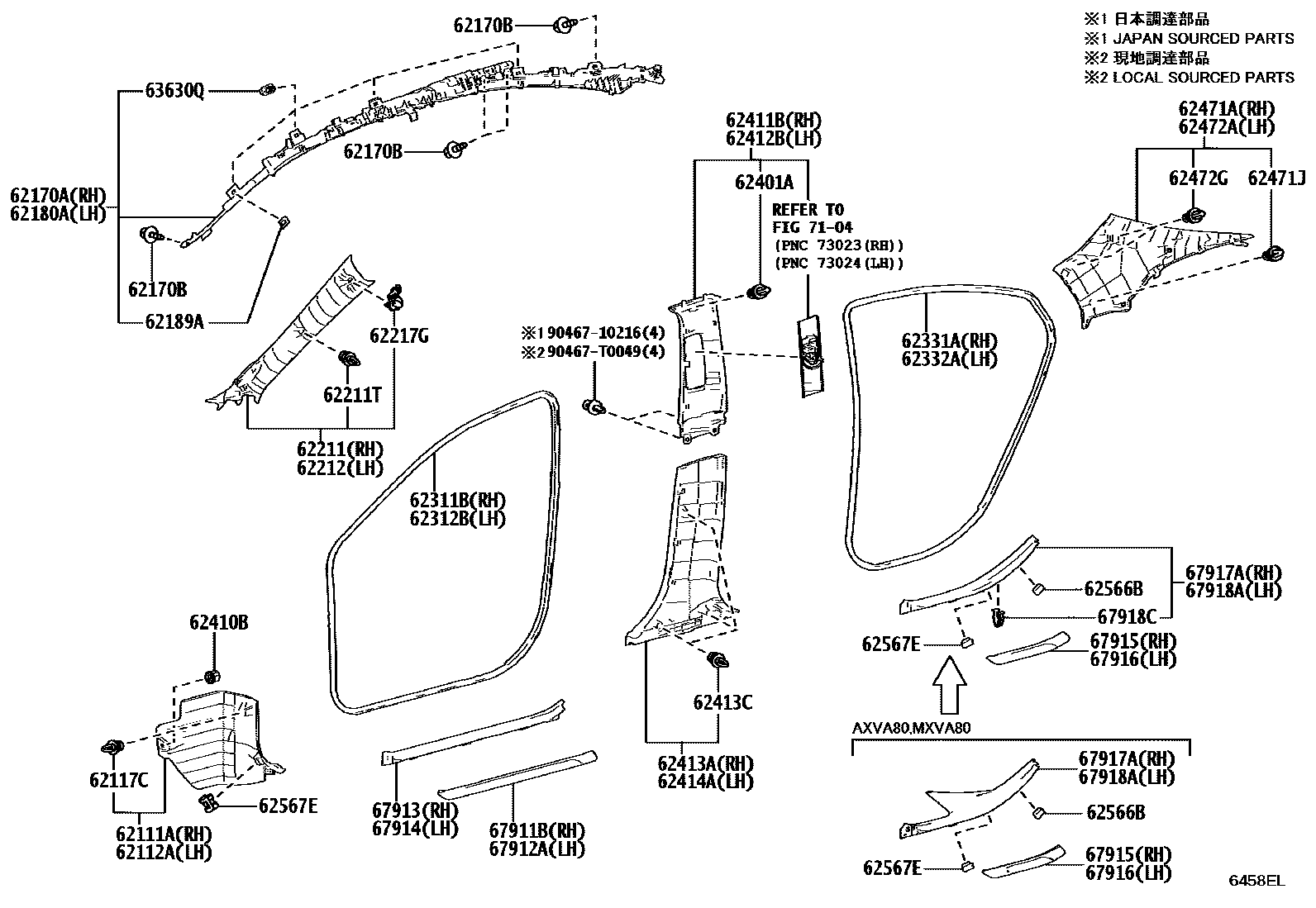

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,2#,4#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
BLACK,CHARCOAL,TRIM2#,4#
AUDIO-12.3INCH 6SPEAKER,BLACK,CHARCOAL,TRIM2#,4#
BLACK,CHARCOAL,TRIM2#,4#
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
BLACK,CHARCOAL,TRIM2#,4#
AUDIO-12.3INCH 6SPEAKER,BLACK,CHARCOAL,TRIM2#,4#
BLACK,CHARCOAL,TRIM2#,4#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62410BCLIP
62411BGARNISH, CENTER PILLAR, UPPER RH
BLACK,TRIM2#,4#
62412BGARNISH, CENTER PILLAR, UPPER LH
BLACK,TRIM2#,4#
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,4#
62471AGARNISH, ROOF SIDE, INNER RH
BLACK,TRIM2#,4#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
BLACK,TRIM2#,4#
62472GCLIP (FOR ROOF SIDE GARNISH)
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
63630QCLIP
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM0#,2#,4#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM0#,2#,4#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
67918CCLIP(FOR REAR SCUFF PLATE)
7104
9046710216
90467T0049
main90467-T0049
41 parts on this diagram · 1 diagram in section
