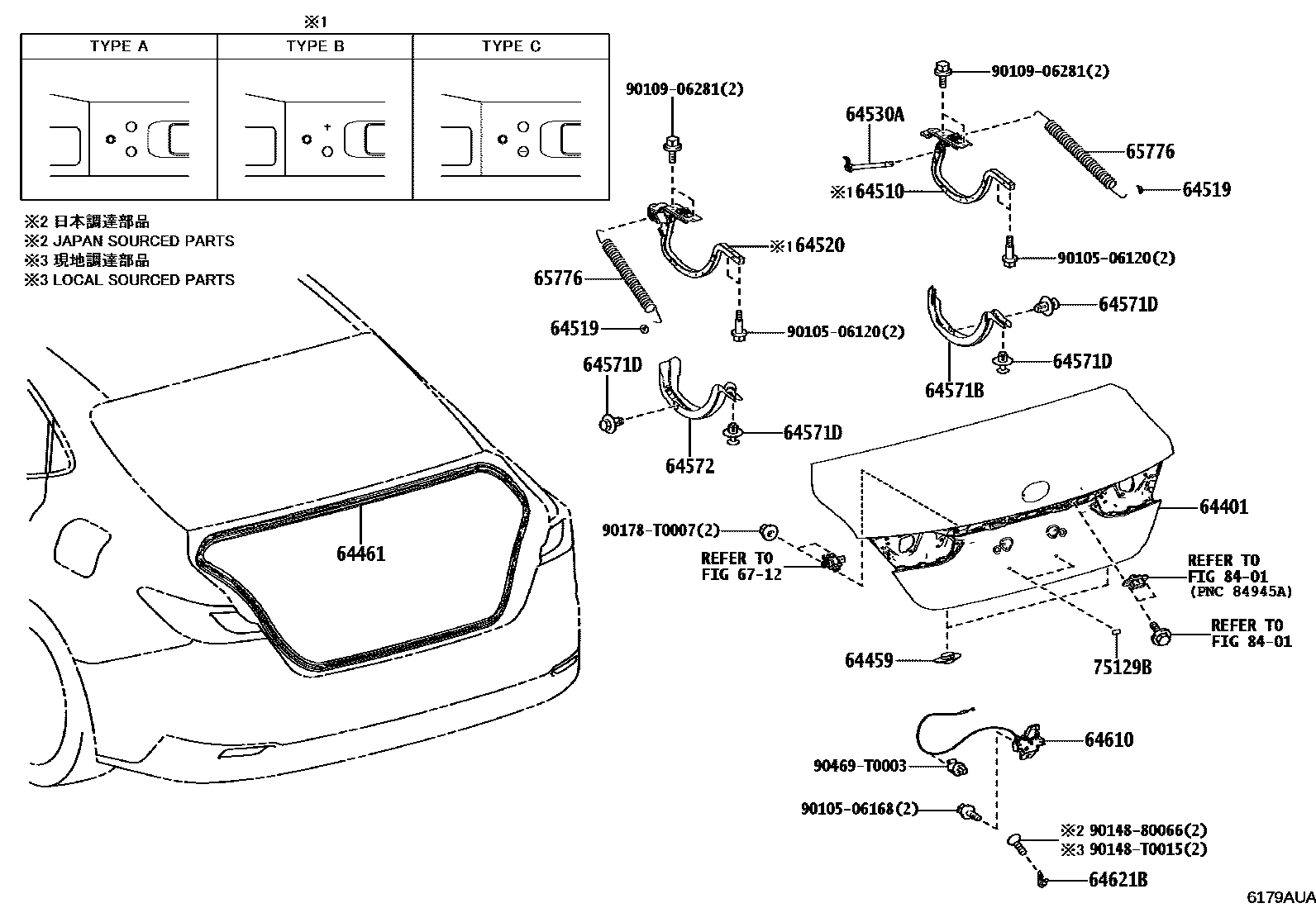

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-06C20iAXVA80,AXVH80,MXVA80202410

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-06020iAXVA80,AXVH80,MXVA80202410

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06250iAXVA80,AXVH80,MXVA80202410

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-06350iAXVA80,AXVH80,MXVA80202410

(L),TYPE B:REF ILL.

main64510-33181iAXVA80,AXVH80,MXVA80202410

(J),TYPE A:REF ILL.

main64510-33191iAXVA80,AXVH80,MXVA80202410

(J),TYPE B:REF ILL.

main64510-33201iAXVA80,AXVH80,MXVA80202410

(J),TYPE C:REF ILL.

64519BUSH, LUGGAGE DOOR HINGE SUPPORT

main64519-06270iAXVA80,AXVH80,MXVA80202410

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-06170iAXVA80,AXVH80,MXVA80202410

(L),TYPE B:REF ILL.

main64520-33071iAXVA80,AXVH80,MXVA80202410

(J),TYPE A:REF ILL.

main64520-33081iAXVA80,AXVH80,MXVA80202410

(J),TYPE B:REF ILL.

main64520-33091iAXVA80,AXVH80,MXVA80202410

(J),TYPE C:REF ILL.

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-06030iAXVA80,AXVH80,MXVA80202410

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-06120iAXVA80,AXVH80,MXVA80202410

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-08186-C3iAXVA80,AXVH80,MXVA80202410

BLACK

sub90467-08186

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-06100iAXVA80,AXVH80,MXVA80202410

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-06160iAXVA80,AXVH80,MXVA80202410

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iAXVA80,AXVH80,MXVA80202410

65776SPRING, BACK DOOR STAY

main65776-33050iAXVA80,AXVH80,MXVA80202410

6712

75129BCUSHION, REAR LICENCE PLATE

main75129-13020iAXVA80,AXVH80,MXVA80202410

8401

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9014880066

main90148-80066

90148T0015

main90148-T0015

90178T0007

main90178-T0007

90469T0003

main90469-T0003

23 parts on this diagram · 1 diagram in section
