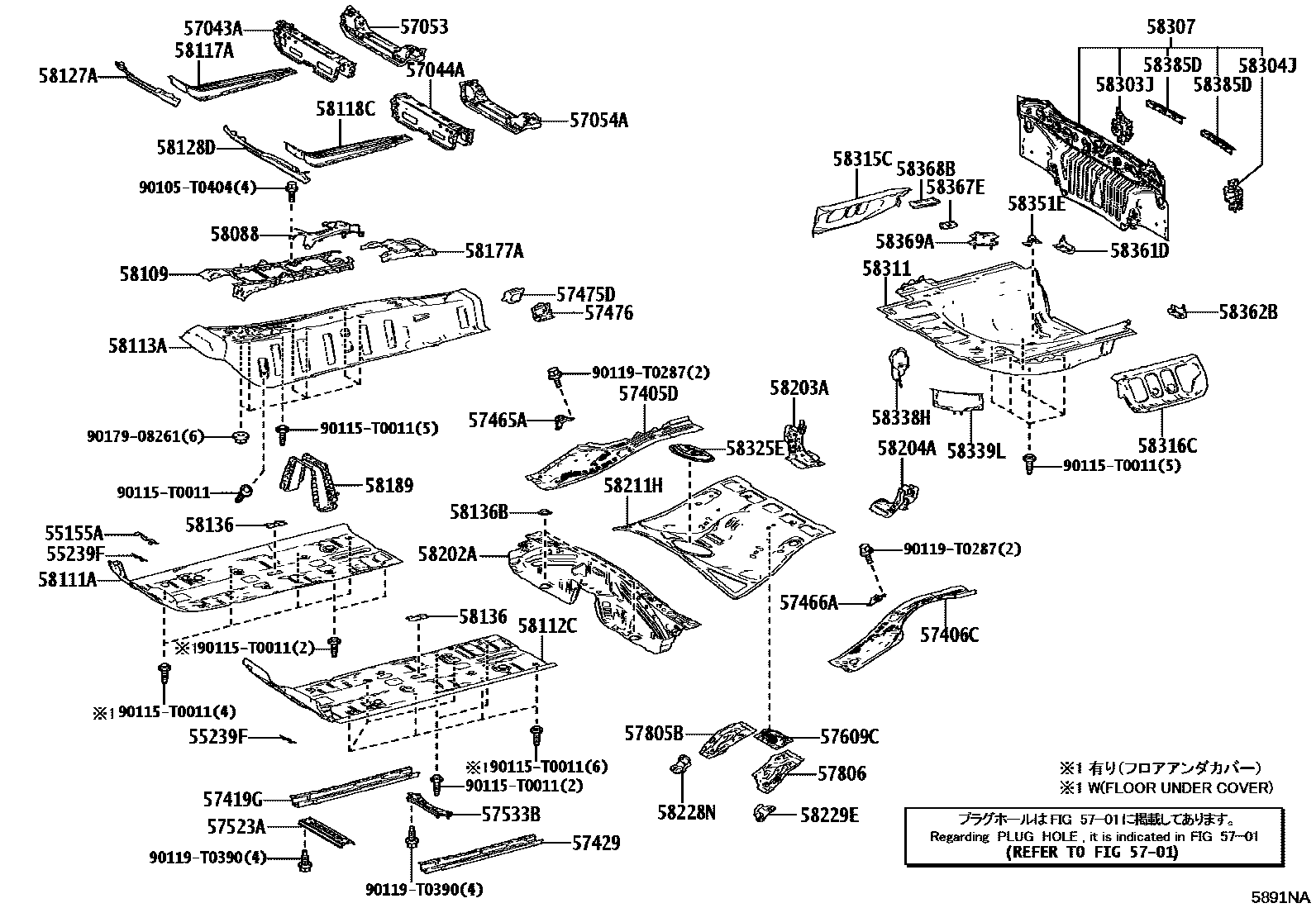

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

55155ABRACKET, ACCELERATOR PEDAL

main55155-06040iAXVA80,AXVH80..RHD202410

55239FPLATE, DASH PANEL INSULATOR, NO.3

main55239-06070×2iAXVA80,AXVH80,MXVA80202410

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-06090iAXVA80,AXVH80,MXVA80202410

(L)

main57043-33060iAXVA80,AXVH80,MXVA80202410

(J)

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-06090iAXVA80,AXVH80,MXVA80202410

(L)

main57044-33050iAXVA80,AXVH80,MXVA80202410

(J)

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-06080iAXVA80,AXVH80,MXVA80202410

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-06130iAXVA80,AXVH80,MXVA80202410

57405DRAIL SUB-ASSY, FLOOR SIDE, CENTER RH

main57405-06060iAXVA80,AXVH80,MXVA80202410

57406CRAIL SUB-ASSY, FLOOR SIDE, CENTER LH

main57406-06070iAXVA80,AXVH80,MXVA80202410

57419GREINFORCEMENT, FRONT FLOOR UNDER, REAR RH

main57419-06140iAXVA80,AXVH80,MXVA80202410

(L)

main57419-33080iAXVA80,AXVH80,MXVA80202410

(J)

57429REINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57419-06140iAXVA80,AXVH80,MXVA80202410

(L)

main57419-33080iAXVA80,AXVH80,MXVA80202410

(J)

57465AGUSSET, CENTER FLOOR CROSSMEMBER, RH

main57465-06040iAXVA80,AXVH80,MXVA80202410

57466AGUSSET, CENTER FLOOR CROSSMEMBER, LH

main57466-06040iAXVA80,AXVH80,MXVA80202410

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-06080iAXVA80,AXVH80,MXVA80202410

(L)

main57475-33020iAXVA80,AXVH80,MXVA80202410

(J)

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-06070iAXVA80,AXVH80,MXVA80202410

(L)

main57476-33020iAXVA80,AXVH80,MXVA80202410

(J)

57523ABRACE, CENTER FLOOR CROSSMEMBER

main57523-06040iAXVA80,AXVH80,MXVA80202410

57533BBRACE, FRONT FLOOR, CENTER

main57533-06080iAXVA80,AXVH80,MXVA80..THAI202410

main57533-33040iAXVH80..IND202412

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-06090iAXVA80,AXVH80,MXVA80202410

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-06090iAXVA80,MXVA80202410

main57805-06100iAXVH80202410

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57805-06100iAXVH80202410

main57806-06050iAXVA80,MXVA80202410

58088BRACKET SUB-ASSY, FLOOR SHIFT LINK

main58088-06090iAXVH80,MXVA80..LHD202410

main58088-06100iAXVA80,AXVH80..RHD202410

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58109-06040iAXVA80,AXVH80,MXVA80202410

58111APAN, FRONT FLOOR, RH

main58111-06170iAXVA80,AXVH80,MXVA80202410

58112CPAN, FRONT FLOOR, LH

main58112-06050iAXVA80,AXVH80,MXVA80202410

58113APANEL, FRONT FLOOR, CENTER

main58113-06050iAXVA80,AXVH80,MXVA80202410

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-06040iAXVA80,AXVH80,MXVA80202410

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58117-06060iAXVA80,AXVH80,MXVA80202410

(L)

main58117-33020iAXVA80,AXVH80,MXVA80202410

(J)

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-06090iAXVA80,AXVH80,MXVA80202410

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-06020iAXVA80,AXVH80,MXVA80202410

58136COVER, FRONT FLOOR HOLE

main58136-33010×2iAXVA80,AXVH80,MXVA80202410

58136BCOVER, CENTER FLOOR HOLE

main58136-06080×2iAXVA80,AXVH80,MXVA80202410

58177AEXTENSION, FRONT FLOOR PANEL, RH

main58177-06040iAXVA80,AXVH80,MXVA80202410

58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET

main58189-06170iAXVA80,AXVH80,MXVA80202410

(L)

main58189-33080iAXVA80,AXVH80,MXVA80202410

(J)

58202APAN SUB-ASSY, CENTER FLOOR, FRONT

main58202-06090iAXVH80202410

main58202-06130iAXVA80,MXVA80202410

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-06050iAXVA80,AXVH80,MXVA80202410

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-06080iAXVA80,AXVH80,MXVA80202410

58211HPAN, CENTER FLOOR

main58211-06301iAXVA80,MXVA80202410

main58211-33201iAXVH80202410

58228NPATCH, CENTER FLOOR PANEL, NO.1

main58228-06040iAXVA80,MXVA80202410

58229EPATCH, CENTER FLOOR PANEL, NO.2

main58229-06040iAXVA80,MXVA80202410

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-06070iAXVA80,AXVH80,MXVA80202410

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-06080iAXVA80,AXVH80,MXVA80202410

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-06250iAXVA80,AXVH80,MXVA80202410

58311PAN, REAR FLOOR

main58311-06220iAXVA80,AXVH80,MXVA80202410

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-06070iAXVA80,MXVA80202410

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-06070iAXVA80,AXVH80,MXVA80202410

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06150iAXVA80,MXVA80202410

main58325-06160iAXVH80202410

58338HREINFORCEMENT, REAR FLOOR PAN, NO.2 RH

main58338-06080iAXVA80,AXVH80,MXVA80202410

58339LREINFORCEMENT, REAR FLOOR PAN, NO.2 LH

main58339-06090iAXVA80,AXVH80,MXVA80202410

58351EBRACKET, SPARE WHEEL CLAMP

main58351-06070iAXVA80,AXVH80,MXVA80202410

58361DREINFORCEMENT, REAR FLOOR PANEL, NO.1 RH

main58361-06040iAXVA80,AXVH80,MXVA80202410

58362BREINFORCEMENT, REAR FLOOR PANEL, NO.1 LH

main58362-06040iAXVA80,AXVH80,MXVA80202410

58367EBRACKET, FUEL TUBE, NO.1

main58367-06050iAXVA80,AXVH80,MXVA80202410

58368BBRACKET, FUEL TUBE, NO.2

main58368-06060iAXVA80,AXVH80,MXVA80202410

58369ABRACKET, FUEL TUBE, NO.3

main58369-06120iAXVA80,MXVA80202410

main58369-06130iAXVH80202410

58385DBRACKET, REAR BUMPER COVER

main58385-06180×2iAXVA80,AXVH80,MXVA80202410

90105T0404

main90105-T0404

90115T0011

main90115-T0011

90119T0287

main90119-T0287

90119T0390

main90119-T0390

9017908261

main90179-08261
