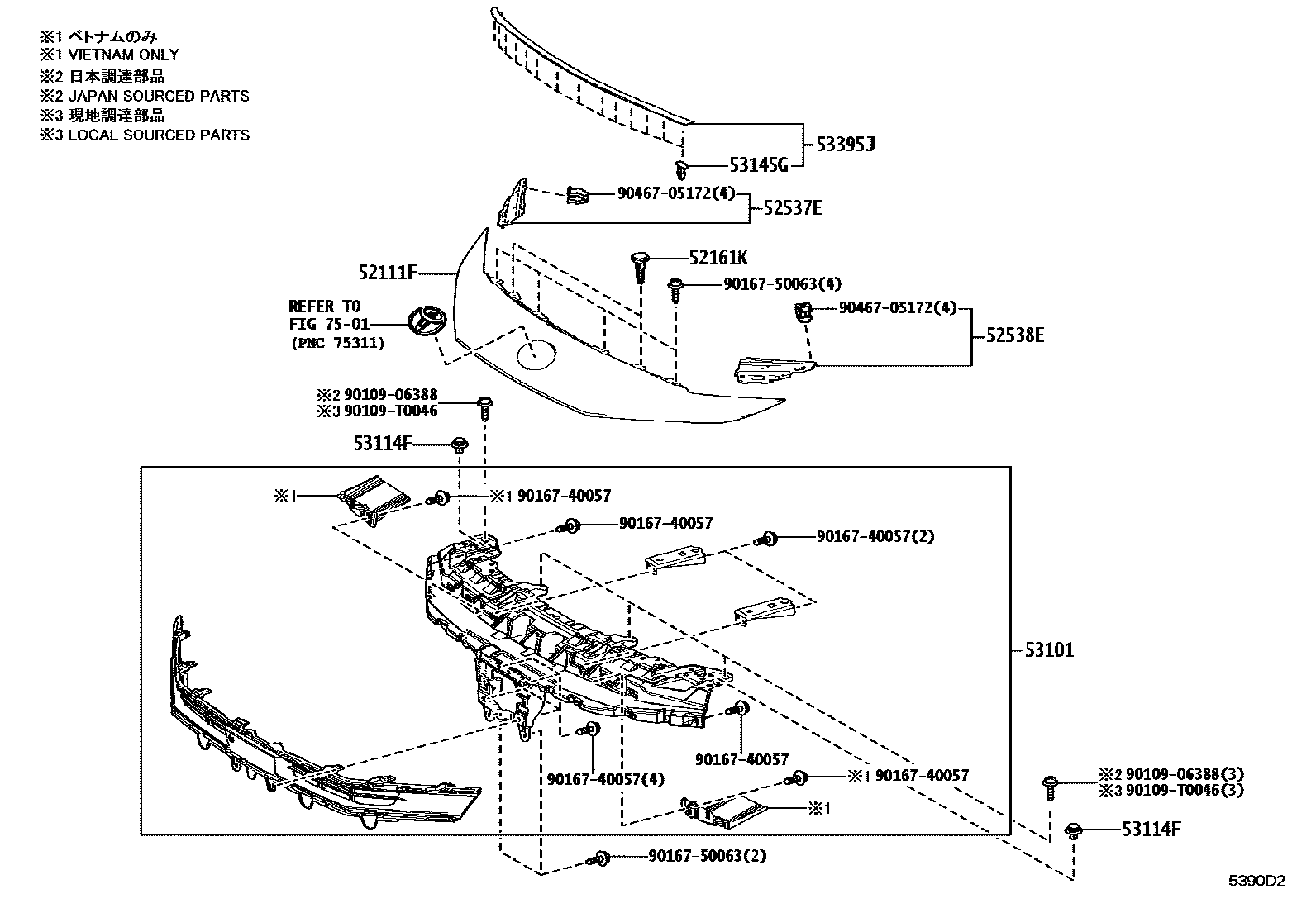

RADIATOR GRILLE

52111FBAR, FRONT BUMPER, CENTER

main52111-06905iAXVA80,AXVH80,MXVA80202410

52161KPIECE, FRONT BUMPER

main52161-0K040×2iAXVA80,AXVH80,MXVA80202410

52537ERETAINER, FRONT BUMPER END, RH

main52537-06040iAXVA80,AXVH80,MXVA80202410

52538ERETAINER, FRONT BUMPER END, LH

main52538-06040iAXVA80,AXVH80,MXVA80202410

53101GRILLE SUB-ASSY, RADIATOR

main53101-06E80iAXVA80,AXVH80..G202410

NO PAINT REQ.

main53101-06G20iAXVH80..Q202410

NO PAINT REQ.

main53101-06J50iAXVA80,AXVH80..RHD..V202410

NO PAINT REQ.,PHILIPPINES SPEC

main53101-06J70iMXVA80202410

NO PAINT REQ.

main53101-06J60supersedes 53101-06J80iAXVH80..LHD202410

NO PAINT REQ.

53114FCLIP, RADIATOR GRILLE

main90467-07215×2iAXVA80,AXVH80,MXVA80202410

(J)

main90467-T0050×2iAXVA80,AXVH80,MXVA80202410

(L)

53145GCLIP, RADIATOR GRILLE

main53145-0K010×14iAXVA80,AXVH80,MXVA80202410

53395JSEAL, HOOD TO FRONT END PANEL

main53395-06180iAXVA80,AXVH80,MXVA80202410

7501

9010906388

main90109-06388

90109T0046

main90109-T0046

9016740057

main90167-40057

9016750063

main90167-50063

9046705172

main90467-05172

14 parts on this diagram · 1 diagram in section
