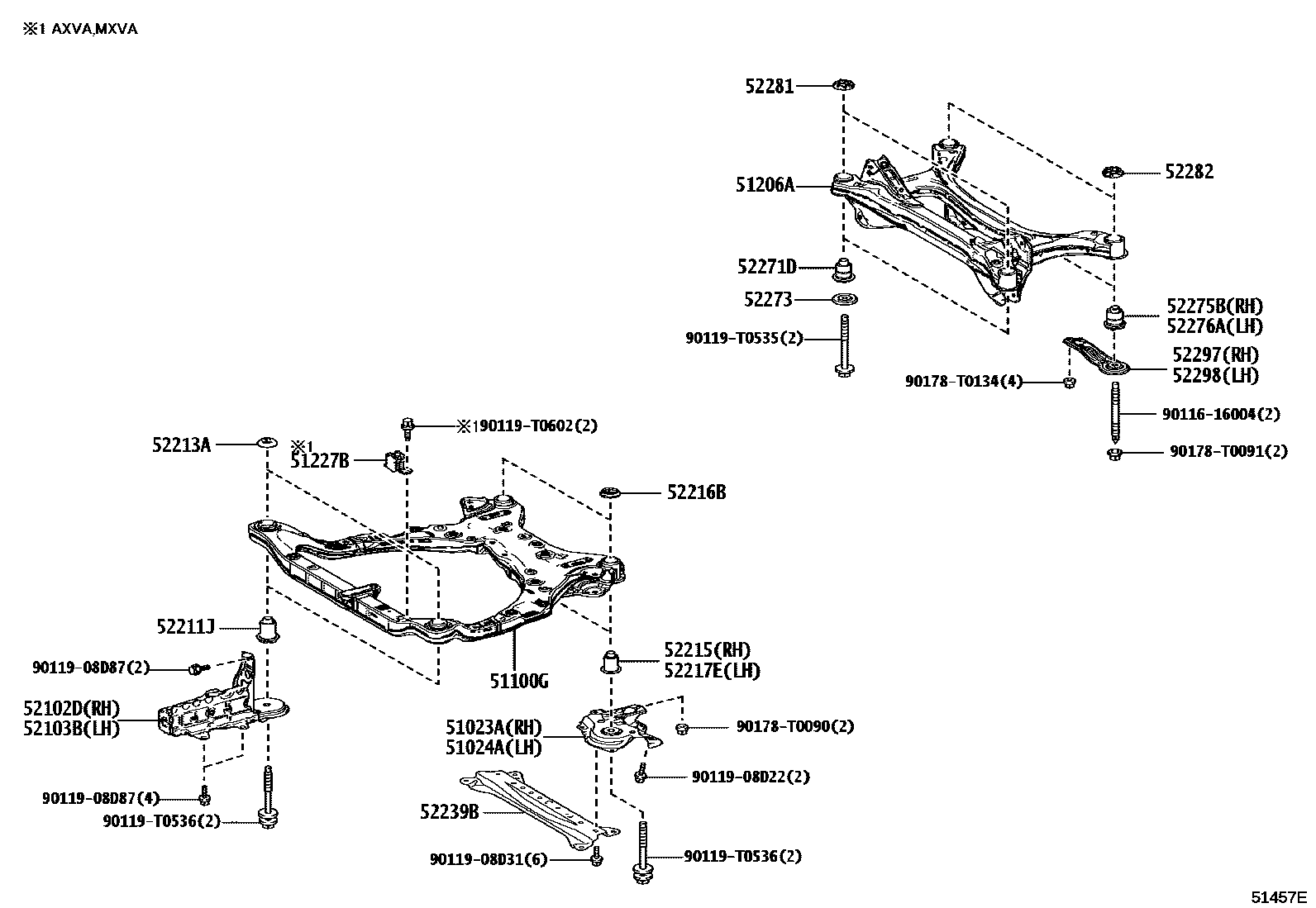

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1UNDER COVER 0003 1UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-06090iAXVA80,AXVH80,MXVA80202410

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-06080iAXVA80,AXVH80,MXVA80202410

51100GFRAME ASSY, FRONT

main51100-33130iAXVA80,AXVH80,MXVA80202410

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06160iAXVA80,AXVH80,MXVA80202410

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-33120iAXVA80,MXVA80202410

52102DEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-06040iAXVA80,AXVH80,MXVA80202410

52103BEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-06040iAXVA80,AXVH80,MXVA80202410

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-33100×2iAXVA80,AXVH80,MXVA80202410

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06200×2iAXVA80,AXVH80,MXVA80202410

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-33110iAXVA80,AXVH80,MXVA80202410

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06180×2iAXVA80,AXVH80,MXVA80202410

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-33040iAXVA80,AXVH80,MXVA80202410

52239BPLATE, BODY MOUNTING

main52239-06060iAXVA80,AXVH80,MXVA80202410

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-06160×2iAXVA80,AXVH80,MXVA80202410

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06070×2iAXVA80,AXVH80,MXVA80202410

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-06180iAXVA80,AXVH80,MXVA80202410

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-06040iAXVA80,AXVH80,MXVA80202410

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-06070×2iAXVA80,AXVH80,MXVA80202410

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-06100×2iAXVA80,AXVH80,MXVA80202410

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-06040iAXVA80,AXVH80,MXVA80202410

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-06040iAXVA80,AXVH80,MXVA80202410

9011616004

main90116-16004

9011908D22

main90119-08D22

9011908D31

main90119-08D31

9011908D87

main90119-08D87

90119T0535

main90119-T0535

90119T0536

main90119-T0536

90119T0602

main90119-T0602

90178T0090

main90178-T0090

90178T0091

main90178-T0091

90178T0134

main90178-T0134

31 parts on this diagram · 3 diagrams in section
