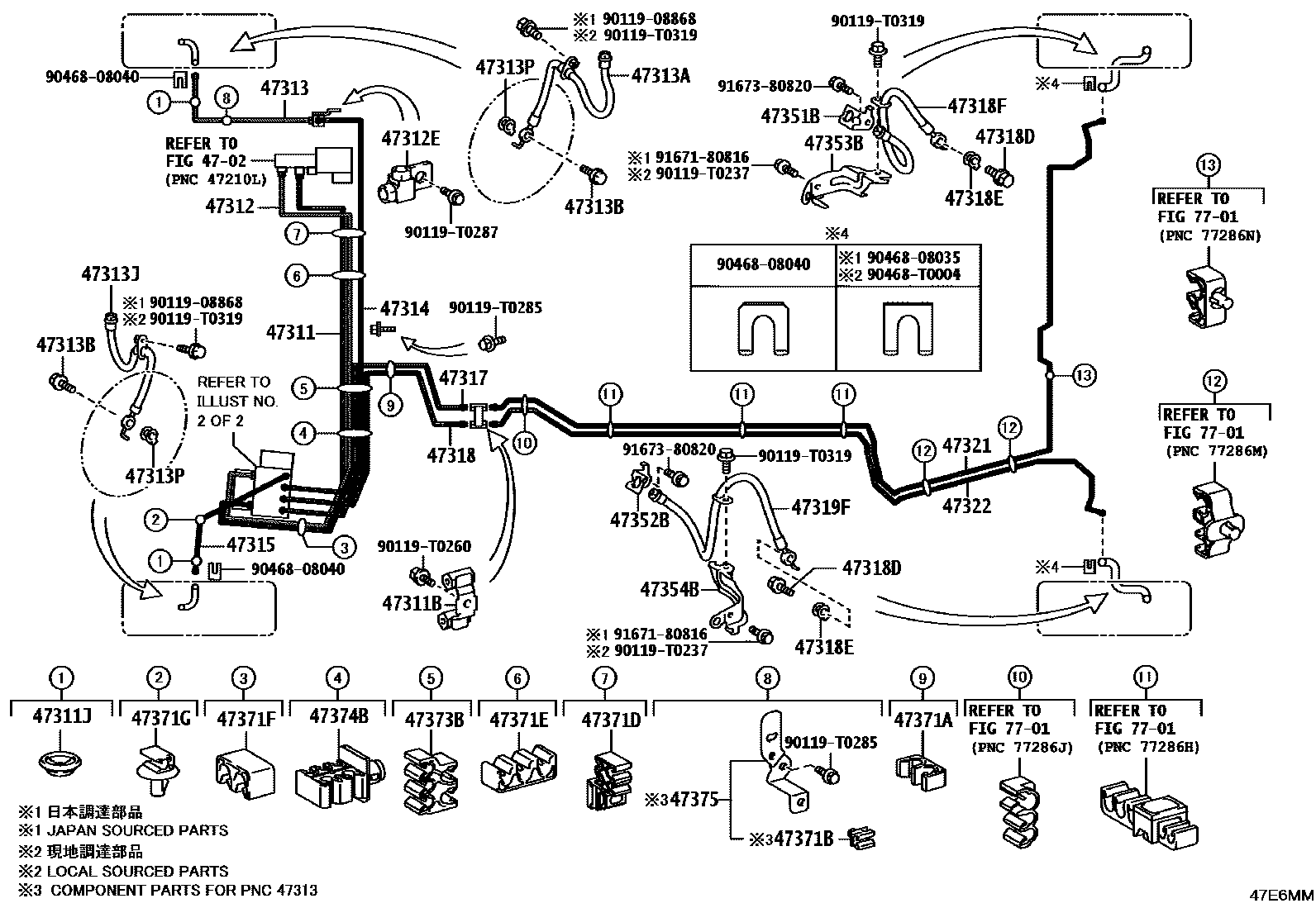

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE ACTUATOR 0006 1BRAKE ACTUATOR 0007 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-06830iMXVA80202410

main47311-06840iAXVA80202410

main47311-06850iAXVH80..LHD202410

main47311-06860iAXVH80..RHD202410

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iAXVA80,AXVH80,MXVA80202410

47311JGROMMET, NO.1(FOR FRONT BRAKE TUBE)

main90480-25037iAXVA80,AXVH80,MXVA80202410

47312TUBE, FRONT BRAKE, NO.2

main47312-06670iMXVA80202410

main47312-06680iAXVA80202410

main47312-06690iAXVH80..LHD202410

main47312-06700iAXVH80..RHD202410

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10272iMXVA80202410

main90412-10306iAXVA80202410

47313TUBE, FRONT BRAKE, NO.3

main47313-06630iAXVH80,MXVA80..LHD202410

main47313-06640iAXVA80202410

main47313-06660iAXVH80..RHD202410

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-T2191iAXVA80,AXVH80,MXVA80202410

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iAXVA80,AXVH80,MXVA80202410

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-T2192iAXVA80,AXVH80,MXVA80202410

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iAXVA80,AXVH80,MXVA80202410

47314TUBE, FRONT BRAKE, NO.4

main47314-06600iMXVA80202410

main47314-06610iAXVA80202410

main47314-06620iAXVH80..LHD202410

47315TUBE, FRONT BRAKE, NO.5

main47315-06610iMXVA80202410

main47315-06620iAXVA80202410

main47315-06630iAXVH80..RHD202410

47317TUBE, FRONT BRAKE, NO.7

main47317-06720iMXVA80202410

main47317-06730iAXVA80202410

main47317-06740iAXVH80..LHD202410

main47317-06750iAXVH80..RHD202410

47318TUBE, FRONT BRAKE, NO.8

main47318-06290iMXVA80202410

main47318-06300iAXVA80202410

main47318-06310iAXVH80..LHD202410

main47318-06320iAXVH80..RHD202410

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iAXVA80,AXVH80,MXVA80202410

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iAXVA80,AXVH80,MXVA80202410

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-T2193iAXVA80,AXVH80,MXVA80202410

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-T2194iAXVA80,AXVH80,MXVA80202410

47321TUBE, REAR BRAKE, NO.1

main47321-06390iAXVH80202410

main47321-06430iAXVA80,MXVA80202410

47322TUBE, REAR BRAKE, NO.2

main47322-06390iAXVH80202410

main47322-06430iAXVA80,MXVA80202410

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-06100iAXVA80,AXVH80,MXVA80202410

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-06100iAXVA80,AXVH80,MXVA80202410

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-06080iAXVA80,AXVH80,MXVA80202410

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-06080iAXVA80,AXVH80,MXVA80202410

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00904iAXVA80,AXVH80,MXVA80202410

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D56iAXVA80,AXVH80..RHD202410

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01E30iAXVA80202410

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E43iAXVA80,AXVH80..RHD202410

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E23iAXVA80,AXVH80..RHD202410

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D17iAXVA80,AXVH80..RHD202410

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E40iAXVA80,AXVH80..RHD202410

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E79iAXVA80,AXVH80,MXVA80202410

47375CLAMP, BRAKE TUBE, NO.5

main47371-33340iAXVA80,AXVH80,MXVA80202410

7701

9011908868

main90119-08868

90119T0237

main90119-T0237

90119T0260

main90119-T0260

90119T0285

main90119-T0285

90119T0287

main90119-T0287

90119T0319

main90119-T0319

9046808035

main90468-08035

9046808040

main90468-08040

90468T0004

main90468-T0004

9167180816

main91671-80816

9167380820

main91673-80820

46 parts on this diagram · 7 diagrams in section
