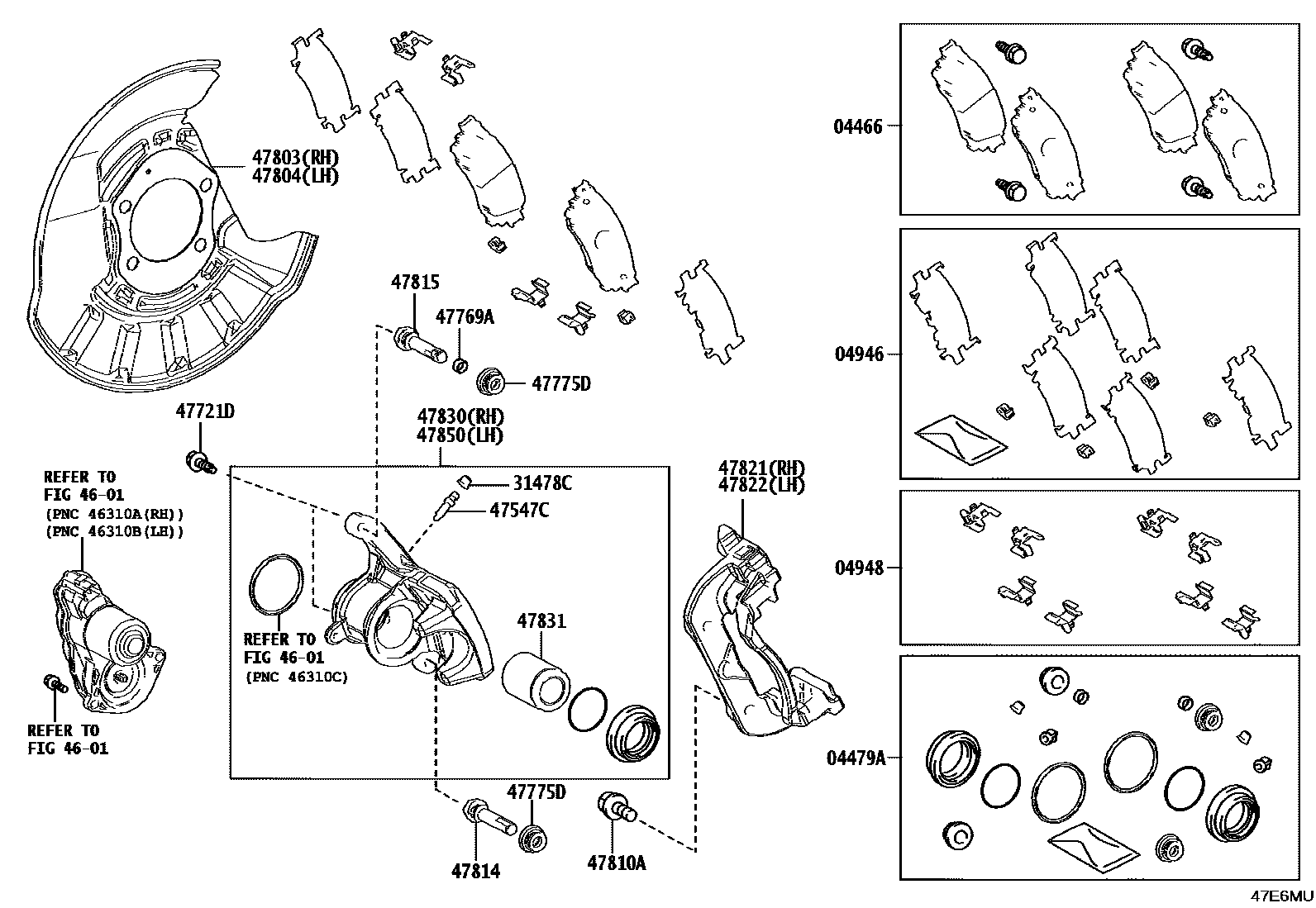

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-33230iAXVA80,AXVH80,MXVA80¥6,100202410

MARK AK NS554

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33390iAXVA80,AXVH80,MXVA80¥2,200202410

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-33090iAXVA80,AXVH80,MXVA80¥1,550202410

04948FITTING KIT, DISC BRAKE, REAR

main04948-33060iAXVA80,AXVH80,MXVA80¥1,730202410

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAXVA80,AXVH80,MXVA80¥160202410

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAXVA80,AXVH80,MXVA80¥200202410

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iAXVA80,AXVH80,MXVA80¥270202410

*8-1.00PX23-12.5

sub90016-AA614¥270

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010iAXVA80,AXVH80,MXVA80¥50202410

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-33270iAXVA80,AXVH80,MXVA80¥70202410

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-06020iAXVA80,AXVH80,MXVA80202410

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-06020iAXVA80,AXVH80,MXVA80202410

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iAXVA80,AXVH80,MXVA80¥130202410

(J)

main90105-T0379iAXVA80,AXVH80,MXVA80202410

(L)

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-78010iAXVA80,AXVH80,MXVA80¥510202410

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-78010iAXVA80,AXVH80,MXVA80¥510202410

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-10030iAXVA80,AXVH80,MXVA80¥4,380202410

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-10030iAXVA80,AXVH80,MXVA80¥4,380202410

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-33270iAXVA80,AXVH80,MXVA80¥26,100202410

47831PISTON, REAR DISC BRAKE

main47831-78010iAXVA80,AXVH80,MXVA80¥1,060202410

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-33270iAXVA80,AXVH80,MXVA80¥26,100202410

20 parts on this diagram · 1 diagram in section
