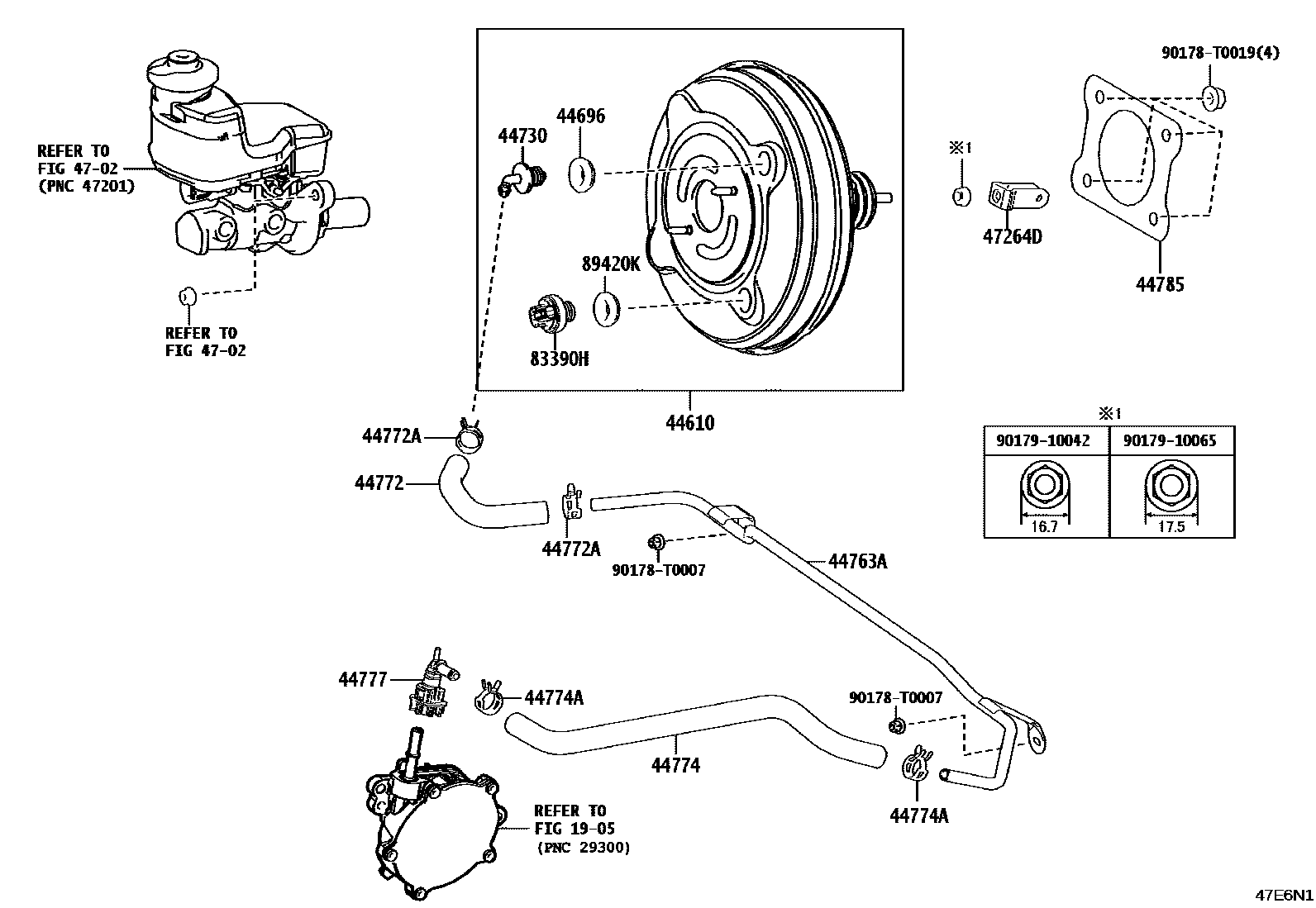

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-06680iMXVA80202410

main44610-06710iAXVA80202410

44696GROMMET, CHECK VALVE

main90480-24015iAXVA80,MXVA80202410

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iAXVA80202410

main44730-28030iMXVA80202410

44763ATUBE, HOSE TO HOSE, NO.1

main44763-06130iAXVA80202410

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-06400iAXVA80202410

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-T0054iAXVA80202410

(L)

main90467-16014iAXVA80202410

(J)

44774HOSE, UNION TO CONNECTOR TUBE

main44774-06180iAXVA80202410

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90466-T0054iAXVA80202410

(L)

main90467-16014iAXVA80202410

(J)

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-33010iAXVA80,MXVA80202410

44785GASKET, BRAKE BOOSTER

main44785-0D040iAXVA80,MXVA80202410

(L)

main44785-12040iAXVA80,MXVA80202410

(J)

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iAXVA80,MXVA80202410

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iAXVA80,MXVA80202410

89420KGROMMET, VACUUM SENSOR

main90480-24015iAXVA80,MXVA80202410

90178T0007

main90178-T0007

90178T0019

main90178-T0019

9017910042

main90179-10042

9017910065

main90179-10065

19 parts on this diagram · 2 diagrams in section
