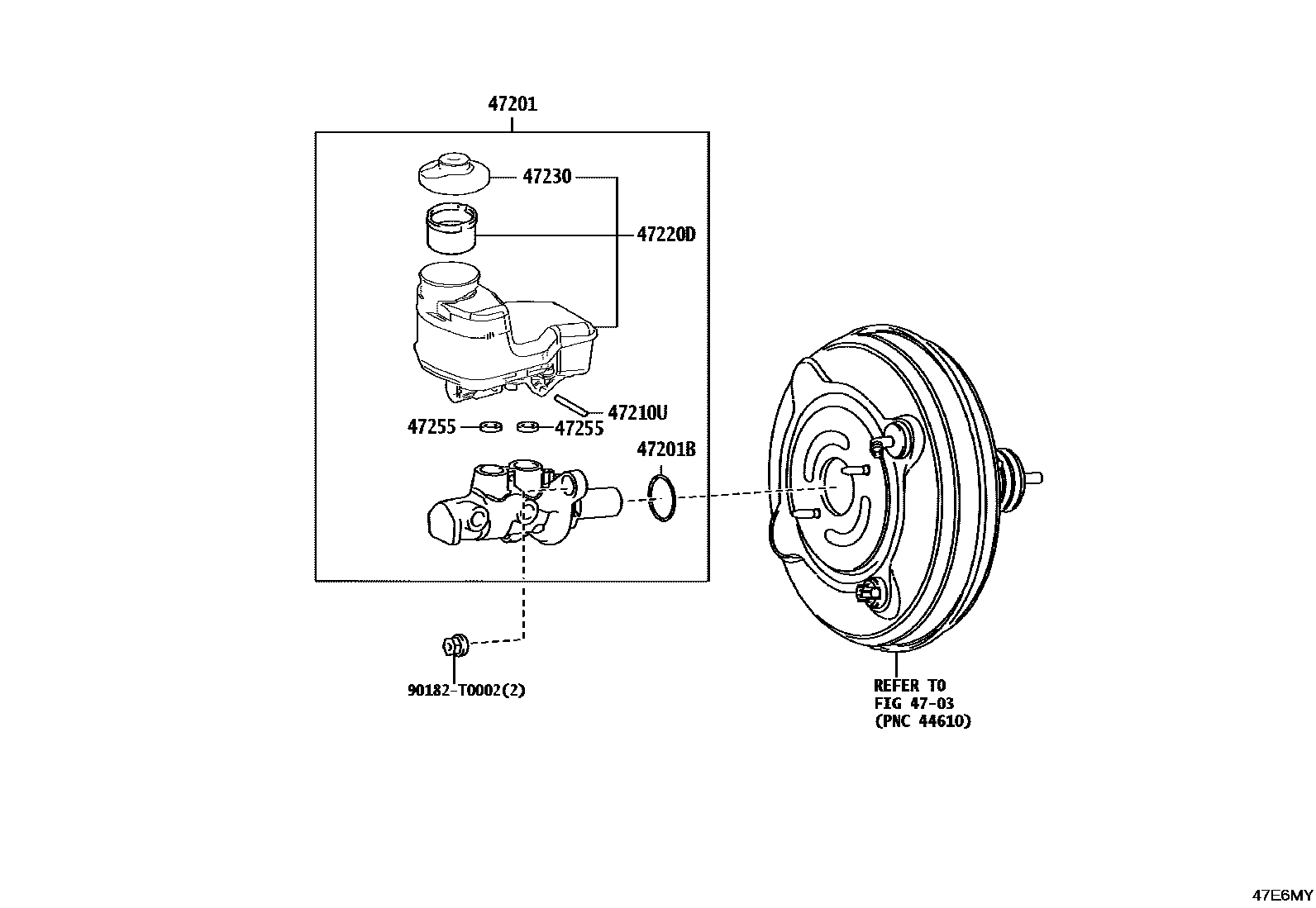

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06520iMXVA80202410

main47201-06540iAXVA80202410

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH001iAXVA80,MXVA80202410

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iAXVA80,MXVA80202410

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-06270iAXVA80,MXVA80202410

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAXVH80..LHD202410

main47230-BZ080iAXVA80,MXVA80202410

47255GROMMET, MASTER CYLINDER RESERVOIR

main90015-AT001iAXVA80,MXVA80202410

90182T0002

main90182-T0002

8 parts on this diagram · 3 diagrams in section
