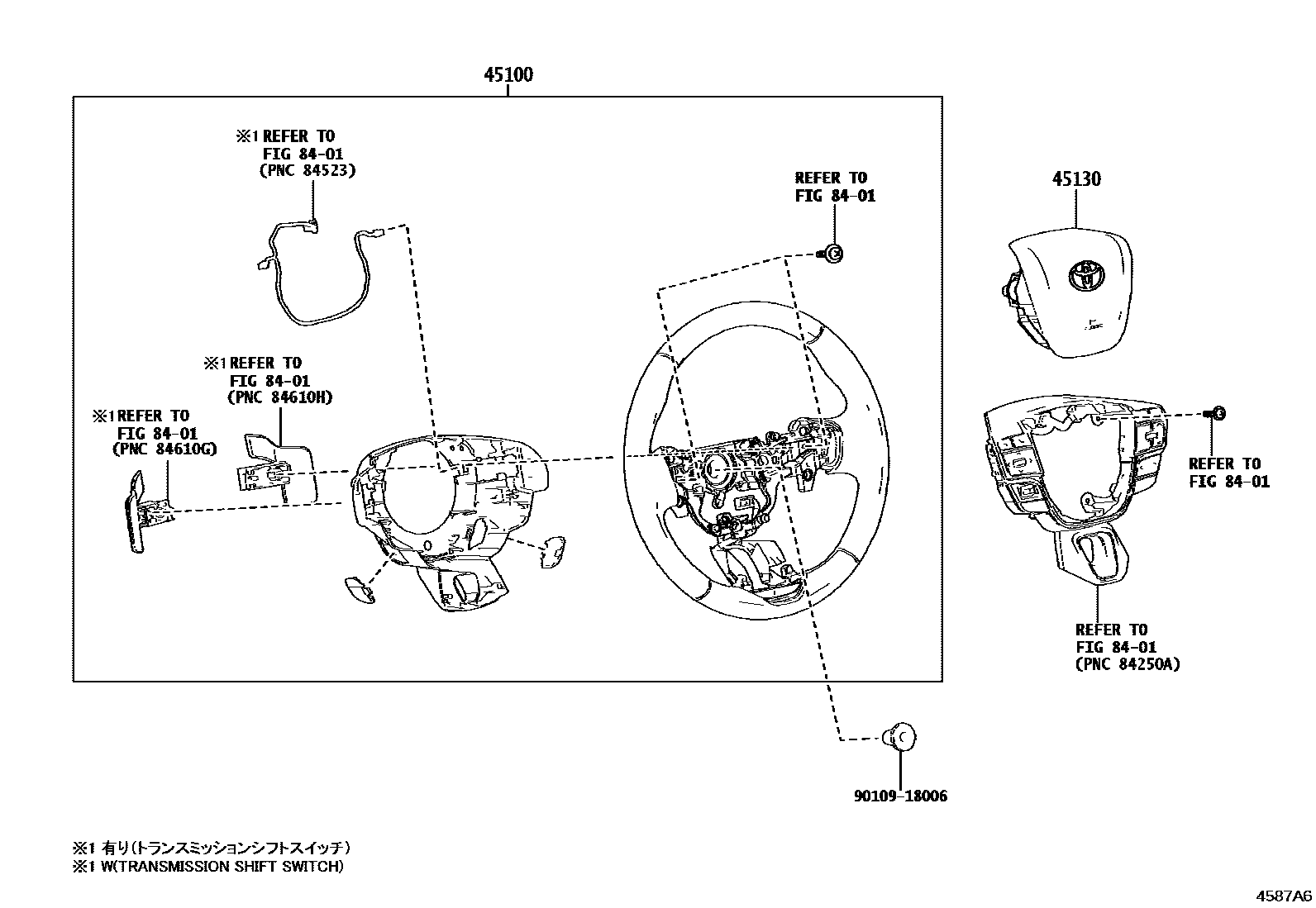

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-06U60-C0iMXVA80;AXVA80,AXVH80..G202410

3-SPOKE,LEATHER,BLACK,TRIM0#,2#,4#

main45100-06U70-C0iAXVA80,AXVH80..RHD..(Q,V)..THAI202410

3-SPOKE,LEATHER,BLACK,TRIM0#,2#,4#

main45100-33C40-C1iAXVH80..IND202412

3-SPOKE,LEATHER,BLACK,TRIM0#,2#,4#

45130BUTTON ASSY, HORN

main45130-06560-C0iAXVA80,AXVH80,MXVA80..THAI202410

BLACK,TRIM0#,2#,4#

main45130-33660-C0iAXVH80..IND202412

BLACK,TRIM0#,2#,4#

9010918006

main90109-18006

3 parts on this diagram · 2 diagrams in section
