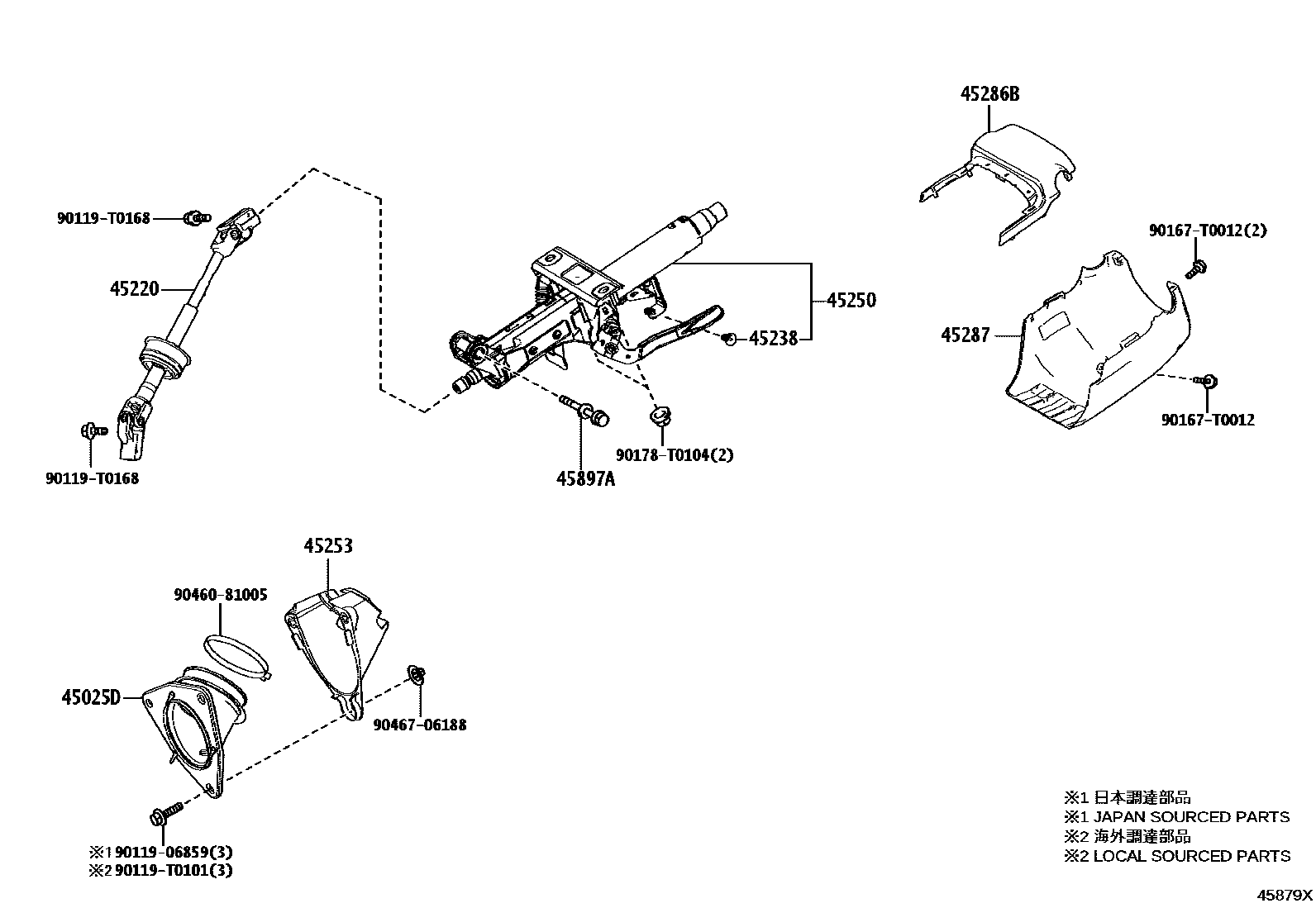

STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC 0002 1POWER TILT & TELESCOPIC 0003 1POWER TILT & TELESCOPIC

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06220iAXVA80,AXVH80,MXVA80202410

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06260iAXVH80,MXVA80..LHD202410

main45220-06270iAXVA80,AXVH80..RHD202410

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iMXVA80;AXVA80,AXVH80..V202410

main45238-52010iAXVA80,AXVH80..G,Q202410

45250COLUMN ASSY, STEERING

main45250-06C00iAXVA80,AXVH80..G,Q202410

main45250-46050iMXVA80;AXVA80,AXVH80..V202410

45253COVER, STEERING COLUMN HOLE

main45253-06200iAXVA80,AXVH80,MXVA80202410

45286BCOVER, STEERING COLUMN, UPR

main45286-06400-C0iAXVH80..Q202410

BLACK,TRIM2#,4#

main45286-06400-C0iAXVH80..Q202410

BLACK,TRIM0#,2#,4#

45287COVER, STEERING COLUMN, LWR

main45287-06550-C0iAXVH80..Q202410

BLACK,TRIM2#,4#

main45287-06550-C0iAXVH80..Q202410

BLACK,TRIM0#,2#,4#

main45287-06560-C0iMXVA80;AXVA80,AXVH80..V202410

BLACK,TRIM0#,2#,4#

45897ABOLT, TILT STEERING PAWL SET

main90119-T0441iAXVA80,AXVH80,MXVA80202410

9011906859

main90119-06859

90119T0101

main90119-T0101

90119T0168

main90119-T0168

90167T0012

main90167-T0012

90178T0104

main90178-T0104

9046081005

main90460-81005

9046706188

main90467-06188

15 parts on this diagram · 3 diagrams in section
