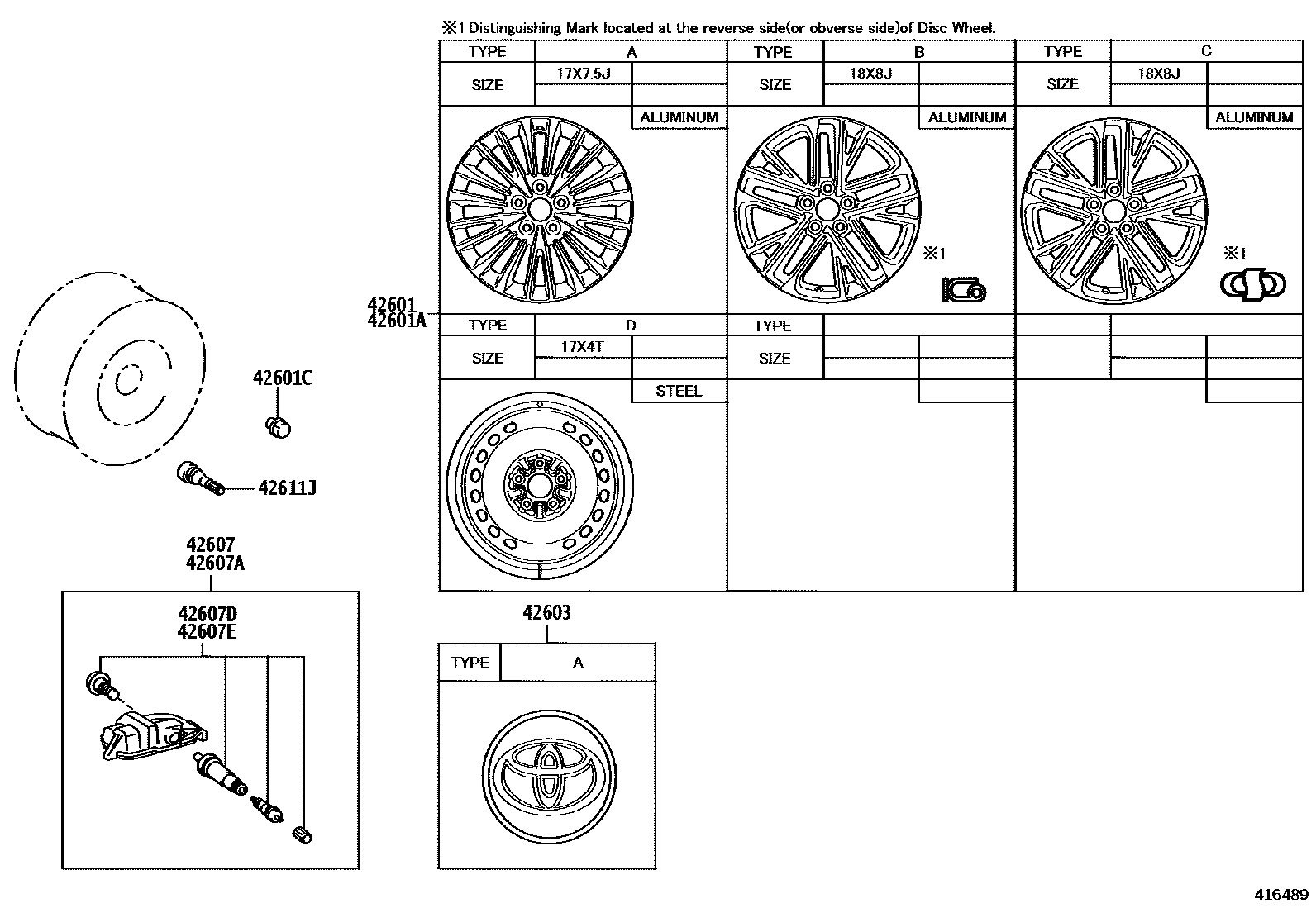

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
17X7.5J, #,TYPE A:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-215/55R17 7.5J SUMMER TIRE ALMINUM WHEEL,TYPE A:REFERILLUST.
18X8J, #,TYPE B:REFER ILLUST.
18X8J, #,TYPE C:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7.5J, #,BRUNEI SPEC&TIRE & DISC WHEEL-215/55R17 7.5J SUMMER TIRE ALMINUM WHEEL&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
17X7.5J, #,INDONESIA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J SUMMER TIRE ALMINUM WHEEL&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST.
17X7.5J, #,TIRE & DISC WHEEL-215/55R17 7.5J SUMMER TIRE ALMINUM WHEEL,TYPE A:REFERILLUST.
17X7.5J, #,TYPE A:REFER ILLUST.
18X8J, #,TYPE B:REFER ILLUST.
18X8J, #,BRUNEI SPEC&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
18X8J, #,INDONESIA SPEC&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST.
18X8J, #,TYPE C:REFER ILLUST.
17X4T,MALAYSIA SPEC,TYPE D:REFER ILLUST.
17X4T,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
BRUNEI SPEC&TIRE & DISC WHEEL-215/55R17 7.5J SUMMER TIRE ALMINUM WHEEL&SPARE TIRE-GROUND TIRE
BRUNEI SPEC&SPARE TIRE-GROUND TIRE
INDONESIA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J SUMMER TIRE ALMINUM WHEEL&SPARE TIRE-GROUND TIRE
INDONESIA SPEC&SPARE TIRE-GROUND TIRE
42607DVALVE, TIRE PRESSURE MONITOR
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
BRUNEI SPEC&TIRE & DISC WHEEL-215/55R17 7.5J SUMMER TIRE ALMINUM WHEEL&SPARE TIRE-GROUND TIRE
BRUNEI SPEC&SPARE TIRE-GROUND TIRE
INDONESIA SPEC&TIRE & DISC WHEEL-215/55R17 7.5J SUMMER TIRE ALMINUM WHEEL&SPARE TIRE-GROUND TIRE
INDONESIA SPEC&SPARE TIRE-GROUND TIRE
42611JVALVE (FOR TUBELESS TIRE SPARE)
MALAYSIA SPEC
9 parts on this diagram · 1 diagram in section
