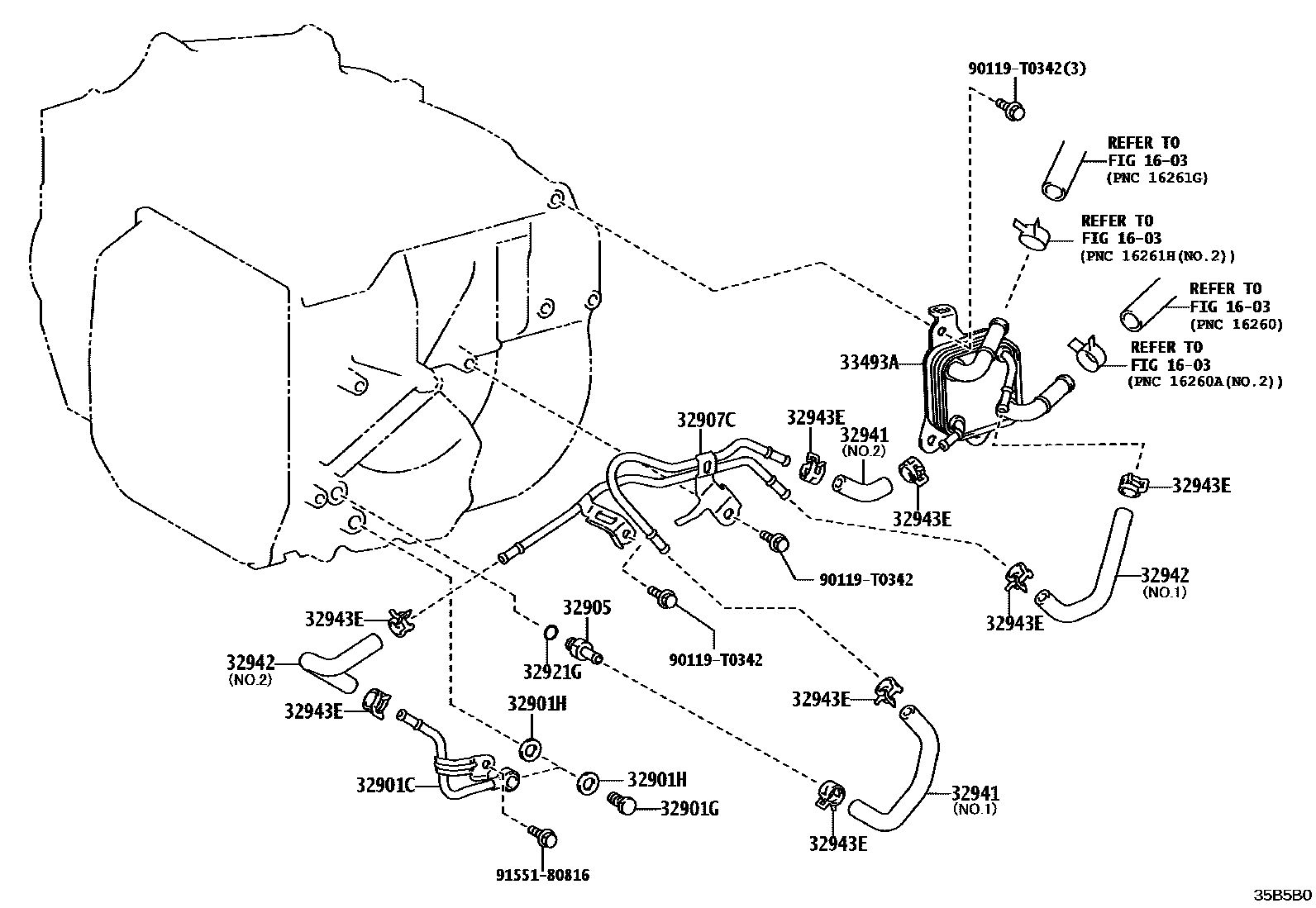

OIL COOLER & TUBE (ATM)

1603

32901CUNION SUB-ASSY, OIL COOLER

main32901-48020iAXVA80202410

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iAXVA80202410

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016×2iAXVA80202410

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iAXVA80202410

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-06070iAXVA80202410

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iAXVA80202410

32941HOSE, OIL COOLER INLET, NO.1

main32941-06180iAXVA80202410

NO.1:REFER ILLUST.

main32941-06190iAXVA80202410

NO.2:REFER ILLUST.

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-06170iAXVA80202410

NO.1:REFER ILLUST.

main32942-06180iAXVA80202410

NO.2:REFER ILLUST.

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×8iAXVA80202410

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-33061iAXVA80202410

90119T0342

main90119-T0342

9155180816

main91551-80816

13 parts on this diagram · 1 diagram in section
