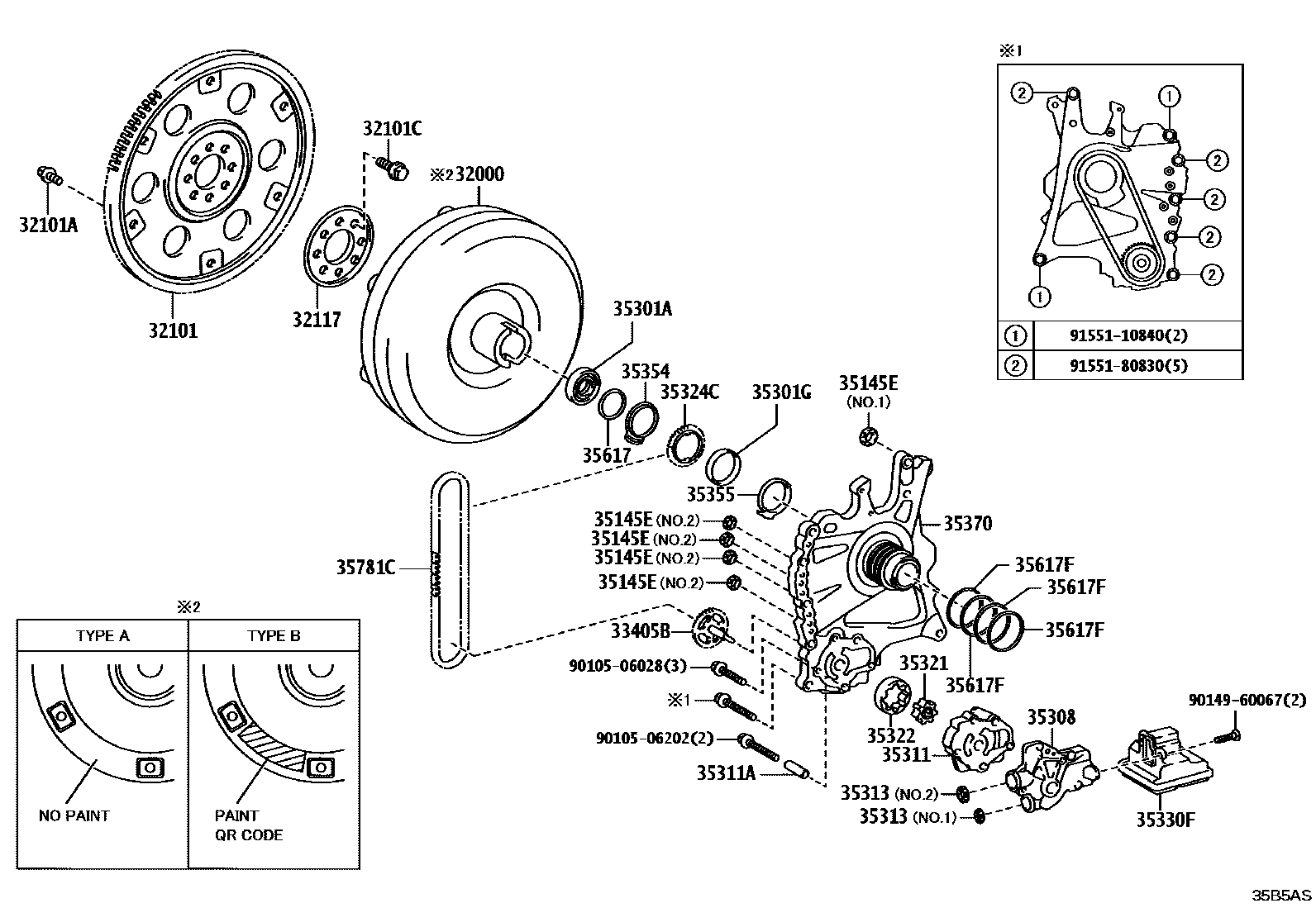

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*12-1.25PX20.3-14.3
32117SPACER, DRIVE PLATE, REAR
33405BSHAFT SUB-ASSY, OIL PUMP DRIVE
35145EGASKET, TRANSAXLE CASE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301GBEARING,NEEDLE ROLLER
35308COVER SUB-ASSY, FRONT OIL PUMP
35311BODY, FRONT OIL PUMP
35311APIN, RING
35313GASKET, FRONT OIL PUMP COVER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
35321GEAR, FRONT OIL PUMP DRIVE
T=16.66
35322GEAR, FRONT OIL PUMP DRIVEN
T=16.66
35324CSPROCKET, TRANSMISSION OIL PUMP DRIVE
35330FSTRAINER ASSY, OIL
35354WASHER, OIL PUMP SPROCKET THRUST, FRONT
35355WASHER, OIL PUMP SPROCKET THRUST, REAR
35370SHAFT ASSY, STATOR
35617RING, CLUTCH DRUM OIL SEAL
35617FRING, CLUTCH DRUM OIL SEAL
35781CCHAIN, TRANSMISSION DRIVE
9010506028
main90105-06028
9010506202
main90105-06202
9014960067
main90149-60067
9155110840
main91551-10840
9155180830
main91551-80830
28 parts on this diagram · 1 diagram in section
