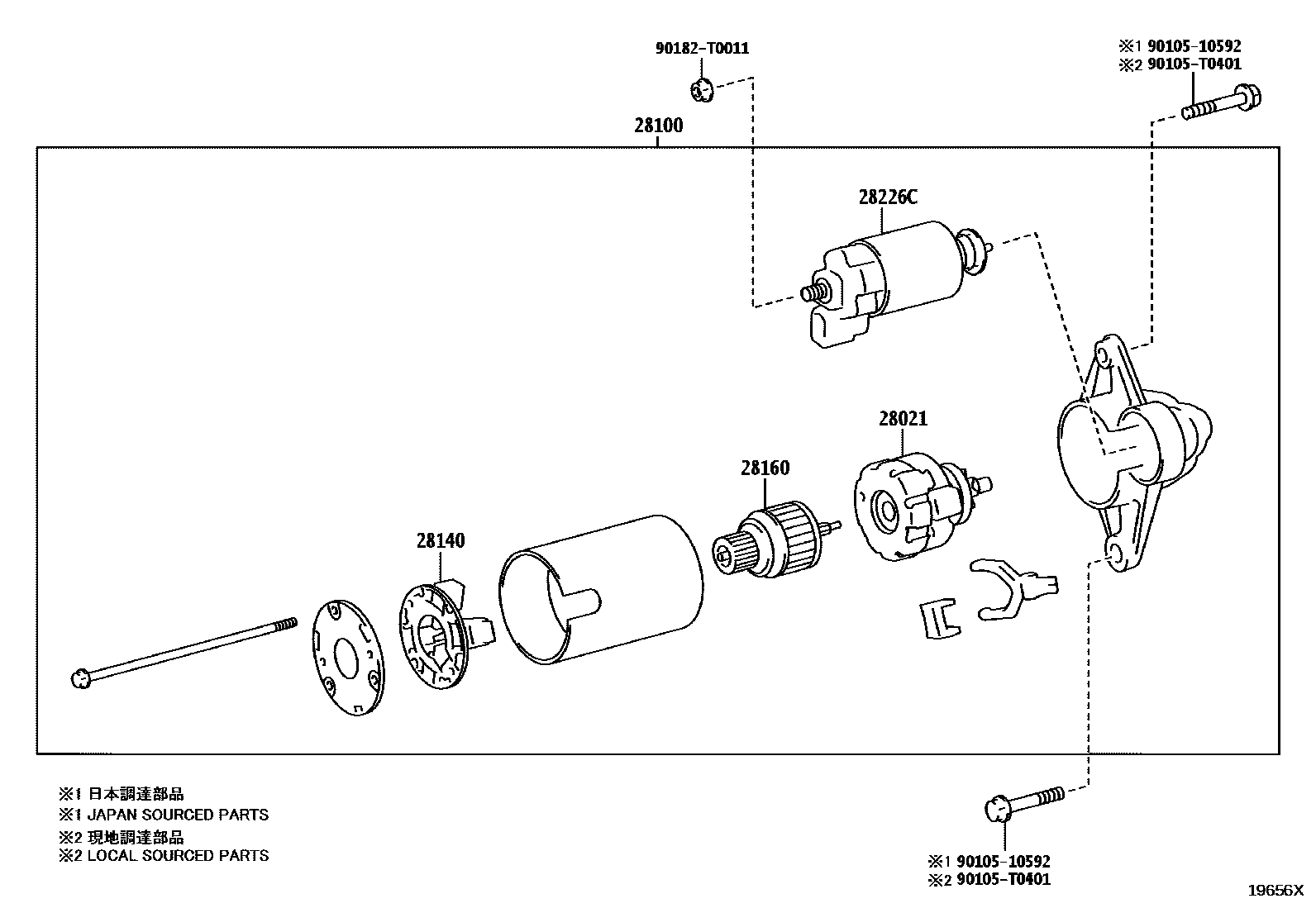

STARTER

0001 112V 1.2KW 0002 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20..MXVA80202410

main28021-K0040iA25..AXVA80202410

28100STARTER ASSY

main28100-24120iM20..MXVA80202410

12V 1.2KW

main28100-K0050iA25..AXVA80202410

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iA25,M20..AXVA80,MXVA80202410

28160ARMATURE ASSY, STARTER

main28160-21080iA25,M20..AXVA80,MXVA80202410

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-24120iM20..MXVA80202410

main28226-K0040iA25..AXVA80202410

9010510592

main90105-10592

90105T0401

main90105-T0401

90182T0011

main90182-T0011

8 parts on this diagram · 2 diagrams in section
