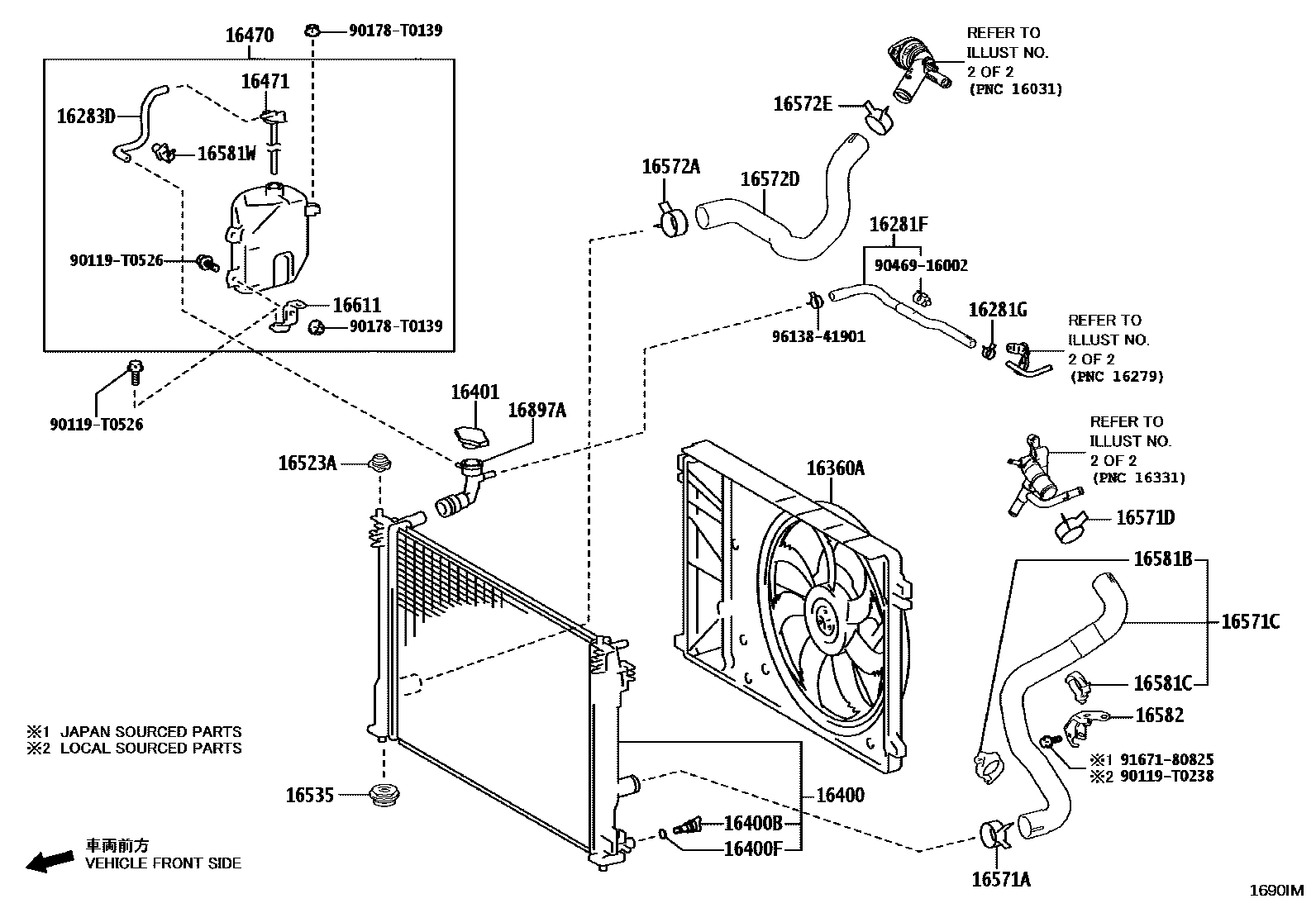

RADIATOR & WATER OUTLET
16281HOSE, WATER BY-PASS, NO.4
16281FHOSE, WATER BY-PASS, NO.5
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
16283HOSE, WATER BY-PASS, NO.6
16283DHOSE, WATER BY-PASS, NO.6
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
(L)
(J)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
(L)
(L)
(J)
(J)
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
(L)
(J)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
(L)
(J)
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
16581WCLAMP, HOSE(FOR WATER HOSE)
16582BRACKET, RADIATOR, NO.1
16611BRACKET, RADIATOR RESERVE TANK
90119T0238
main90119-T0238
90119T0526
main90119-T0526
90178T0139
main90178-T0139
9046916002
main90469-16002
9167180825
main91671-80825
9613841901
main96138-41901
32 parts on this diagram · 6 diagrams in section
