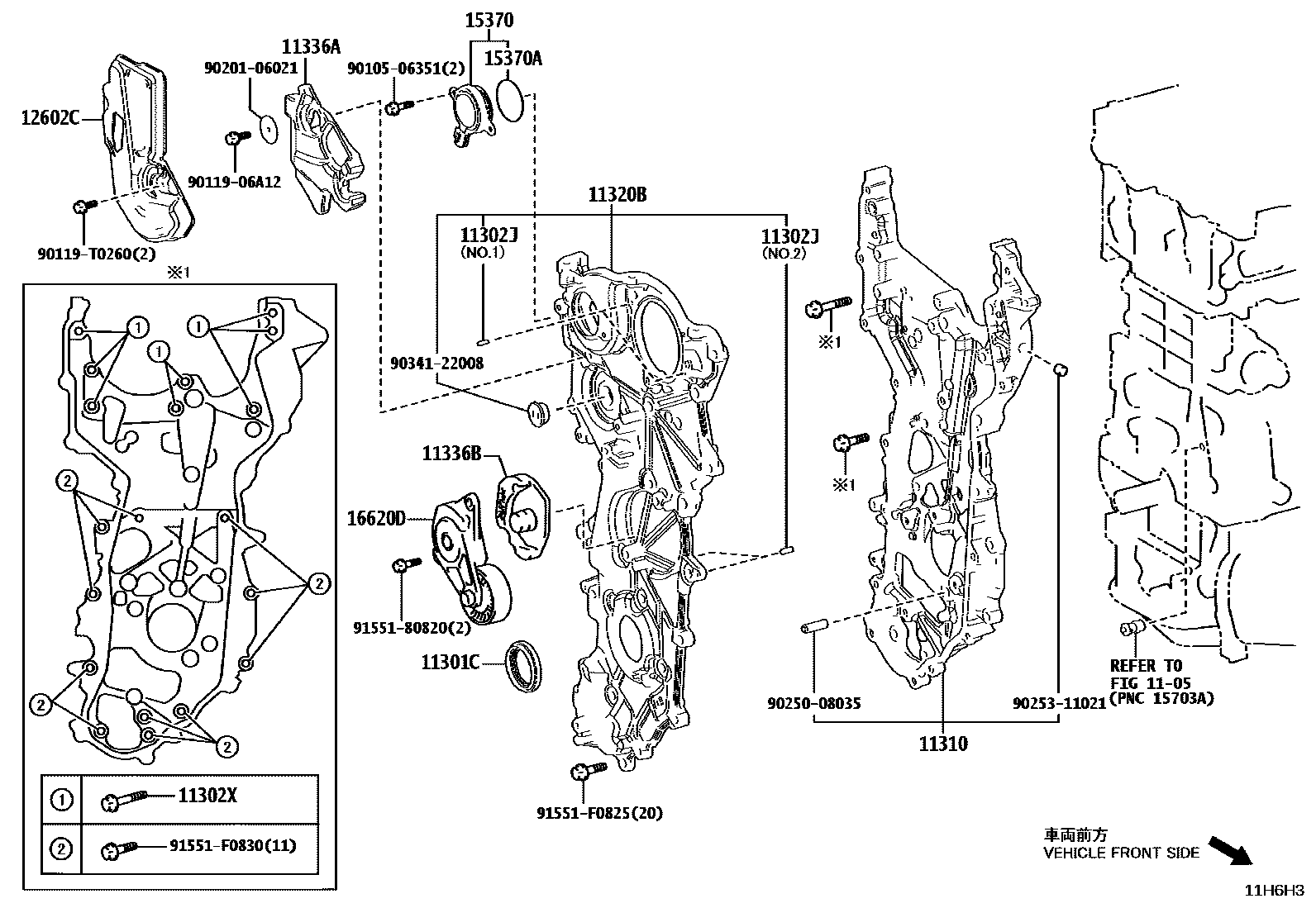

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40044iM20..MXVA80202410

11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)

main90250-04097iM20..MXVA80202410

NO.1:REFER ILLUST.

main90250-06003iM20..MXVA80202410

NO.2:REFER ILLUST.

11302XBOLT, FLANGE

main91551-F0845iA25..AXVA80,AXVH80202410

11310COVER ASSY, TIMING CHAIN

main11310-24010iM20..MXVA80202410

main11310-25030iA25..AXVA80,AXVH80202410

11320BCOVER ASSY, TIMING CHAIN, NO.2

main11320-24010iM20..MXVA80202410

main11320-25011iA25..AXVA80,AXVH80202410

11336AINSULATOR, TIMING GEAR COVER

main11336-25010iA25..AXVA80202410

11336BINSULATOR, TIMING CHAIN COVER

main11339-25010iA25..AXVA80202410

12602CCOVER, ENGINE, NO.2

main12612-25010iA25..AXVA80202410

15370SOLENOID ASSY, CAM TIMING OIL CONTROL

main15370-25020iM20..MXVA80202410

15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)

main90301-44006iM20..MXVA80202410

16620DTENSIONER ASSY, V-RIBBED BELT

main16620-24040iM20..MXVA80202410

main16620-25021iA25..AXVA80202410

9010506351

main90105-06351

9011906A12

main90119-06A12

90119T0260

main90119-T0260

9020106021

main90201-06021

9025008035

main90250-08035

9025311021

main90253-11021

9034122008

main90341-22008

9155180820

main91551-80820

91551F0825

main91551-F0825

91551F0830

main91551-F0830

22 parts on this diagram · 3 diagrams in section
