HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0009 1 0011 1

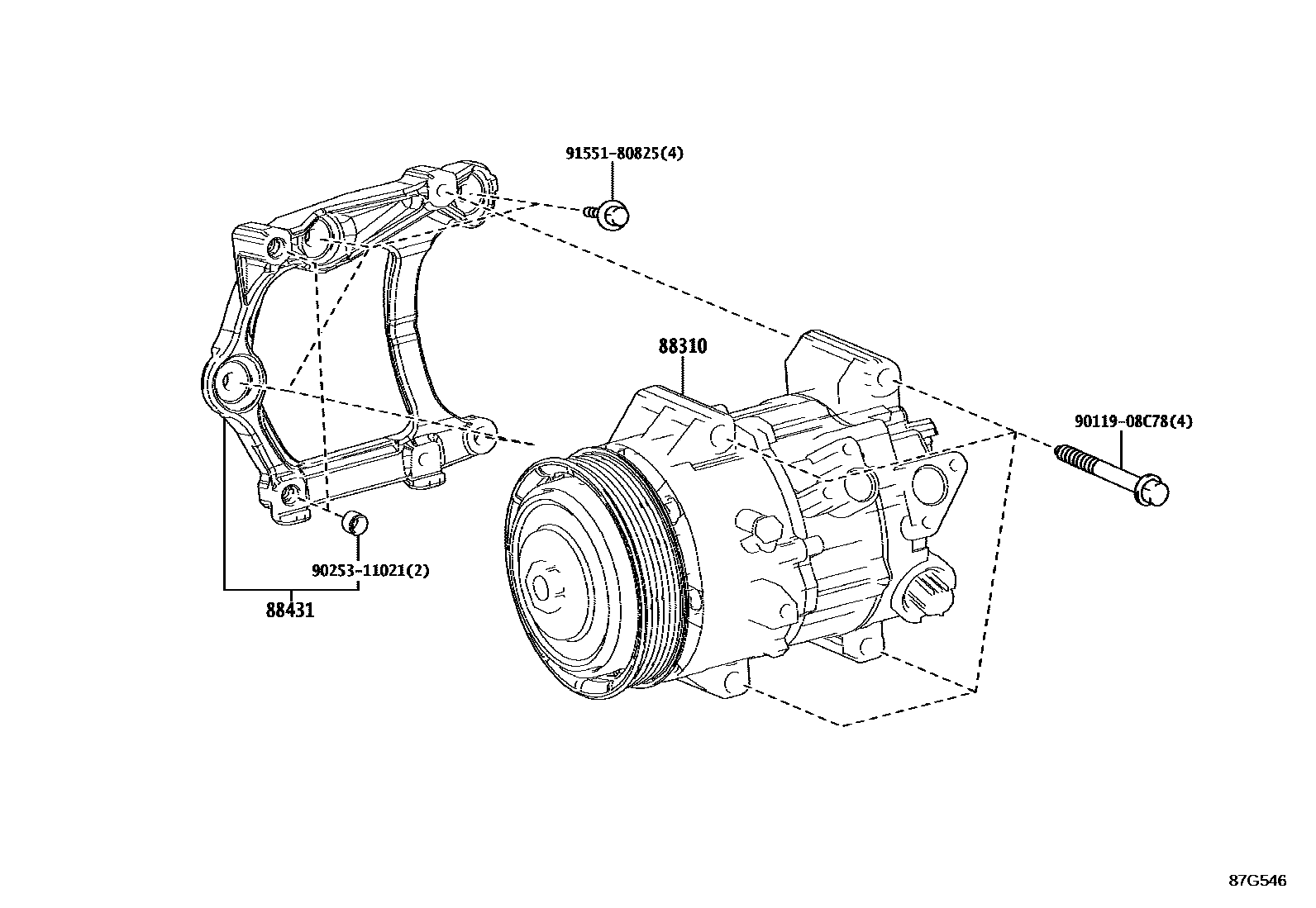

88310COMPRESSOR ASSY, W/PULLEY

main88310-33320iASV70..RUS201709-202104

main88310-33350iAXVA70201709-202203

main88310-33430iAXVA70..RHD202104

HONGKONG SPEC

main88310-42560iMXVA71202104-202203

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36010iASV70..EUR201709-202104

main88431-0E010iGSV70..RUS201804-201911

sub88431-0E040

main88431-0E040iGSV70..RUS201911-202203

main88431-48050iGSV70..EUR201709-202101

9011908C78

main90119-08C78

9025311021

main90253-11021

9155180825

main91551-80825

5 parts on this diagram · 8 diagrams in section
