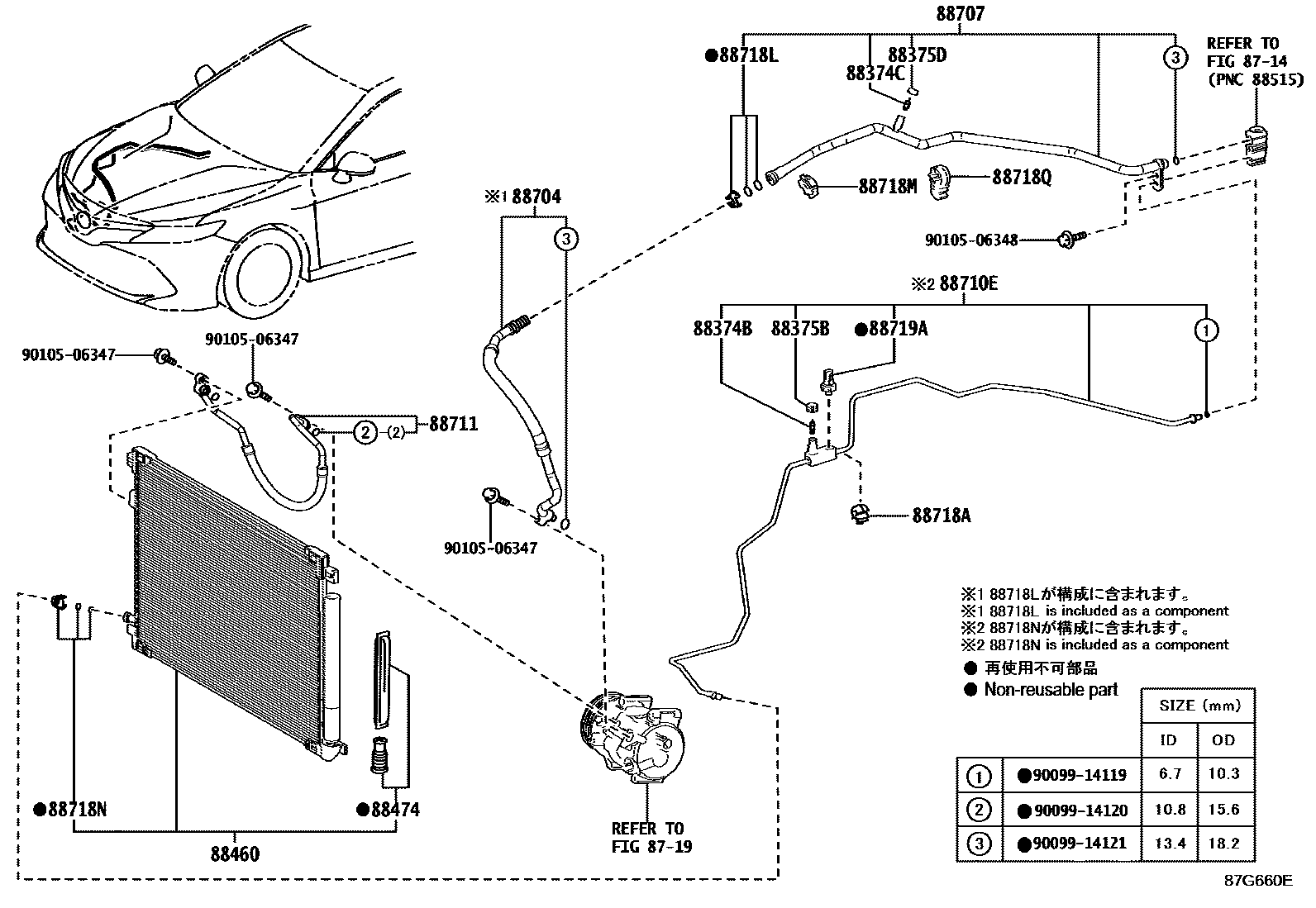

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0014 1 0016 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

main88374-33070iASV7#,GSV70..RUS202012-202203

88374CVALVE, SERVICE, NO.2

main88374-30010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

88375BCAP, SERVICE VALVE, NO.1

main88375-0E020iASV7#,GSV70..RUS201804-202012

main88375-30280iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main88375-30280iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

main88375-30280iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main88375-30320iAXVH71..D201902-202101

88375DCAP, SERVICE VALVE, NO.2

main88375-0E030iASV7#,GSV70..RUS201804-202203

main88375-30290iAXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

UKRAINE SPEC

main88375-30290iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

main88375-30290iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main88375-30310iAXVH71..D201902-202101

88460CONDENSER ASSY, COOLER

main884A0-33010iASV7#,GSV70..RUS201709-202203

main884A0-33030iAXVH7#201709-202312

88474DRYER, COOLER

main88474-12020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

88704HOSE SUB-ASSY, SUCTION

main88704-06230iGSV70..RUS201804-202203

main88704-33600iGSV70..EUR201709-202101

main88704-33610iASV70..EUR201709-202104

main88704-33620iAXVA70201709-202203

main88704-33630iAXVH70;AXVH71..RHD;AXVH71..LHD..D201709-202312

main88704-33680iMXVA71202104-202203

88707PIPE SUB-ASSY, SUCTION

main88707-06210iASV7#,GSV70..RUS201804-202203

main88707-33110iAXVH71..RHD..D201902-202101

main88707-33130iASV70,AXVA70,GSV70..LHD..EUR201709-202101

main88707-33140iAXVA70..RHD201709-202101

main88707-33180iAXVH71..RHD..(N,S)201709-202101

main88707-33190iAXVH71..LHD..D202102

UKRAINE SPEC

main88707-33190iAXVH7#..LHD..N201709-202312

main88707-33190iAXVH70202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main88707-33210iAXVH71..LHD..D201902-202101

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-06480iASV7#,GSV70..RUS201804-202011

main88710-06680iAXVA70,GSV70,MXVA71..RUS202012-202203

main88710-33450iAXVA70,GSV70..JPP..LHD201709-202101

main88710-33460iASV70..RHD201709-202101

main88710-33500iAXVH71..RHD..N201709-202101

main88710-33571iAXVH71..RHD..D201902-202101

main88710-33580iAXVH71..LHD..D202102

UKRAINE SPEC

main88710-33580iAXVH7#..LHD..N201709-202312

main88710-33580iAXVH70202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main88710-33600iAXVH71..LHD..D201902-202101

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06390iGSV70..RUS201804-202203

main88711-33310iGSV70..EUR201709-202101

main88711-33320iASV70..EUR201709-202104

main88711-33330iAXVA70..JPP201709-202203

main88711-33340iAXVH71..LHD..N201709-202312

main88711-33380iMXVA71202104-202203

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-33560iAXVH71..LHD..N202311-202312

main88718-58050iAXVH7#201709-202310

88718LCLAMP, PIPING

main88718-52280iASV7#,GSV70..RUS201709-202312

88718MCLAMP, PIPING

main88718-33520iASV70,AXVA70,GSV70201709-201801

main88718-42110iAXVA70,GSV70..JPP201802-202312

88718NCLAMP, PIPING

main88718-1E150iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

88718QCLAMP, PIPING

main88718-06600iAXVA70,GSV70,MXVA71..RUS201804-202203

main88718-33490iASV70,AXVA70,GSV70..EUR201709-202101

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

23 parts on this diagram · 12 diagrams in section
