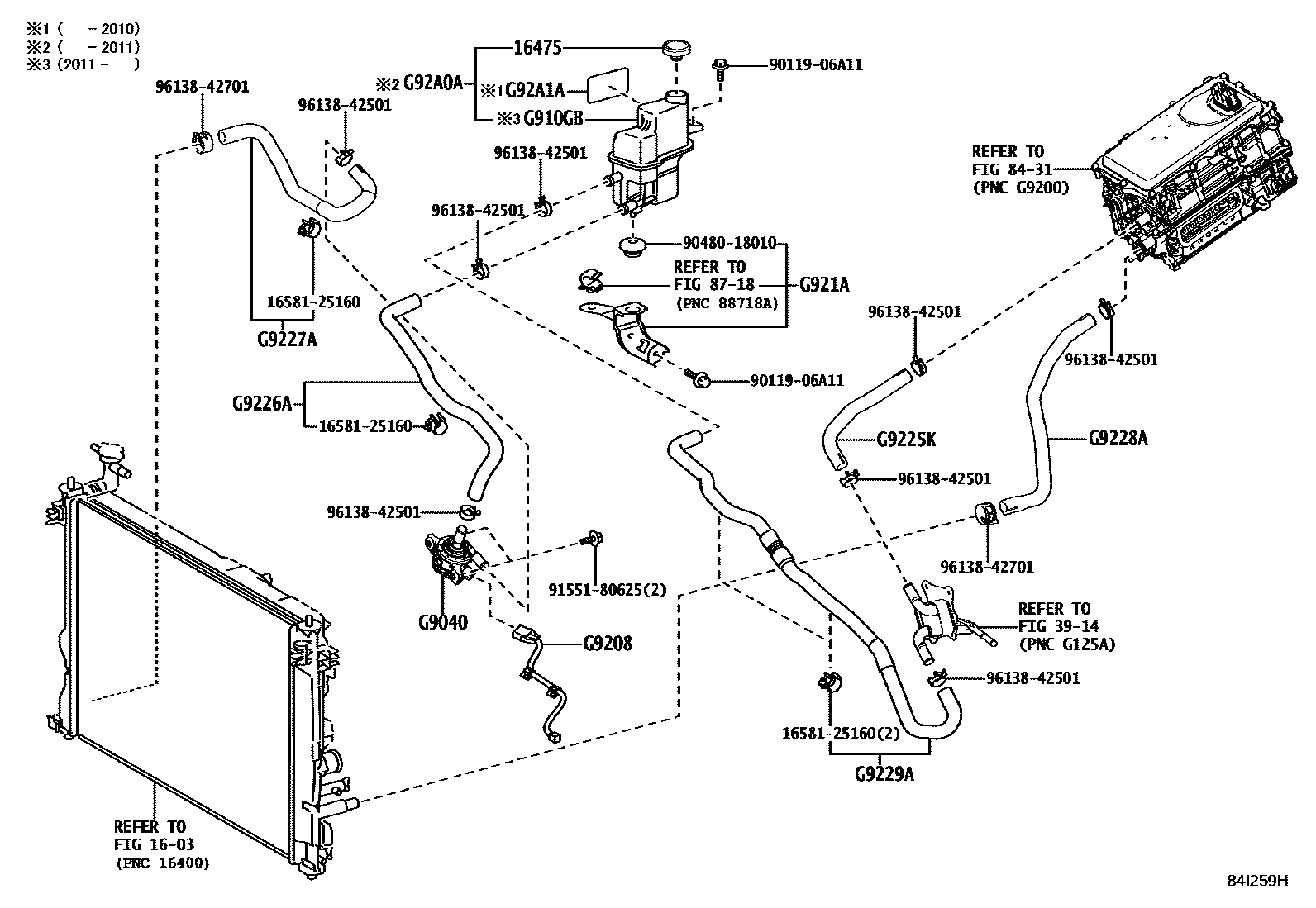

INVERTER COOLING

1603

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AXVH7#201709-202312

3914

8431

8718

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904028020iAXVH7#202208-202303

subG9040-48060

mainG904033050iAXVH7#201709-202208

mainG904048060iAXVH71..LHD..N202304-202312

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G33010iAXVH71..LHD..N202011-202312

G9208WIRE SUB-ASSY, INVERTER

mainG920833020iAXVH7#201709-202312

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H233010iAXVH7#201709-202310

mainG91H233011iAXVH71..LHD..N202311-202312

G9225KHOSE, INVERTER COOLING, NO.1

mainG922533080iAXVH71..LHD..N201709-202312

G9226AHOSE, INVERTER COOLING, NO.2

mainG922633021iAXVH71201709-201908

mainG922633022iAXVH7#201909-202312

G9227AHOSE, INVERTER COOLING, NO.3

mainG922733020iAXVH71201709-201908

subG9227-33021

mainG922733021iAXVH7#201909-202312

G9228AHOSE, INVERTER COOLING, NO.4

mainG922833030iAXVH7#201709-202312

G9229AHOSE, INVERTER COOLING, NO.5

mainG922933031iAXVH71201709-201908

mainG922933032iAXVH7#201909-202312

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H033010iAXVH7#201709-202011

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iAXVH7#201709-202010

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9048018010

main90480-18010

9155180625

main91551-80625

9613842501

main96138-42501

9613842701

main96138-42701

22 parts on this diagram · 1 diagram in section
