HEV INVERTER

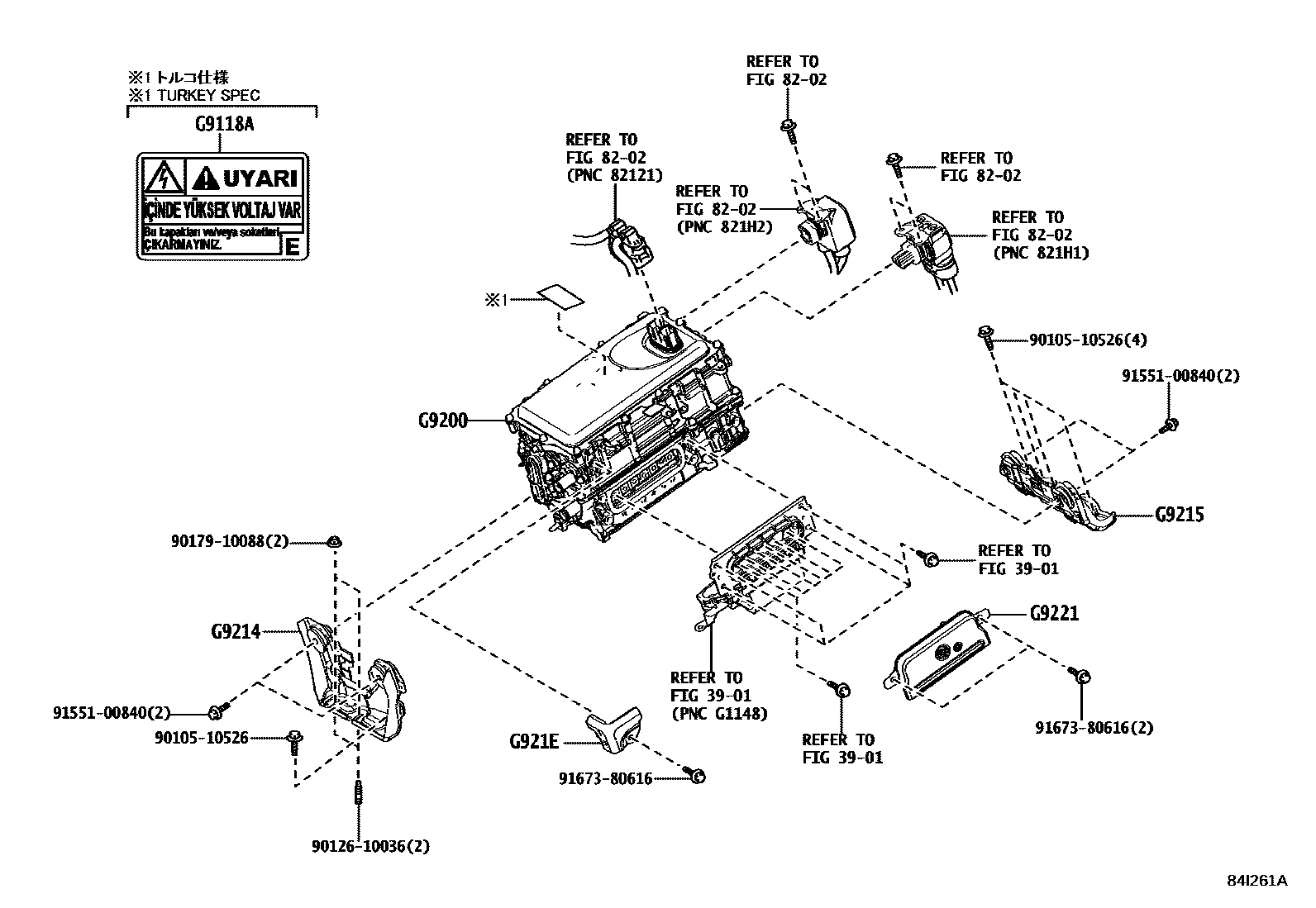

Parts diagram

3901

8202

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

G9200INVERTER ASSY, W/CONVERTER

mainG920039015i201709-202205

mainG920039016i202205-202312

G9214BRACKET, INVERTER, NO.1

mainG921433040i201709-202312

G9215BRACKET, INVERTER, NO.2

mainG921533040i201709-202312

G921EPROTECTOR, INVERTER

mainG921E47010i201709-202312

G9221COVER, INVERTER

mainG902247050i201709-202312

9010510526

main90105-10526

9012610036

main90126-10036

9017910088

main90179-10088

9155100840

main91551-00840

9167380616

main91673-80616

13 parts on this diagram · 3 diagrams in section
