ELECTRONIC FUEL INJECTION SYSTEM

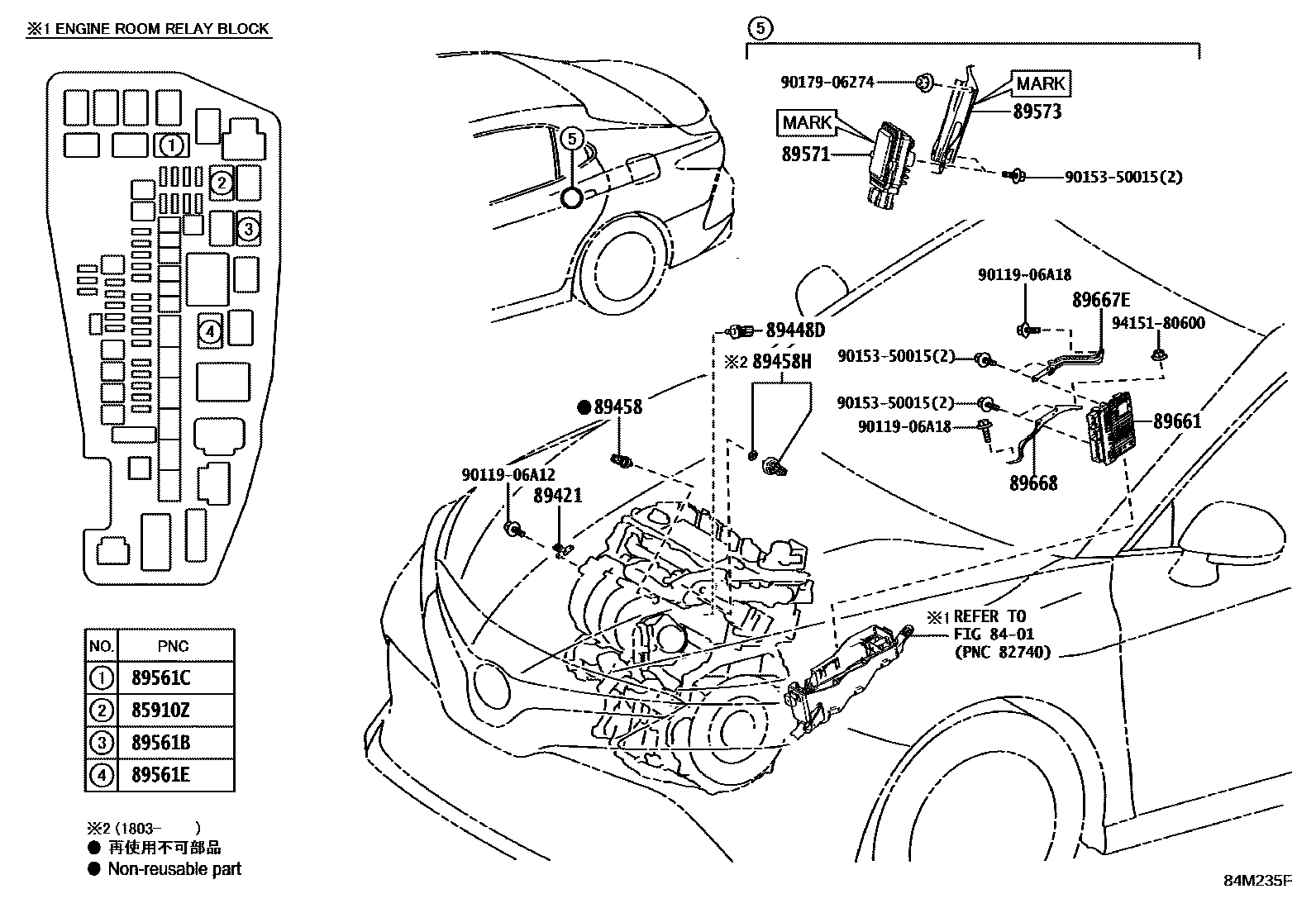

Parts diagram
8401
85910ZRELAY, INJECTION (FOR EFI)
main90987-02027i201709-202203
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-26030i201804-202104
main89421-33010i201709-202312
89448DSENSOR, OIL PRESSURE & TEMPERATURE
main89448-33010i201910-202312
89458SENSOR, FUEL PRESSURE
main89458-33030i201709-202312
89458HSENSOR, FUEL PRESSURE, NO.2
main89458-33041i201803-202301
main89458-33042i202302-202312
89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1
main90987-02027i201709-202312
89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2
main90987-02027i201709-202312
89561ERELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3
main90987-02027i201709-202312
89571COMPUTER, FUEL PUMP CONTROL
main89571-33030i201709-201911
P/N LABEL=8957133030
main89571-42010i201911-202312
P/N LABEL=8957142010
main89571-42010i202104-202203
main89571-58010i201709-202002
P/N LABEL=8957158010
main89571-58020i202002-202203
P/N LABEL=8957158020
89573BRACKET, FUEL PUMP CONTROL COMPUTER
main89573-33040i201709-201911
MARK K
main89573-33070i201911-202312
MARK C
main89573-33070i202104-202203
89661COMPUTER, ENGINE CONTROL
main89661-06Y90i201804-202104
DENSO
main89661-06Z40i201804-202104
DENSO
main89661-0X460i201804-201805
DENSO
sub89661-0X461
main89661-0X461i201806-201910
DENSO
sub89661-0X462
main89661-0X670i201910-202104
DENSO
main89661-0X760i202104-202203
DENSO
main89661-0X770i202104-202203
DENSO
main89661-0X780i202104-202203
DENSO
main89661-33L80i201709-201910
DENSO
main89661-33S90i201709-201712
DENSO,P/N LABEL=8966133S90
sub89661-33S91
main89661-33T20i201709-202101
DENSO
main89661-33U70i201709-201710
DENSO,P/N LABEL=8966133U70
sub89661-33T90
main89661-33U71i201709-201910
DENSO,P/N LABEL=8966133U71
sub89661-33U72
main89661-33Y30i201712-201807
DENSO,P/N LABEL=8966133Y30
sub89661-33Y31
main89661-33Y31i201808-201910
DENSO
sub89661-33Y32
main89661-33Y70i201902-201910
DENSO
main89661-33Z90i201910-202008
DENSO
main89661-3T860i201910-202008
DENSO,HONGKONG SPEC
main89661-3T860i201910-202008
DENSO
main89661-3TA00i201910-202008
DENSO
main89661-3TA50i201910-202101
DENSO
main89661-3TB50i202102
DENSO
main89661-3TB60i202211-202311
DENSO
sub89661-3TB61
main89661-3TB61i202312
DENSO,HONGKONG SPEC
main89661-3TB61i202312
DENSO,UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
main89661-3TB61i202312
DENSO,AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS)
main89661-3TB61i202312
DENSO
main89661-3TB70i202401-202402
DENSO
main89661-3TB80i202102-202401
DENSO
main89661-3TC70i202102
DENSO
main89661-3TC70i202102
DENSO,SINGAPORE SPEC
main89661-3TC80i202102-202312
DENSO
main89661-3TE30i202008-202101
DENSO
main89661-3TE60i202008-202208
DENSO
main89661-3TE60i202102-202208
DENSO,CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-3TE60i202102-202208
DENSO,LATIN SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
main89661-3TE90i202008-202208
DENSO
main89661-3TF00i202008-202104
DENSO
sub89661-3TF01
main89661-3TF00i202008-202101
DENSO,HONGKONG SPEC
sub89661-3TF01
main89661-3TF01i202105-202208
DENSO
main89661-3TF20i202102
DENSO
main89661-3TK90i202208
DENSO
main89661-3TL20i202208
DENSO
main89661-3TL30i202208
DENSO
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-33190i201709-202203
main89667-33200i201709-202312
main89667-33210i201709-202203
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-33240i201709-202203
main89668-33250i201709-202312
main89668-33260i201709-202203
main89668-33290i201709-202101
9011906A12
main90119-06A12
9011906A18
main90119-06A18
9015350015
main90153-50015
9017906274
main90179-06274
9415180600
main94151-80600

19 parts on this diagram · 6 diagrams in section
