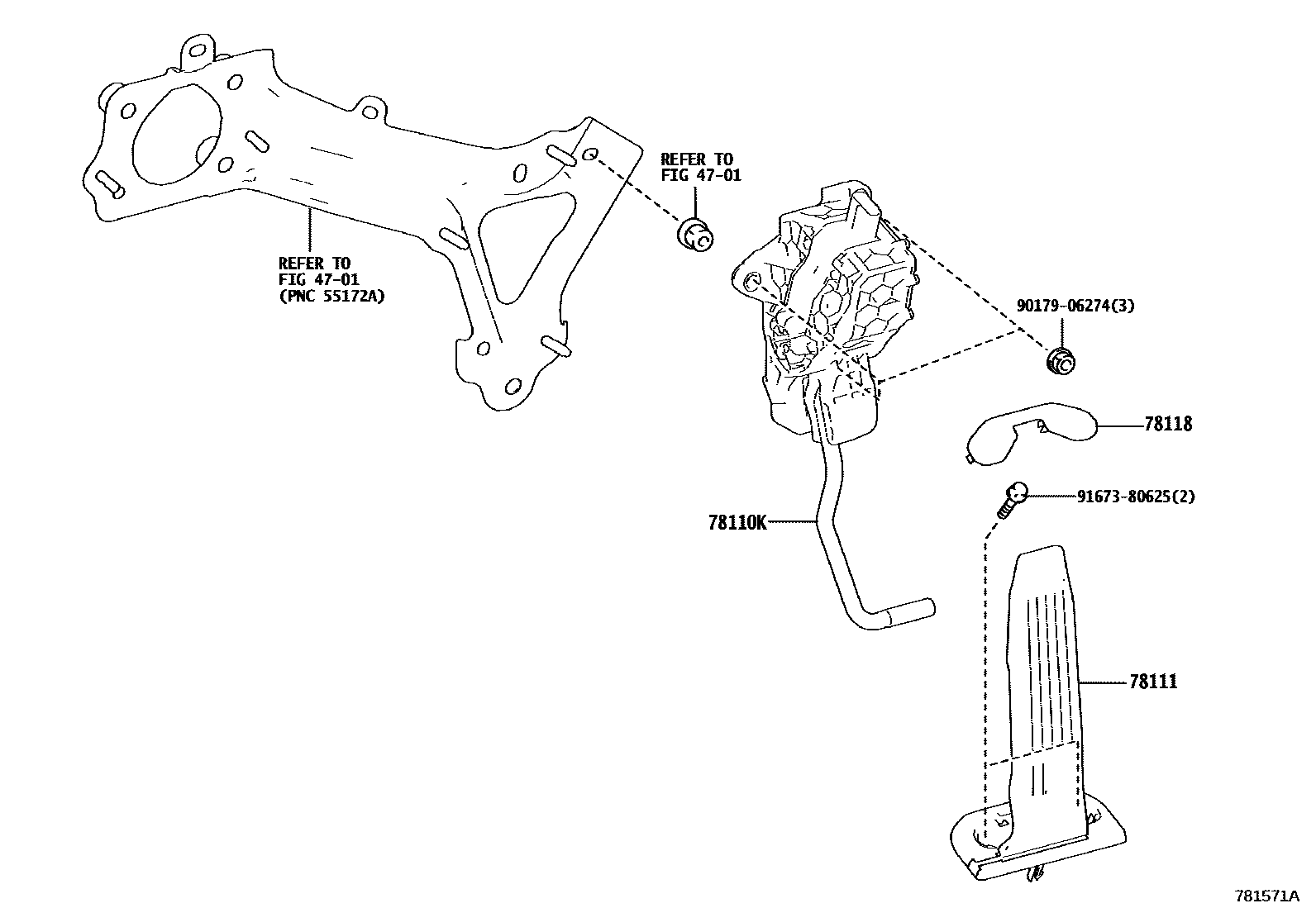

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06120iASV7#..RUS201804-201910

sub78110-06121

main78110-06121iASV7#..RUS201911-202009

sub78110-06122

main78110-06122iASV7#..RUS202010-202203

main78110-06130iGSV70..RUS201804-201910

sub78110-06131

main78110-06131iGSV70..RUS201911-202009

sub78110-06132

main78110-06132iGSV70..RUS202010-202203

main78110-33130iASV70,AXVH7#..LHD..N..EUR201709-202010

sub78110-33131

main78110-33131iAXVH70202011-202312

main78110-33140iAXVA70,GSV70..EUR201709-202010

sub78110-33141

main78110-33141iAXVA70,GSV70..EUR202011-202101

main78110-33150iASV70,AXVH71..RHD..N201709-202010

sub78110-33151

main78110-33151iAXVH71..RHD..(N,S)202011-202101

main78110-33161iAXVA70..RHD202102

main78110-33170iAXVH71..LHD..D201902-202010

sub78110-33171

main78110-33171iAXVH71..LHD..D202011-202101

main78110-33180iAXVH71..RHD..D201902-202010

sub78110-33181

main78110-33181iAXVH71..RHD..D202011-202101

78111PEDAL, ACCELERATOR

main78101-33060iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202203

sub78101-33061

main78101-33061iAXVH71..LHD..N202203-202312

78118PAD, ACCELERATOR PEDAL

main78117-33020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

9017906274

main90179-06274

9167380625

main91673-80625

6 parts on this diagram · 2 diagrams in section
