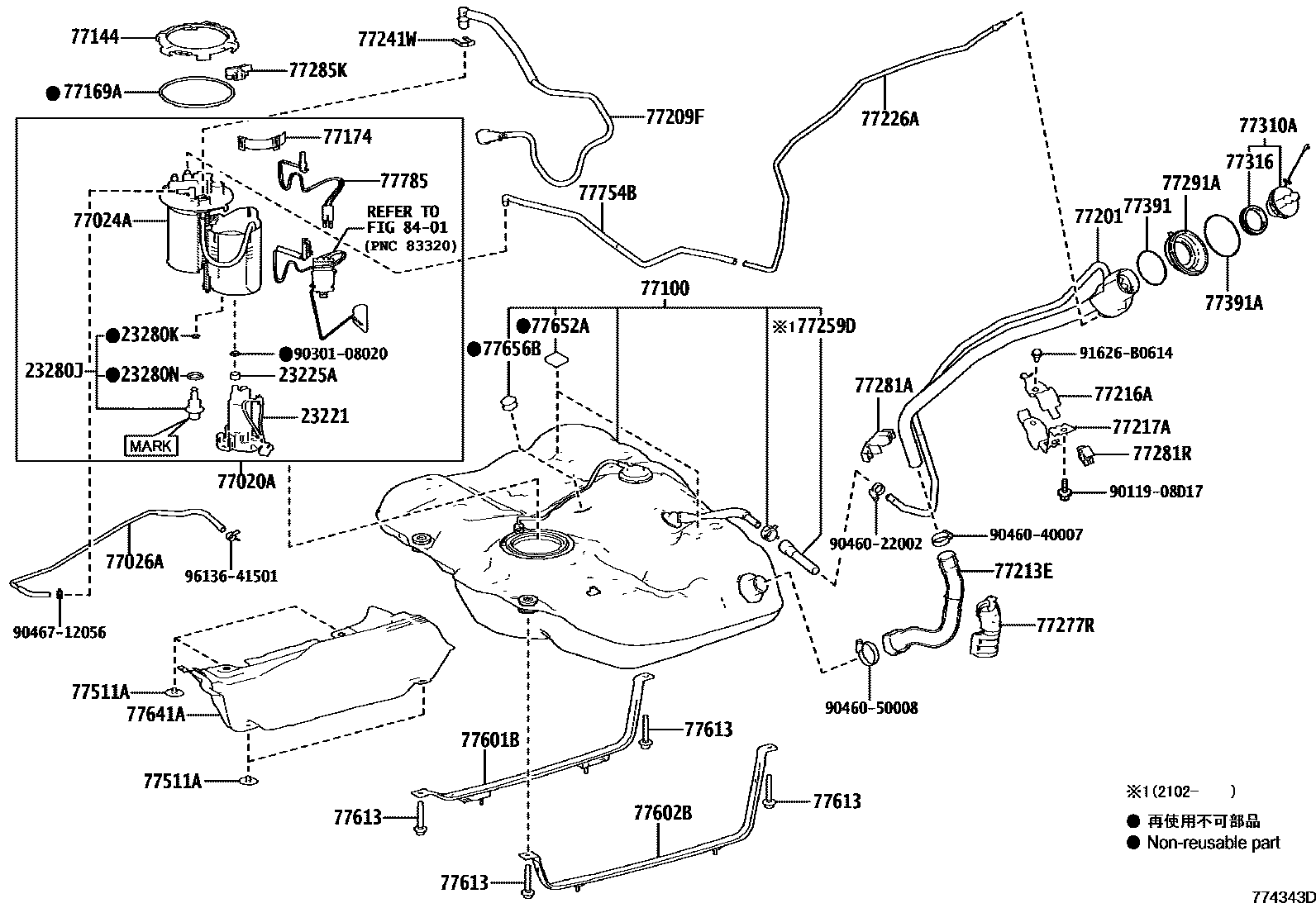

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
MARK 77020-33510
KOREA SPEC
23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
sub77020-33511
MARK 77020-33511
sub77020-33590
sub77020-33501
sub77020-33480
77024APLATE SUB-ASSY, FUEL SUCTION
MARK 77020-33510
sub77024-33430
MARK 77020-33511
sub77024-33321
sub77024-33260
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77100TANK ASSY, FUEL
(L)
(L)
HONGKONG SPEC
SINGAPORE SPEC
(J)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
SINGAPORE SPEC
KOREA SPEC&EXHAUST EMISSION CONTROL-USA ULEV50
HONGKONG SPEC
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
SINGAPORE SPEC
HONGKONG SPEC
77209FTUBE SUB-ASSY, FUEL TANK MAIN
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
sub77209-33151
SINGAPORE SPEC
HONGKONG SPEC
77213EHOSE, FUEL TANK TO FILLER PIPE
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
KOREA SPEC&EXHAUST EMISSION CONTROL-USA ULEV50
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
HONGKONG SPEC
SINGAPORE SPEC
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
KOREA SPEC&EXHAUST EMISSION CONTROL-USA ULEV50
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
HONGKONG SPEC
SINGAPORE SPEC
77226ATUBE, FUEL TANK BREATHER, NO.6
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
HONGKONG SPEC
SINGAPORE SPEC
77241WCLIP, TUBE JOINT
CHILE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
ARGENTINA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
LATIN SPEC&EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
77259DHOSE, FUEL, NO.1
(L)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
(J)
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77285KCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
HONGKONG SPEC
SINGAPORE SPEC
77316GASKET, FUEL TANK CAP
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
AZERBAIJAN,ARMENIA,GEORGIA SPEC&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
HONGKONG SPEC
SINGAPORE SPEC
KOREA SPEC&EXHAUST EMISSION CONTROL-USA ULEV50
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77511ABRACKET, FUEL TANK
EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
UKRAINE SPEC
HONGKONG SPEC
EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)
SINGAPORE SPEC
EXHAUST EMISSION CONTROL-EURO6,WITHOUT(ON BOARD DIAGNOSIS)
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
SINGAPORE SPEC
HONGKONG SPEC
UKRAINE SPEC
77652ACUSHION, FUEL TANK, NO.2
(L)
KOREA SPEC&EXHAUST EMISSION CONTROL-USA ULEV50,(J)
(J)
77656BCUSHION, FUEL TANK, NO.6
(L)
(J)
KOREA SPEC&EXHAUST EMISSION CONTROL-USA ULEV50,(J)
77754BHOSE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
8401
9011908D17
main90119-08D17
9030108020
main90301-08020
9046022002
main90460-22002
9046040007
main90460-40007
9046050008
main90460-50008
9046712056
main90467-12056
91626B0614
main91626-B0614
9613641501
main96136-41501
48 parts on this diagram · 17 diagrams in section
