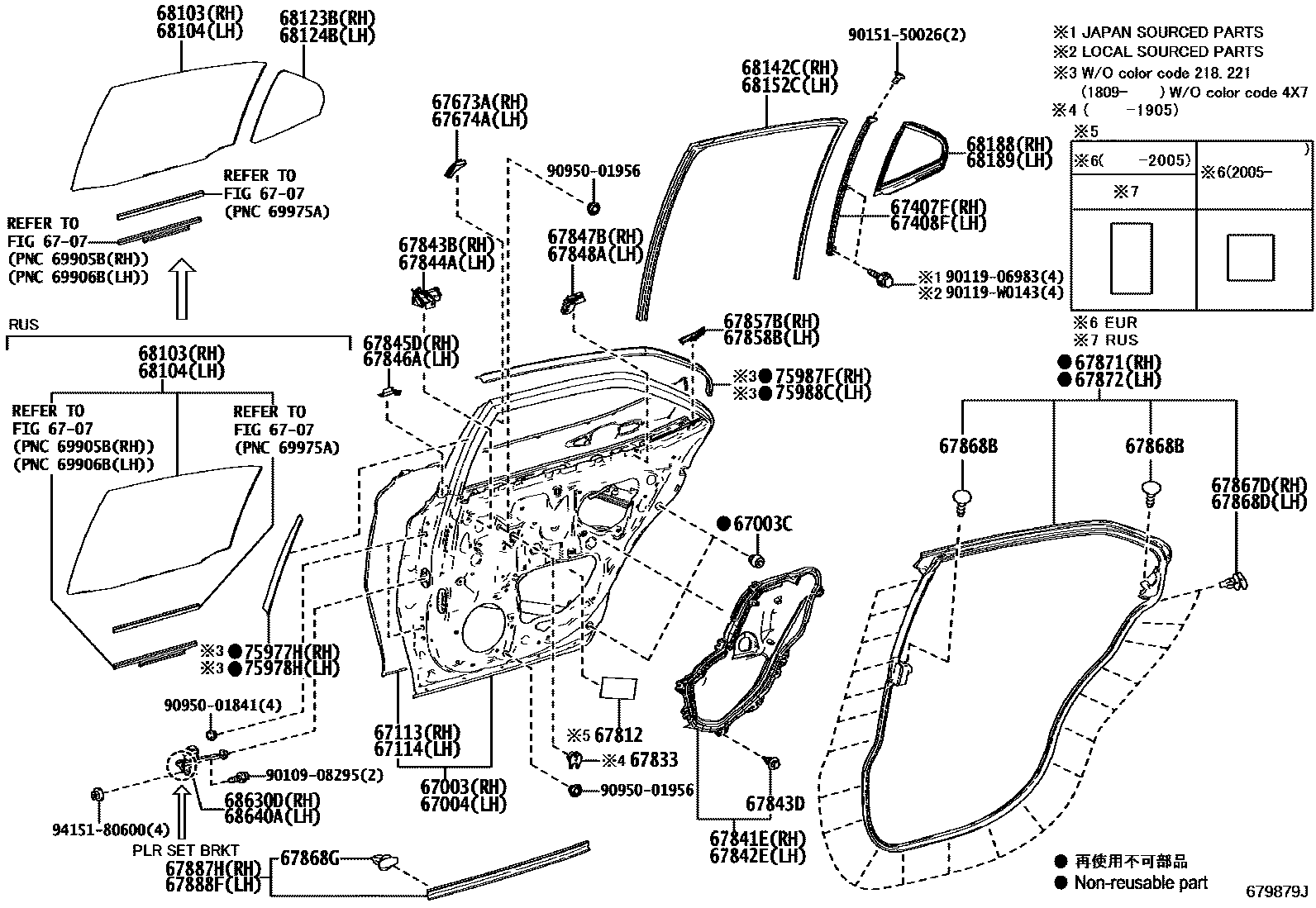

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-06320iAXVA70,GSV70,MXVA71..RUS201804-202203

sub67003-33270

main67003-06330iASV70..RUS201804-202104

TMR SALE SPECIFICATIONS 5

sub67003-33280

main67003-33270iAXVH71..D,S;AXVA70,AXVH70,GSV70..JPP202102

SINGAPORE SPEC

main67003-33270iAXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR201709-202101

main67003-33280iAXVH71..LHD..D202102

EU SALE SPECIFICATIONS 6

main67003-33280iGSV70..EUR201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main67003-33280iGSV70..EUR201709-202101

BRAZIL SPEC

main67003-33280iGSV70..EUR201709-202101

UKR SALE SPECIFICATIONS 5

main67003-33280iAXVH71..LHD..N202102-202312

67003CCUSHION, REAR DOOR PANEL

main90541-09143iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-06310iAXVA70,GSV70,MXVA71..RUS201804-202203

sub67004-33260

main67004-06320iASV70..RUS201804-202104

TMR SALE SPECIFICATIONS 5

sub67004-33270

main67004-33260iAXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR201709-202101

main67004-33260iAXVH71..D,S;AXVA70,AXVH70,GSV70..JPP202102

SINGAPORE SPEC

main67004-33270iGSV70..EUR201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main67004-33270iGSV70..EUR201709-202101

BRAZIL SPEC

main67004-33270iGSV70..EUR201709-202101

UKR SALE SPECIFICATIONS 5

main67004-33270iAXVH71..LHD..N202102-202312

main67004-33270iAXVH71..RHD..N202102

EU SALE SPECIFICATIONS 6

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-06200iASV7#,GSV70..RUS201804-202203

sub67113-33110

main67113-33110iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67114PANEL, REAR DOOR, OUTER LH

main67114-06200iAXVA70,GSV70,MXVA71..RUS201804-202203

sub67114-33110

main67114-33110iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-33130iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-33130iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67673AGARNISH, REAR DOOR FRAME, RH

main67673-33150iASV7#,GSV70..RUS201709-202312

67674AGARNISH, REAR DOOR FRAME, LH

main67674-33150iAXVH71..LHD..N201709-202312

67812PAD, REAR DOOR SILENCER

main67811-12180iASV70,AXVA70,AXVH7#,GSV70..EUR202005-202312

main67811-33040iAXVA70,GSV70,MXVA71..RUS201709-202203

67833COVER, REAR DOOR SERVICE HOLE

main67833-47010iASV7#,AXVA70,AXVH71,GSV70201709-201905

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-33140iASV7#,GSV70..RUS201709-202312

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-33140iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-33050iASV7#,AXVA70,AXVH71,GSV70201709-201810

sub67843-33051

main67843-33051iASV70,AXVA70,AXVH7#,GSV70..EUR201811-202312

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-09206iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-33050iASV7#,AXVA70,AXVH71,GSV70201709-201810

sub67844-33051

main67844-33051iASV70,AXVA70,AXVH7#,GSV70..EUR201811-202312

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-33020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-33030iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-33030iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-33020iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-33070iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-33070iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP201709-202312

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iASV7#,GSV70..RUS201709-202312

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67868-30030iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67868GRETAINER, DOOR WEATHERSTRIP

main67867-52030iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67871WEATHERSTRIP, REAR DOOR, RH

main67871-33120iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67872WEATHERSTRIP, REAR DOOR, LH

main67872-33120iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-33050iAXVH71..LHD..N201709-202312

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67887-33050iAXVA70,GSV70,MXVA71..RUS201709-202312

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-06320iASV7#,GSV70..RUS201804-202203

main68113-33290iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4

main68113-33290iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

main68113-33290iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6

main68113-33300iAXVH71..LHD..D202208

EU SALE SPECIFICATIONS 2

main68113-33300iAXVH71..D201902-202101

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-06310iAXVA70,GSV70,MXVA71..RUS201804-202203

main68114-33290iAXVH71..RHD..D201709-202312

main68114-33290iAXVH71..LHD..D;AXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4

main68114-33290iAXVH71..LHD..D;AXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6

main68114-33300iAXVH71..D201902-202101

main68114-33300iAXVH71..RHD..D202208

EU SALE SPECIFICATIONS 2

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-06270iAXVA70,GSV70,MXVA71..RUS201804-202203

main68123-33220iAXVH71..LHD..D202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4

main68123-33220iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

main68123-33220iAXVH71..LHD..D;AXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6

main68123-33230iAXVH71..RHD..D202208

EU SALE SPECIFICATIONS 2

main68123-33230iAXVH71..D201902-202101

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-06270iASV7#,GSV70..RUS201804-202203

main68124-33220iASV70,AXVA70,AXVH7#,GSV70..(G,N,S)..EUR201709-202312

main68124-33220iAXVH71..LHD..D;AXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 4

main68124-33220iAXVH71..LHD..D;AXVH71..RHD..(N,S);AXVA70,AXVH70,GSV70..JPP202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC&EU SALE SPECIFICATIONS 6

main68124-33230iAXVH71..D201902-202101

main68124-33230iAXVH71..RHD..D202208

EU SALE SPECIFICATIONS 2

68142CRUN, REAR DOOR GLASS, RH

main68142-33130iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202208

sub68142-33131

main68142-33131iAXVH71..LHD..N202209-202312

68152CRUN, REAR DOOR GLASS, LH

main68152-33130iAXVA70,GSV70,MXVA71..RUS201709-202208

sub68152-33131

main68152-33131iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP202209-202312

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-33080iASV7#,GSV70..RUS201709-202105

sub68188-33100

main68188-33100iAXVA70,GSV70,MXVA71..RUS202106-202312

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-33080iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202105

sub68189-33100

main68189-33100iAXVA70,GSV70,MXVA71..RUS202106-202312

68630DCHECK ASSY, REAR DOOR, RH

main68630-33110iASV70,AXVA70,AXVH71,GSV70201709-201712

PLR SET BRKT:BLACK

sub68630-33111

main68630-33111iASV70,AXVA70,AXVH71,GSV70201801-201802

PLR SET BRKT:BLACK

main68630-33112iASV7#,GSV70..RUS201802-202312

PLR SET BRKT:SILVER

68640ACHECK ASSY, REAR DOOR, LH

main68630-33110iASV70,AXVA70,AXVH71,GSV70201709-201712

PLR SET BRKT:BLACK

sub68630-33111

main68630-33111iASV70,AXVA70,AXVH71,GSV70201801-201802

PLR SET BRKT:BLACK

main68630-33112iASV70,AXVA70,AXVH7#,GSV70..EUR201802-202312

PLR SET BRKT:SILVER

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-33040iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

0 OR 1PIECE,REF.ILL.

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-33040iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

0 OR 1PIECE,REF.ILL.

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-33080iAXVH71..D;ASV70,AXVA70,AXVH70,GSV70..EUR201709-202203

0 OR 1PIECE,REF.ILL.

main75987-33080iAXVH71..D,S;AXVA70,AXVH70,GSV70..JPP202102

SINGAPORE SPEC,0 OR 1PIECE,REF.ILL.

main75987-33090iAXVH71..RHD..N201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC,0 OR 1PIECE,REF.ILL.

main75987-33090iAXVH71..N201709-202312

0 OR 1PIECE,REF.ILL.

main75987-33090iAXVH71..N201709-202101

BRAZIL SPEC,0 OR 1PIECE,REF.ILL.

main75987-33090iAXVH71..N201709-202101

UKR SALE SPECIFICATIONS 5,0 OR 1PIECE,REF.ILL.

main75987-33090iAXVH71..LHD..D202102

EU SALE SPECIFICATIONS 6,0 OR 1PIECE,REF.ILL.

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-33080iAXVH71..RHD..N201709-202203

0 OR 1PIECE,REF.ILL.

main75988-33080iAXVH71..D,S;AXVA70,AXVH70,GSV70..JPP202102

SINGAPORE SPEC,0 OR 1PIECE,REF.ILL.

main75988-33090iAXVH71..N201709-202101

AZERBAIJAN,ARMENIA,GEORGIA SPEC,0 OR 1PIECE,REF.ILL.

main75988-33090iAXVH71..N201709-202312

0 OR 1PIECE,REF.ILL.

main75988-33090iAXVA70..JPP..LHD202102

EU SALE SPECIFICATIONS 6,0 OR 1PIECE,REF.ILL.

main75988-33090iAXVA70..JPP..LHD201709-202101

UKR SALE SPECIFICATIONS 5,0 OR 1PIECE,REF.ILL.

main75988-33090iASV70..LHD..EUR201709-202101

BRAZIL SPEC,0 OR 1PIECE,REF.ILL.

9010908295

main90109-08295

9011906983

main90119-06983

90119W0143

main90119-W0143

9015150026

main90151-50026

9095001841

main90950-01841

9095001956

main90950-01956

9415180600

main94151-80600

52 parts on this diagram · 2 diagrams in section
