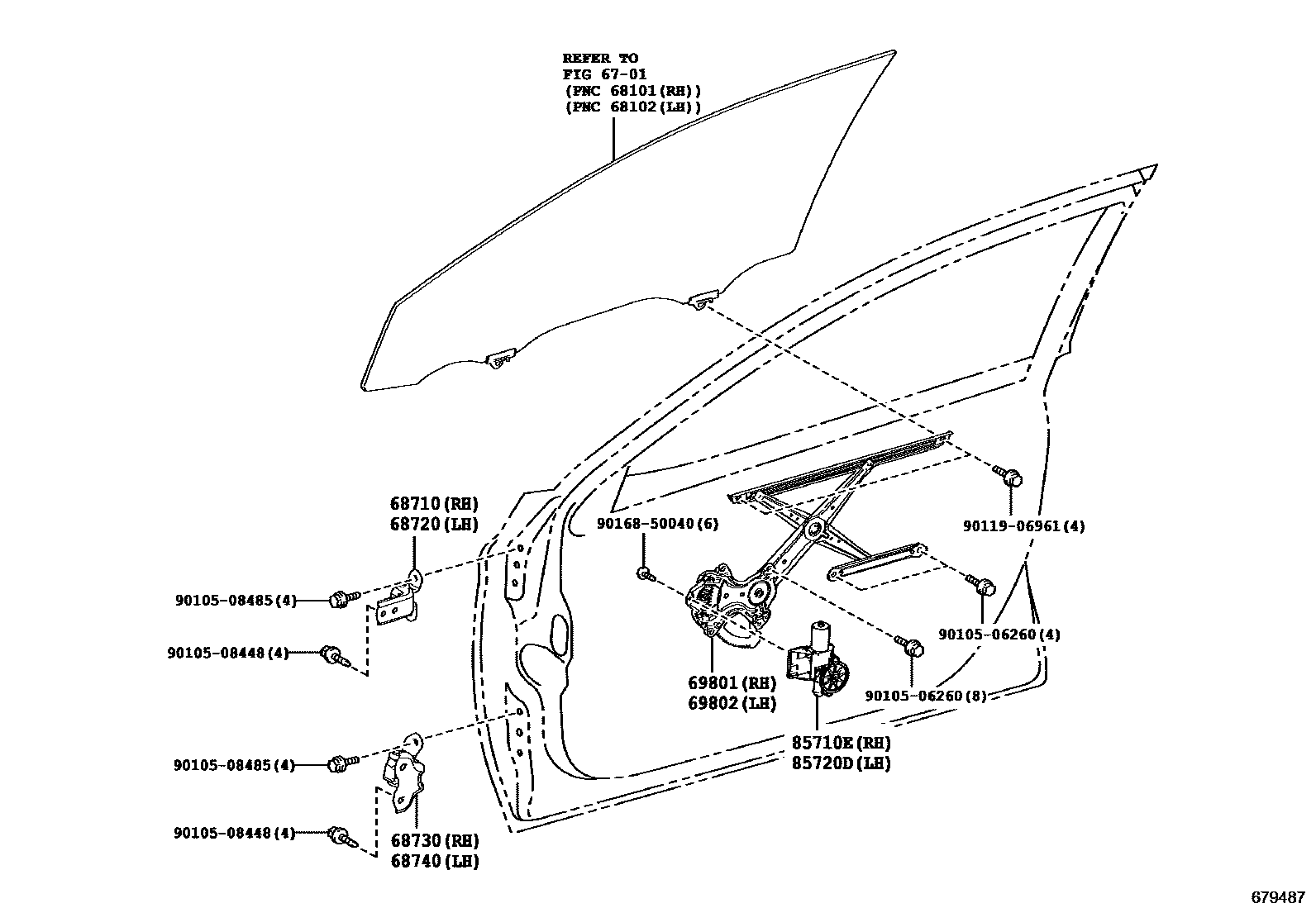

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D091iASV7#,GSV70..RUS201804-202104

W/O(CCC MARK)

sub68710-02060

main68710-12151iAXVA70,GSV70,MXVA71..RUS201709-202312

main68710-12151iASV7#,GSV70..RUS201804-202104

W(CCC MARK)

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D091iASV7#,GSV70..RUS201804-202104

W/O(CCC MARK)

sub68720-02060

main68720-12151iAXVA70,GSV70,MXVA71..RUS201709-202312

main68720-12151iASV7#,GSV70..RUS201804-202104

W(CCC MARK)

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D071iASV7#,GSV70..RUS201804-202104

W/O(CCC MARK)

sub68730-02050

main68730-12120iASV7#,GSV70..RUS201804-202104

W(CCC MARK)

main68730-12120iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D071iASV7#,GSV70..RUS201804-202104

W/O(CCC MARK)

sub68740-02050

main68740-12120iAXVH71..LHD..N201709-202312

main68740-12120iASV7#,GSV70..RUS201804-202104

W(CCC MARK)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52140iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52130iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33240iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33290iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
