MAT & CARPET

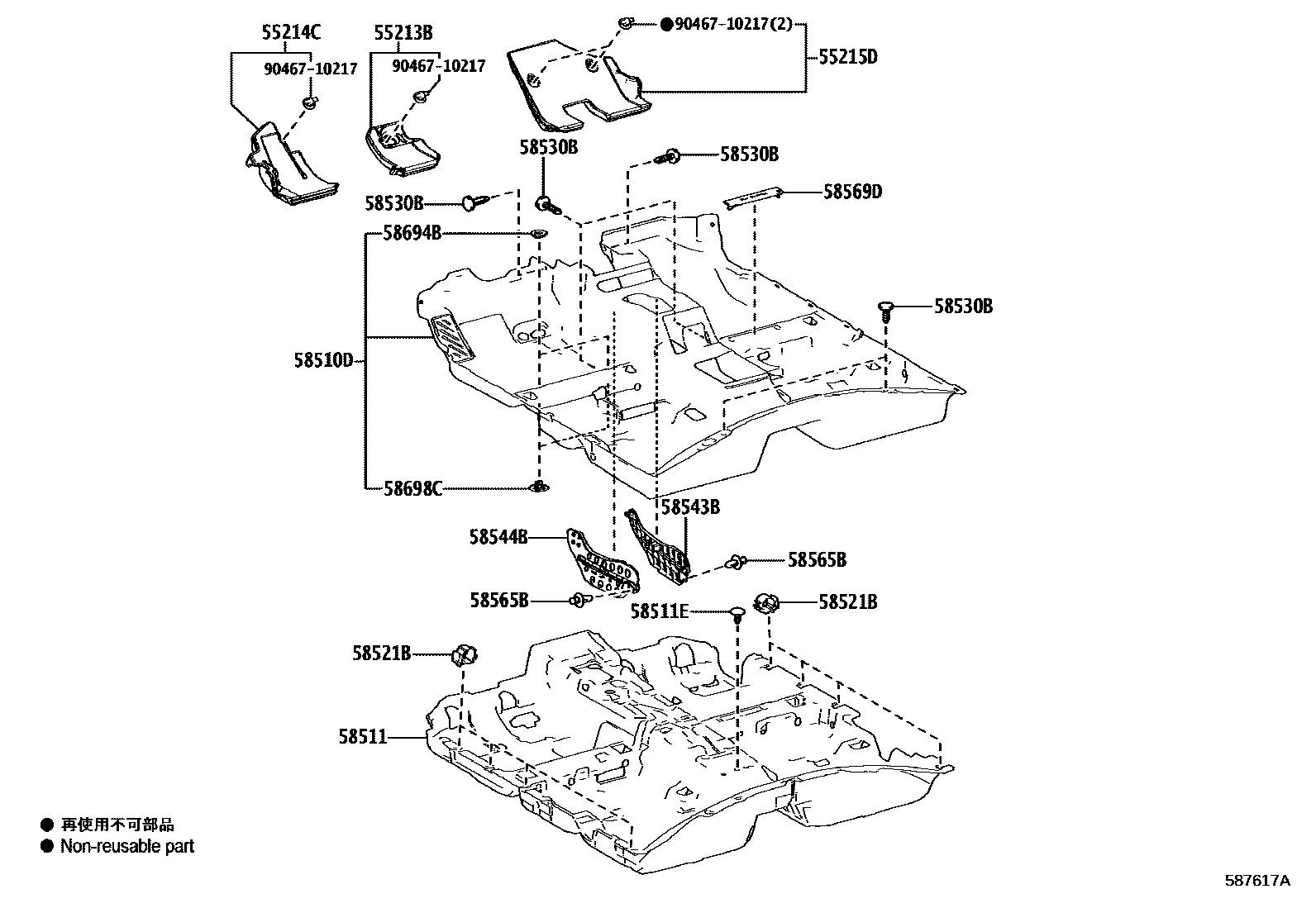

Parts diagram
55213BPAD, DASH PANEL INSULATOR, NO.1
main55213-06230i201804-201902
main55213-06231i201902-202203
main55213-33180i201709-201807
main55213-33181i201807-202312
main55213-33190i201709-201907
W/O PART NO. MARK
main55213-33191i202102
main55213-33191i201907-202101
W/PART NUMBER MARK
55214CPAD, DASH PANEL INSULATOR, NO.2
main55214-06200i201804-202203
main55214-33110i201709-202312
main55214-33120i201709-202101
55215DPAD, DASH PANEL INSULATOR, NO.3
main55215-06090i201804-202203
main55215-33040i201709-202312
main55215-33050i201709-202101
58510DCARPET ASSY, FLOOR, FRONT
main58510-06800-B2i201804-202003
NEUTRAL WARM GRAY,TRIM4#
sub58510-33880
main58510-06800-C1i201804-202003
BLACK,TRIM2#
sub58510-33880
main58510-06801-B2i202003-202104
NEUTRAL WARM GRAY,TRIM4#
main58510-06801-B2i202104-202203
NEUTRAL WARM GRAY,TRIM40,(L)
main58510-06801-C1i202104-202203
BLACK,TRIM2#,41,(L)
main58510-06801-C1i202003-202104
BLACK,TRIM2#
main58510-33850-B2i201709-202101
NEUTRAL WARM GRAY,TRIM4#
main58510-33850-C1i201709-202101
BLACK,TRIM2#
main58510-33860-B2i202102
HONGKONG SPEC,NEUTRAL WARM GRAY,TRIM4#
main58510-33860-B2i202102
NEUTRAL WARM GRAY,TRIM4#
main58510-33860-C1i202102
BLACK,TRIM2#
main58510-33860-C1i202102
HONGKONG SPEC,BLACK,TRIM2#
main58510-33870-B2i201709-202101
NEUTRAL WARM GRAY,TRIM4#
main58510-33870-C1i201709-202101
BLACK,TRIM2#
main58510-33880-B2i201709-202101
NEUTRAL WARM GRAY,TRIM4#
main58510-33880-C1i201709-202101
BLACK,TRIM2#
main58510-33890-B2i201709-202101
NEUTRAL WARM GRAY,TRIM4#
main58510-33890-C1i201709-202101
BLACK,TRIM2#
main58510-33A00-B2i201709-202101
NEUTRAL WARM GRAY,TRIM4#
main58510-33A00-C1i201709-202101
BLACK,TRIM2#
main58510-33A00-C1i202102
BLACK,TRIM2#,3#
main58510-33A20-B1i202008-202312
NEUTRAL WARM GRAY,TRIM4#
main58510-33A20-C0i202008-202312
BLACK,TRIM2#
main58510-33A20-C0i202102
BLACK,TRIM2#,3#
58511MAT, FLOOR, FRONT
main58511-06130i201804-201902
sub58511-33012
main58511-06131i201902-202104
sub58511-33012
main58511-06131i202104-202203
(L)
sub58511-33012
main58511-33010i201709-201806
sub58511-33011
main58511-33011i201807-201906
sub58511-33012
main58511-33012i201907-202101
main58511-33020i201709-201806
sub58511-33021
main58511-33021i201807-201906
sub58511-33022
main58511-33022i201907-202312
58511ECLIP(FOR FRONT FLOOR MAT)
main90467-07042-C4i201709-202312
BLACK
sub90467-07042
sub90467-06175
58521BHOOK, FLOOR CARPET
main58521-33060i201709-202312
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-07049-23i201709-201803
BLACK,TRIM2#
sub90467-07049
main90467-07049-23i201709-201803
BLACK
sub90467-07049
main90467-07161-C0i201804-202203
BLACK
sub90467-07161
main90467-07161-C1i201804-202312
BLACK
sub90467-07161
58543BBRACKET, FLOOR CARPET, RH
main58543-33110i201709-202312
main58543-33120i201709-202101
58544BBRACKET, FLOOR CARPET, LH
main58544-33110i201709-202312
main58544-33120i201709-202101
58565BCLIP
main90467-07076-C7i201709-202312
BLACK
sub90467-07041
sub90467-07076
sub90467-A0016
58569DCOVER, FRONT FLOOR CAUTION PLATE
main58569-33030-B0i201709-201710
NEUTRAL WARM GRAY,TRIM1#,40
main58569-33030-B0i201709-201710
NEUTRAL WARM GRAY,TRIM40
main58569-33030-C0i201709-201710
BLACK,TRIM2#,40
main58569-33030-C0i201710-202312
BLACK,TRIM2#,4#
main58569-33030-C0i201910-202101
BLACK,TRIM2#
main58569-33030-C0i202102
BLACK,TRIM2#,3#
58694BPLATE, MAT SET, UPPER
main58694-33010i201709-202312
58698CPLATE, MAT SET, LOWER
main58698-33010i201709-202312
9046710217
main90467-10217

15 parts on this diagram · 6 diagrams in section
