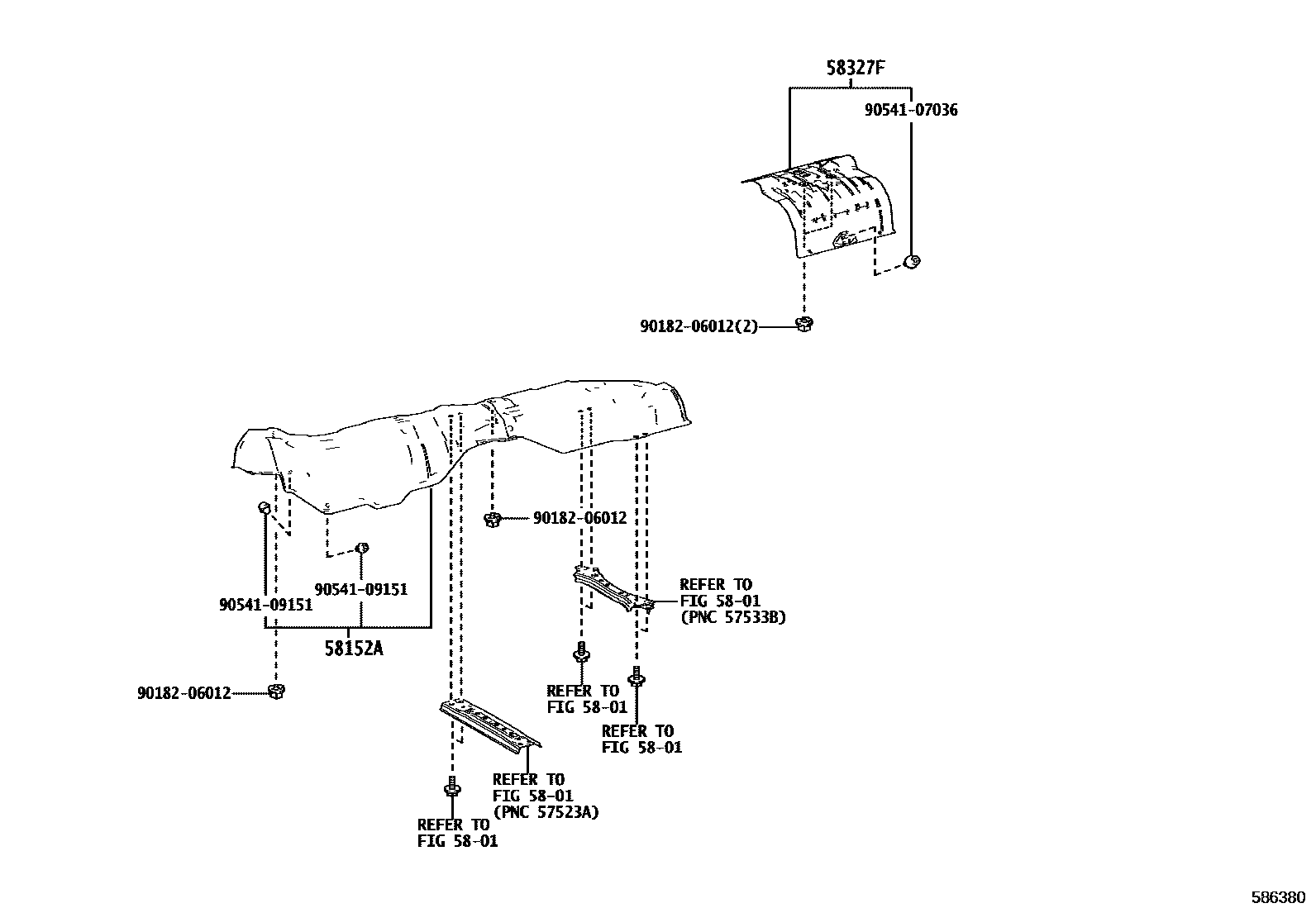

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1

5801

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-33080iASV70,AXVA70,AXVH7#,GSV70..EUR¥6,800201709-202312

main58152-33080iAXVA70,GSV70,MXVA71..RUS¥6,800202110-202203

(J)

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-06170iAXVA70,GSV70,MXVA71..RUS201804-202203

main58327-33080iASV70,AXVA70,GSV70..EUR¥2,600201709-202101

9018206012

main90182-06012¥60

9054107036

main90541-07036¥110

9054109151

main90541-09151¥240

6 parts on this diagram · 4 diagrams in section
