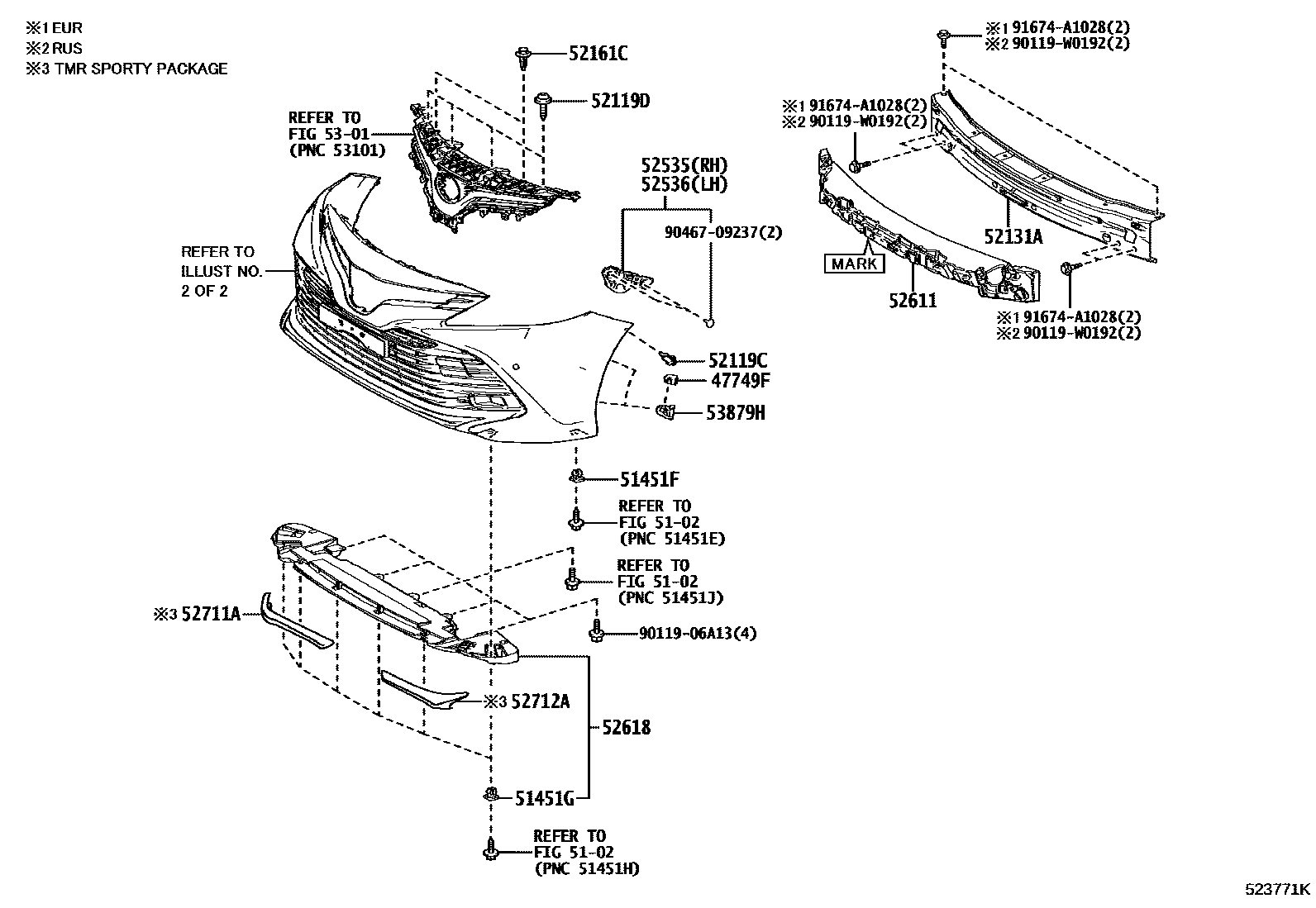

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0005 1 0006 1 0007 1 0009 1 0010 1W(INTELLIGENT CLEARANCE SONAR0011 1 0012 1 0013 1

47749FCLIP, PIN HOLD

main47749-33030×4iAXVA70,GSV70,MXVA71..RUS202102-202203

5102

51451FGROMMET, NO.1

main90189-06237×2iASV7#,GSV70..RUS201709-202104

51451GGROMMET, NO.2

main90189-06237×6iAXVH71..RHD;AXVH71..LHD..D;AXVA70,AXVH70,GSV70..JPP202102

52119CCLIP, FRONT BUMPER COVER

main90467-05170×2iASV7#,GSV70..RUS201709-202104

52119DSCREW, NO.1

main90167-50063×4iASV70,AXVA70,AXVH7#,GSV70..(D,G,N)..EUR201709-202101

52131AREINFORCEMENT, FRONT BUMPER

main52131-33180iASV7#,GSV70..RUS201709-202104

main52131-33181iAXVH71..LHD..N202304-202312

52161CPIECE, FRONT BUMPER

main52161-16010×2iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202101

sub52161-0K040

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-33060iAXVH71..LHD..N202102-202312

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-33060iAXVH71..LHD..N202102-202312

52611ABSORBER, FRONT BUMPER ENERGY

main52611-06540iASV7#,GSV70..RUS202001-202104

MARK 52611-06540

main52611-06580iAXVA70,GSV70,MXVA71..RUS202104-202203

main52611-33300iASV7#,GSV70..RUS201804-202001

MARK 52611-33300

main52611-33360iAXVH71..LHD..N202102-202312

52618ABSORBER, FRONT BUMPER, LOWER

main52618-33060iAXVA70..S201709-202101

main52618-33110iAXVA70,GSV70,MXVA71..RUS202102-202203

52711AGARNISH, FRONT BUMPER

main52711-WY010iASV70..RUS202001-202104

TMR SPORTY PACKAGE

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-06240iMXVA71202104-202203

(L)

main52712-33040iAXVA70..S201910-202101

main52712-33070iAXVH71..LHD..D;AXVA70..JPP..LHD202102

SINGAPORE SPEC

main52712-33080supersedes 52712-33080iAXVH71..LHD..N202102-202312

main52712-33100iAXVH7#..S202102

main52712-06260supersedes 52712-33070iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS C6,(L)

main52712-33090supersedes 52712-33120iAXVA70..RUS202104-202203

TMR SALE SPECIFICATIONS B5&AUDIO-9INCH & *DA & 9SPEAKAR & JBL,(J)

52712AGARNISH, FRONT BUMPER, LH

main52712-WY010iASV70..RUS202001-202104

TMR SPORTY PACKAGE

5301

53879HRETAINER, FRONT FENDER LINER

main53879-33030×4iASV7#,GSV70..RUS201709-202104

9011906A13

main90119-06A13

90119W0192

main90119-W0192

9046709237

main90467-09237

91674A1028

main91674-A1028

21 parts on this diagram · 10 diagrams in section
