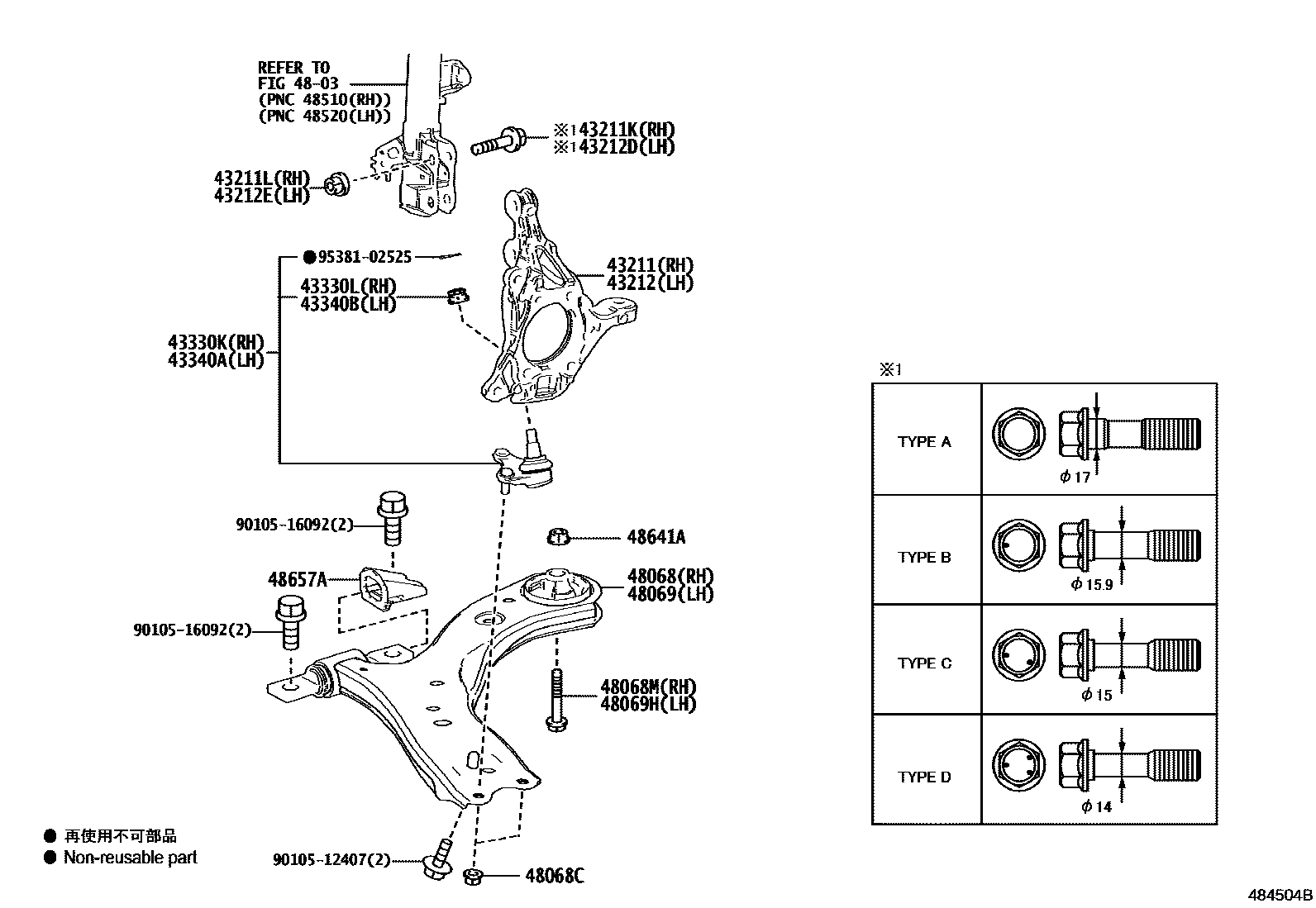

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-33120iASV70,AXVA70,AXVH7#..(N,S)..EUR201709-202312

main43211-33120iAXVA70,AXVH70..JPP;AXVH71..RHD..(N,S)202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main43211-33120iAXVH71..LHD..D202102

UKRAINE SPEC

main43211-33130iAXVH71,GSV70..(D,G)..EUR201709-202203

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17012iASV70,AXVA70,AXVH71,GSV70..EUR201709-201809

OD=17

main90105-17013iAXVA70,GSV70,MXVA71..RUS201709-202312

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iAXVA70,GSV70,MXVA71..RUS201709-202312

OD=15,TYPE C:REFER ILLUST.

main90105-17015iAXVH71..LHD..N201709-202312

OD=14,TYPE D:REFER ILLUST.

main90105-17020iASV7#,GSV70..RUS201804-201907

OD=17,TYPE A:REFER ILLUST.

main90105-17021iASV7#,GSV70..RUS201809-202312

OD=17,TYPE A:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

43212KNUCKLE, STEERING, LH

main43212-33120iAXVH71..LHD..D202102

UKRAINE SPEC

main43212-33120iASV70,AXVA70,AXVH7#..(N,S)..EUR201709-202312

main43212-33120iAXVA70,AXVH70..JPP;AXVH71..RHD..(N,S)202102

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main43212-33130iAXVH71,GSV70..(D,G)..EUR201709-202203

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17012iASV70,AXVA70,AXVH71,GSV70..EUR201709-201809

OD=17

main90105-17013iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

OD=15,TYPE C:REFER ILLUST.

main90105-17015iASV7#,GSV70..RUS201709-202312

OD=14,TYPE D:REFER ILLUST.

main90105-17020iASV7#,GSV70..RUS201804-201907

OD=17,TYPE A:REFER ILLUST.

main90105-17021iAXVA70,GSV70,MXVA71..RUS201809-202312

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19245iASV7#,GSV70..RUS201709-201805

sub43330-19275

main43330-19275iASV70,AXVA70,AXVH7#,GSV70..EUR201805-202312

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-19245iASV70,AXVA70,AXVH71,GSV70201709-201805

sub43330-19275

main43330-19275iASV70,AXVA70,AXVH7#,GSV70..EUR201805-202312

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAXVA70,GSV70,MXVA71..RUS201709-202312

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-33090iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48068CNUT(FOR FRONT SUSPENSION LOWER ARM)

main90178-12019iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-33090iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iASV70,AXVA70,AXVH7#,GSV70..EUR201709-202312

9010512407

main90105-12407

9010516092

main90105-16092

9538102525

main95381-02525

21 parts on this diagram · 1 diagram in section
